RXT-300 SmartWireless™
RXT-300 Wireless IM Rev. 2.0 Page 2 of 41

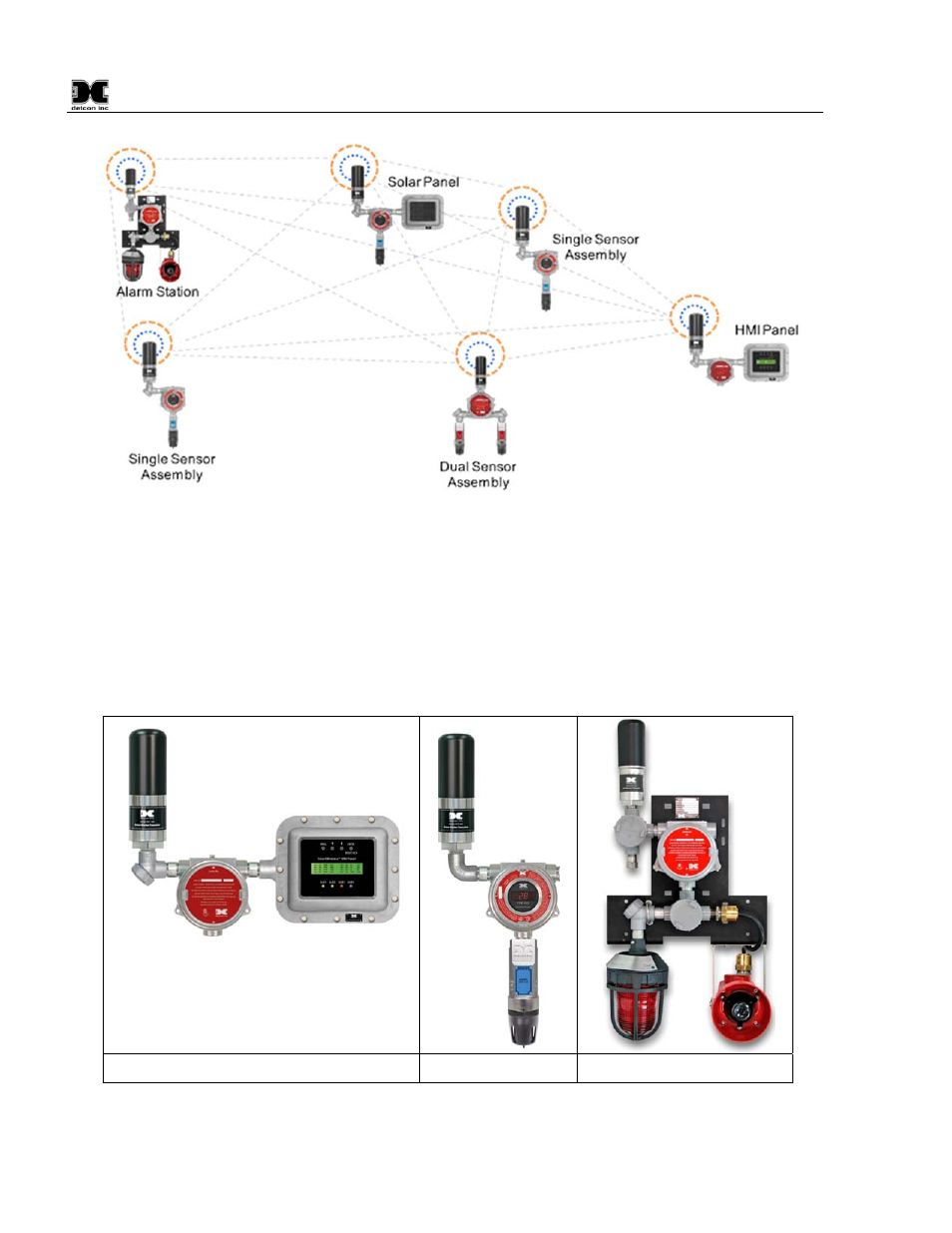

Figure 1 System Example utilizing the RXT-300
The RXT-300 is usually built up as part of an assembly to satisfy one of three different applications, the HMI
(Human Machine Interface) Station for visual status of the network, the Sensor Station that has one or more
sensors attached and the Alarm Station for system alarm indication. These three basic assemblies are then
duplicated and located as needed by the customer. Figure 2 shows the Detcon versions of the typical
SmartWireless™ assemblies. Each device within the SmartWireless™ assemblies has been chosen or
designed for low power operation and can therefore be powered using the Detcon Smart Battery pack and
supplemented with a solar panel.
HMI Station Sensor Station Alarm Station
Figure 2 SmartWireless™ Typical Product Family
