Avigilon Control Center System Integration Guide with Gallagher Command Centre

9

View Avigilon Image Data and Events in
Gallagher

Gallagher can be configured to view live and recorded video from Avigilon cameras. Gallagher
associates recorded video with specific alarms, so you must configure an action plan in
Gallagher before you can review recorded video in Gallagher.

Configuring Cameras

Before Avigilon cameras can be viewed in the Gallagher Command Centre, the cameras must be
added to the Gallagher Command Centre software. Complete the following procedures:

Assigning Logical IDs to Cameras

In the Avigilon Control Center Client software, assign a logical ID to each camera. The Command
Centre software will only detect cameras with a logical ID. By default, cameras do not have a
logical ID.

1. In the Avigilon Control Center Client software, right-click a camera in the System

Explorer and select Setup.

2. In the camera Setup dialog box, click General.

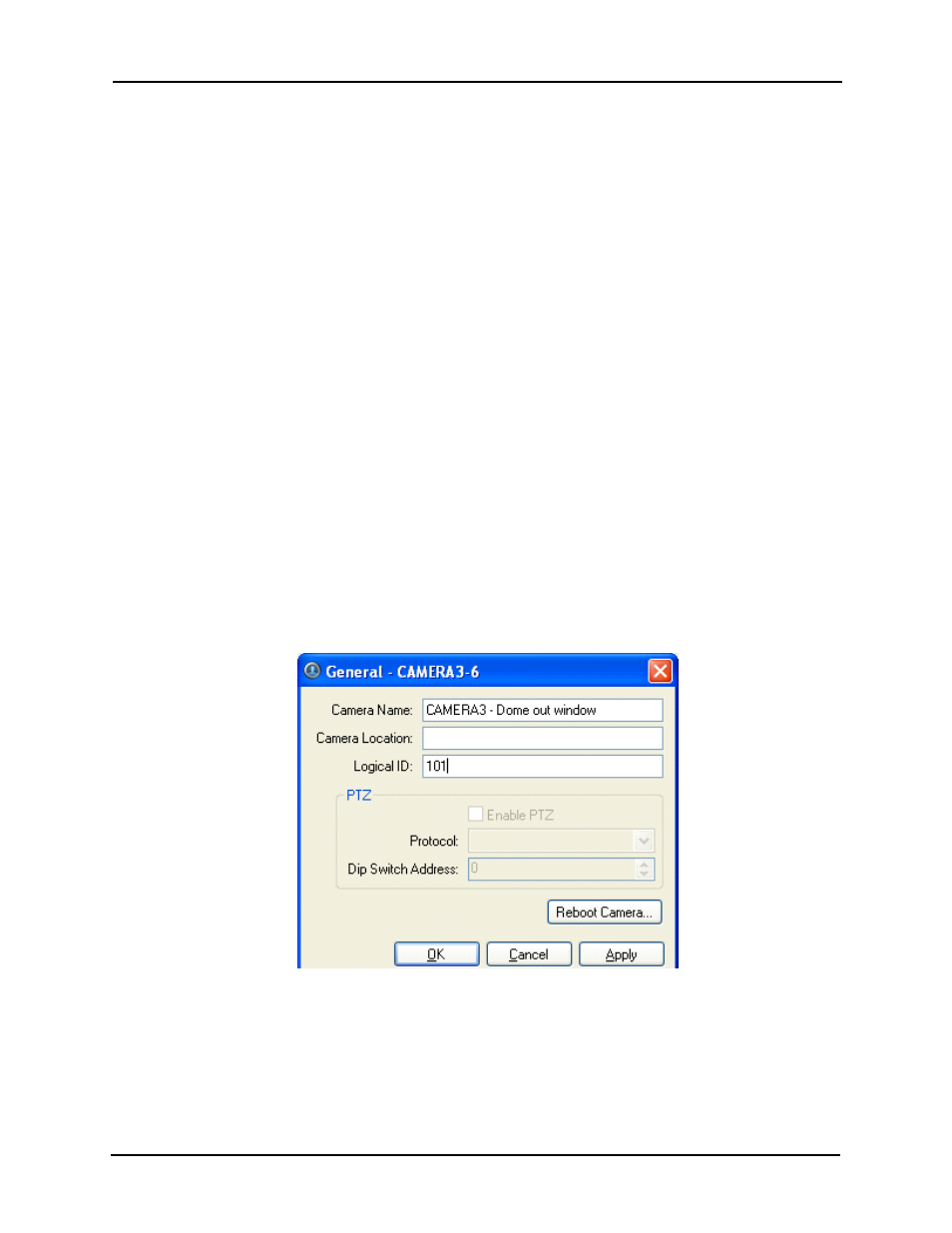

3. In the General settings dialog box, enter a Logical ID for the camera.

The logical ID must be unique number.

Gallagher Camera Setup

1. In the Gallagher Command Centre, open the External Systems Master List Window.

2. Right-click the window and select New > DVR System Camera.

3. In the General tab, name the Avigilon camera.
