FOR INSTALLATION BEHIND TRIANGULAR GABLE VENTS
For installation behind triangular gable vents, refer to steps 1-3 on the opposite page and the following

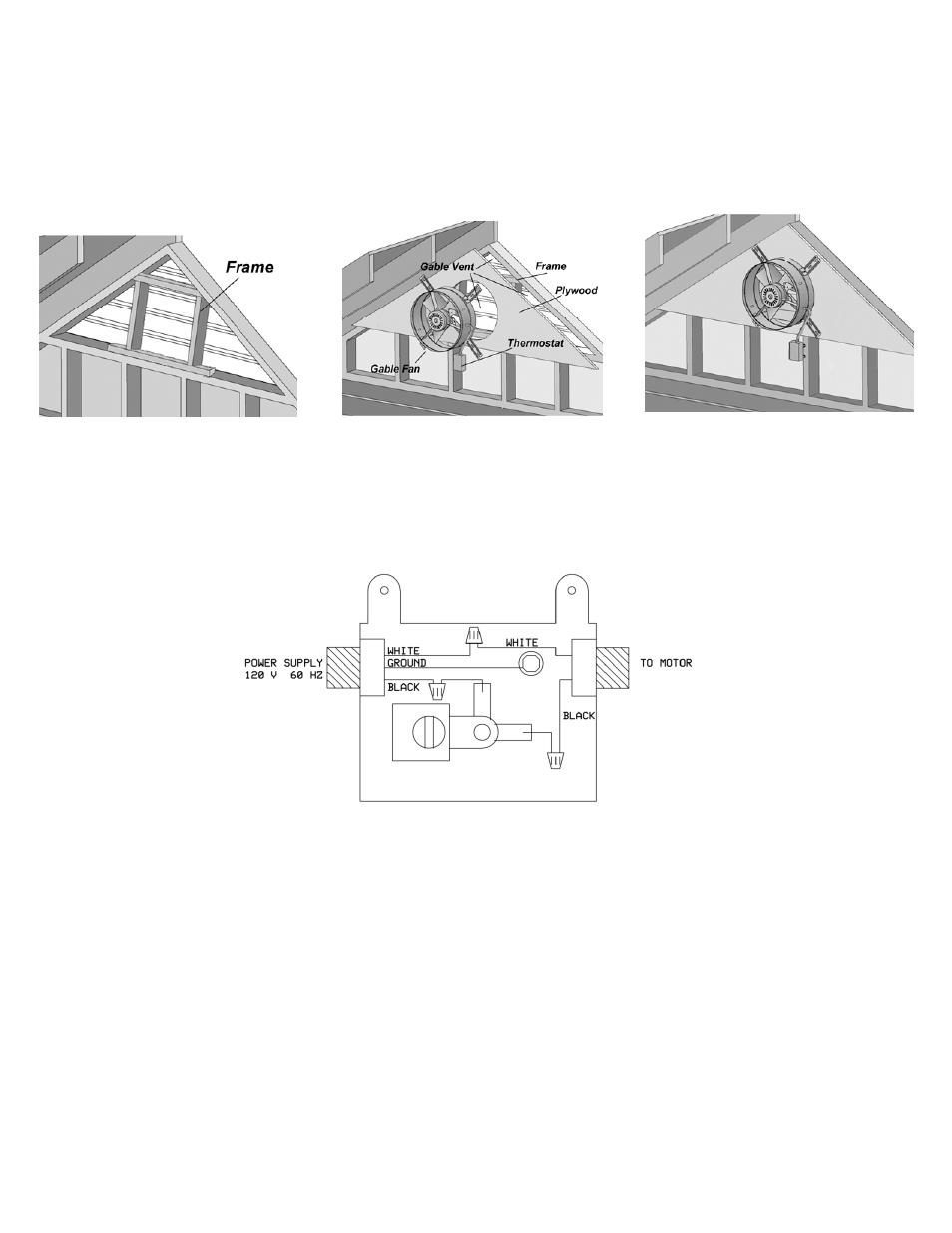

illustrations for reference.
Step 1 Step 2 Step 3
THERMOSTAT INSTALLATION
WARNING
 Before wiring the thermostat, turn the power off at the breaker to avoid electrocution.
 Be certain to confirm to all Local Electric Codes and Regulations.
 Remove the cover from the thermostat box and, using screws to prevent damage to the control, attach
the mounting plate to a stud.
 Leave the back side of the control unobstructed to allow free air circulation behind the box.
 Wire the unit to the incoming power supply according to the diagram above.
 The thermostat is adjustable. Recommended setting is 90-110 degrees F depending on local
temperatures. Setting is fan-on and fan-off.
 The fan will run as long as the attic temperature remains above the set temperature.
