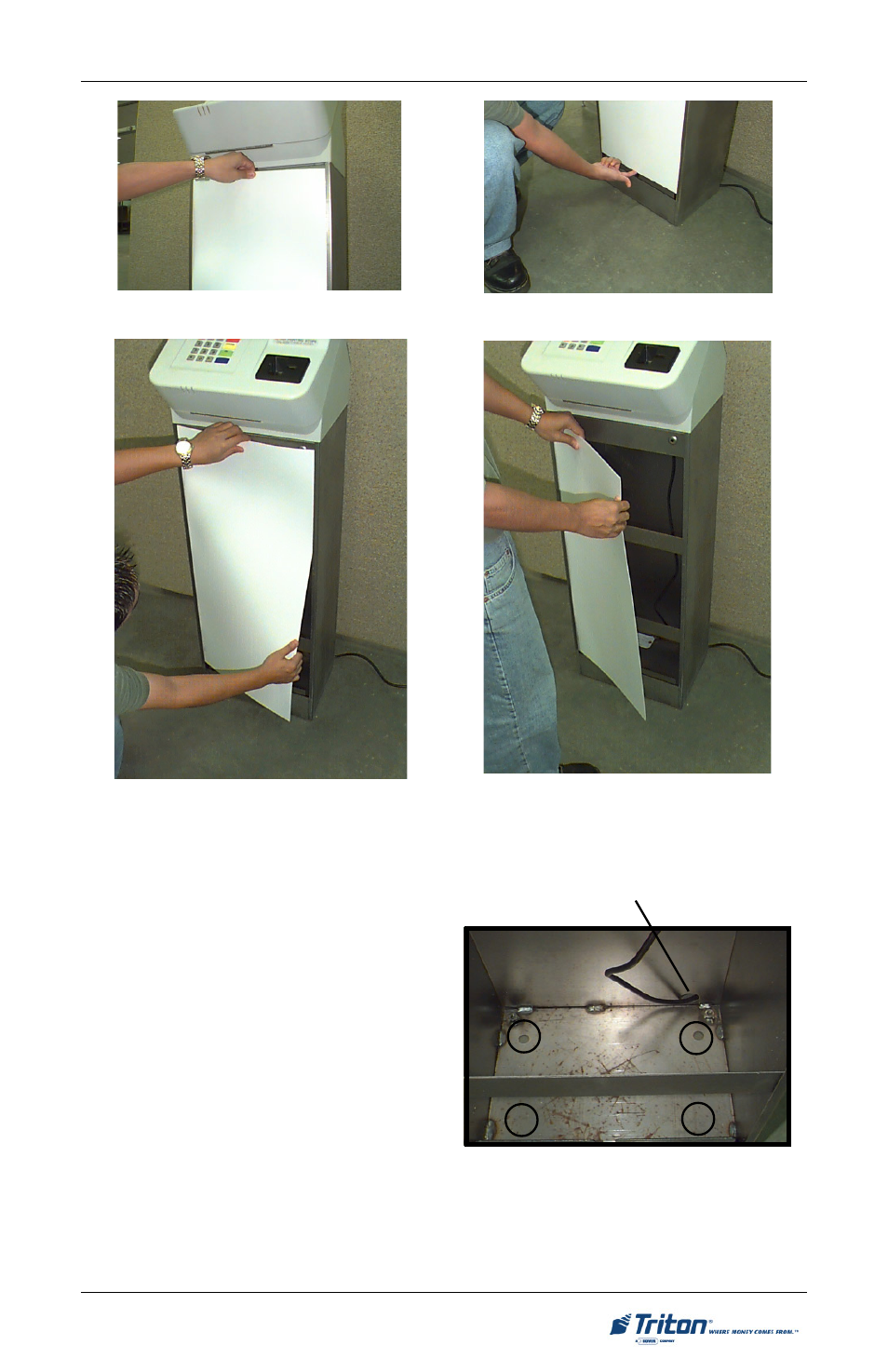

Fig. 3a Fig. 3b
Fig. 3c
Fig. 3d
3. Mark the drilling points. Locate the
four (4) hole cut-outs in the metal
floor of the pedestal base. Use them
to mark the drilling points for the
pedestal mounting holes. (Figure 4)
Preferred Method. Place the included
mounting hole drill template on the floor
in the designated location and tape it into
position. Be certain there are no physi-
cal obstructions that would prevent the
cabinet from being installed in this loca-
tion, or otherwise limit access to the unit!
Fig. 4 Mounting hole locations
Power/telephone cable throughway
