ARGO G60 I
NSTALLATION
M
ANUAL

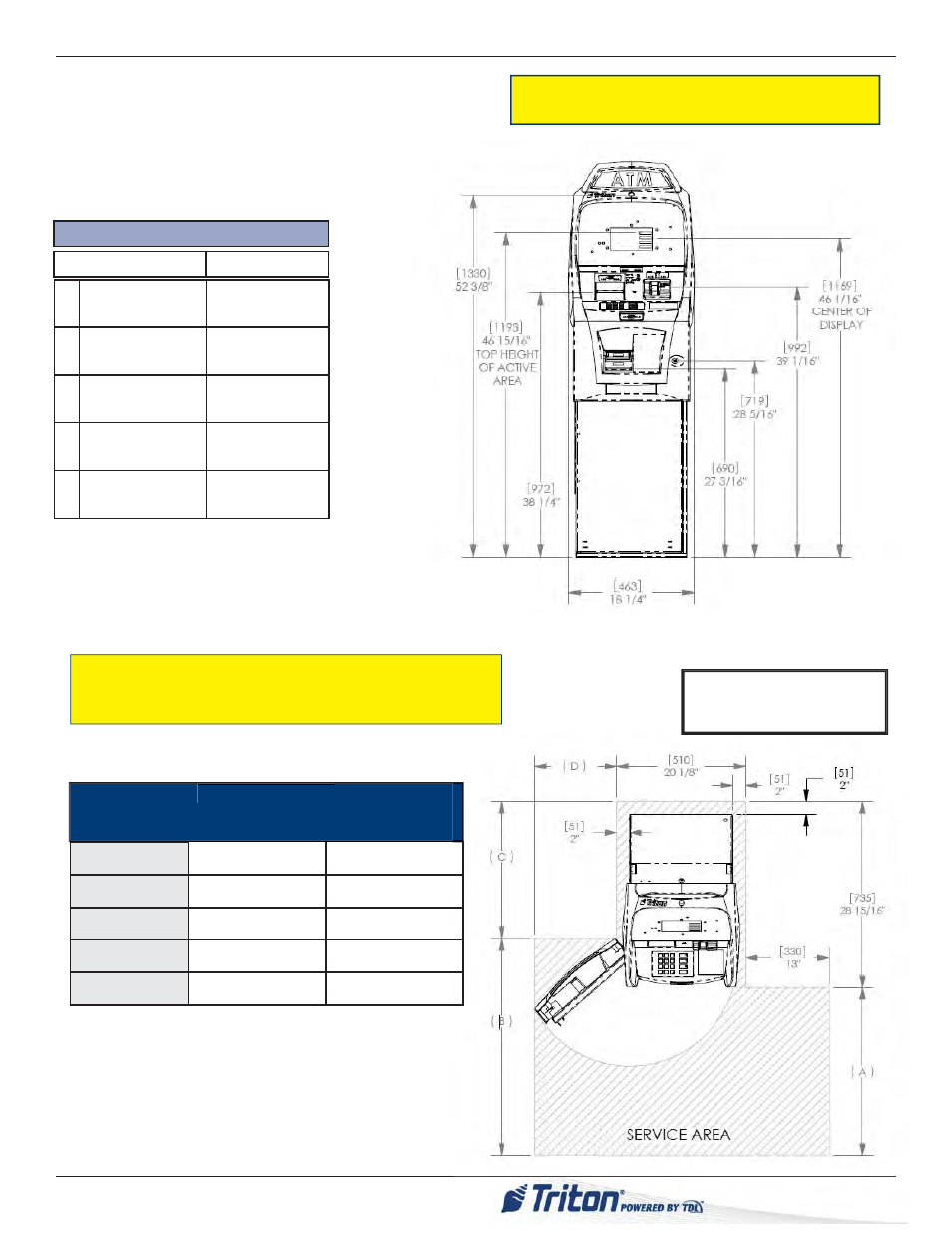

1 Top Function
Key
46 15/16”
[1193mm]
2 #5 Key
(Main Keypad)
36 1/2”
[928mm]
3 Card Reader 39 1/16”
[992mm]
4 Receipt Printer 38 1/4”
[972mm]
5 Bill Tray 27 3/16”
[690mm]
Feature Height
Customer Access Dimensions
C
ABINET
F
RONT
V
IEW
C
ABINET
S
ERVICE
A
REA
D
IMENSIONS
Dimension Preferred Area Minimum Area
A 26” [660] 24 1/2” [622]
B 33 9/16” [853] 31 1/2” [799]
C 21 3/8” [542] 21 15/16” [558]
D 12 3/4” [324] 10 5/8” [269]
Dimensions
Shown in inches/millimeters
i i
2” [51] clearance around
cabinet sides and rear
