B-3
A
ppendix
B - ATM i
nsTAllATion for
A
ccessiBiliTy
308. Reach Ranges
308.1 General. Reach ranges shall comply with 308.
308.2 Forward Reach.
308.2.1 Unobstructed. Where a forward reach is unobstructed, the high forward reach shall be 48 inches (1220 mm) maximum
and the low forward reach shall be 15 inches (380 mm) minimum above the finish floor or ground.

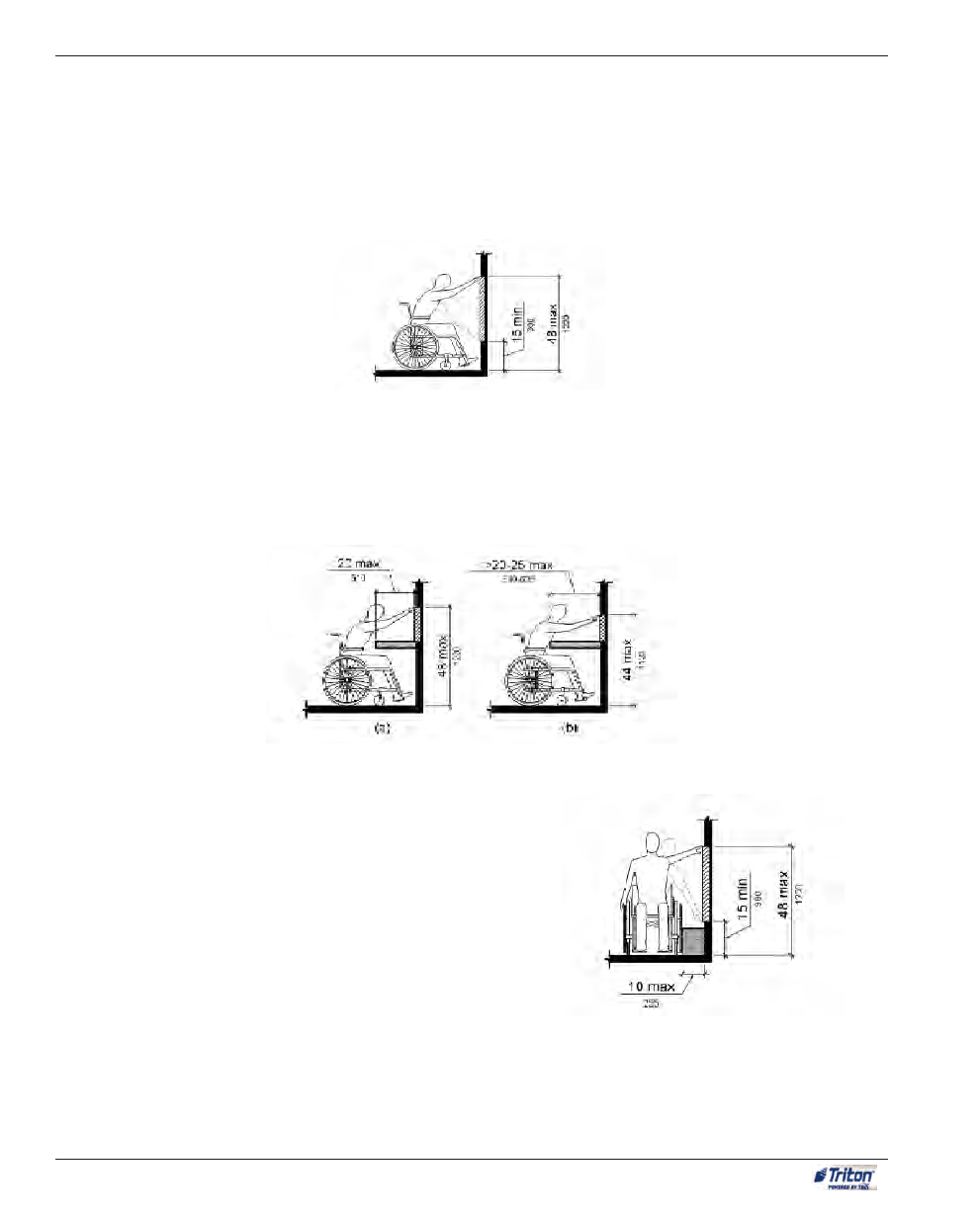

Figure 308.2.1 Unobstructed Forward Reach
308.2.2 Obstructed High Reach. Where a high forward reach is over an obstruction, the clear floor space shall extend beneath the
element for a distance not less than the required reach depth over the obstruction. The high forward reach shall be 48 inches (1220
mm) maximum where the reach depth is 20 inches (510 mm) maximum. Where the reach depth exceeds 20 inches (510 mm), the
high forward reach shall be 44 inches (1120 mm) maximum and the reach depth shall be 25 inches (635 mm) maximum.
Figure 308.2.2 Obstructed High Forward Reach
308.3 Side Reach.
308.3.1 Unobstructed. Where a clear floor or ground space allows a
parallel approach to an element and the side reach is unobstructed, the
high side reach shall be 48 inches (1220 mm) maximum and the low side
reach shall be 15 inches (380 mm) minimum above the finish floor or
ground.
Figure 308.3.1 Unobstructed Side Reach
EXCEPTIONS:
1. An obstruction shall be permitted between the clear floor or ground
space and the element where the depth of the obstruction is 10 inches
(255 mm) maximum.
2. Operable parts of fuel dispensers shall be permitted to be 54 inches
(1370 mm) maximum measured from the surface of the vehicular way
where fuel dispensers are installed on existing curbs.
