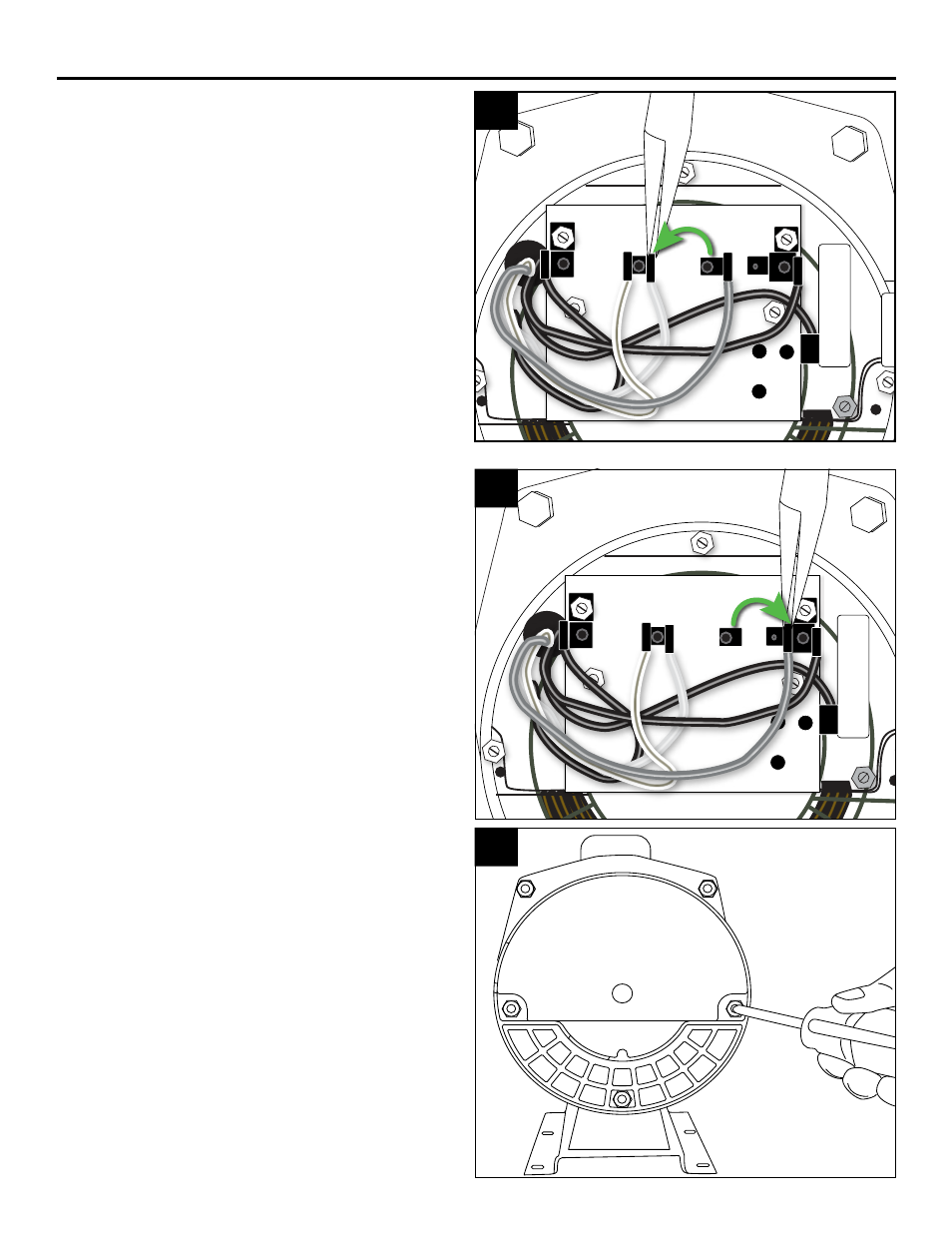

PUMP ELEcTRIcAL INSTRUcTIONS
b. Pull the red wire with the female flag
connector from the “B” terminal. Place it
to the right on the L2 terminal space post.
c. Reinstall the rear motor cover.
A B
L2 L1
GRAY
RED
7b
7c
7. For 115 volts service, change the following
wires on the terminal board:
a. Using a pair of needle nose pliers,
pull the gray wire with the female flag
connector from the “B” terminal spade
post. Place it to the left on the “A”
terminal space post.
A B
L2 L1
GRAY
RED
7a
