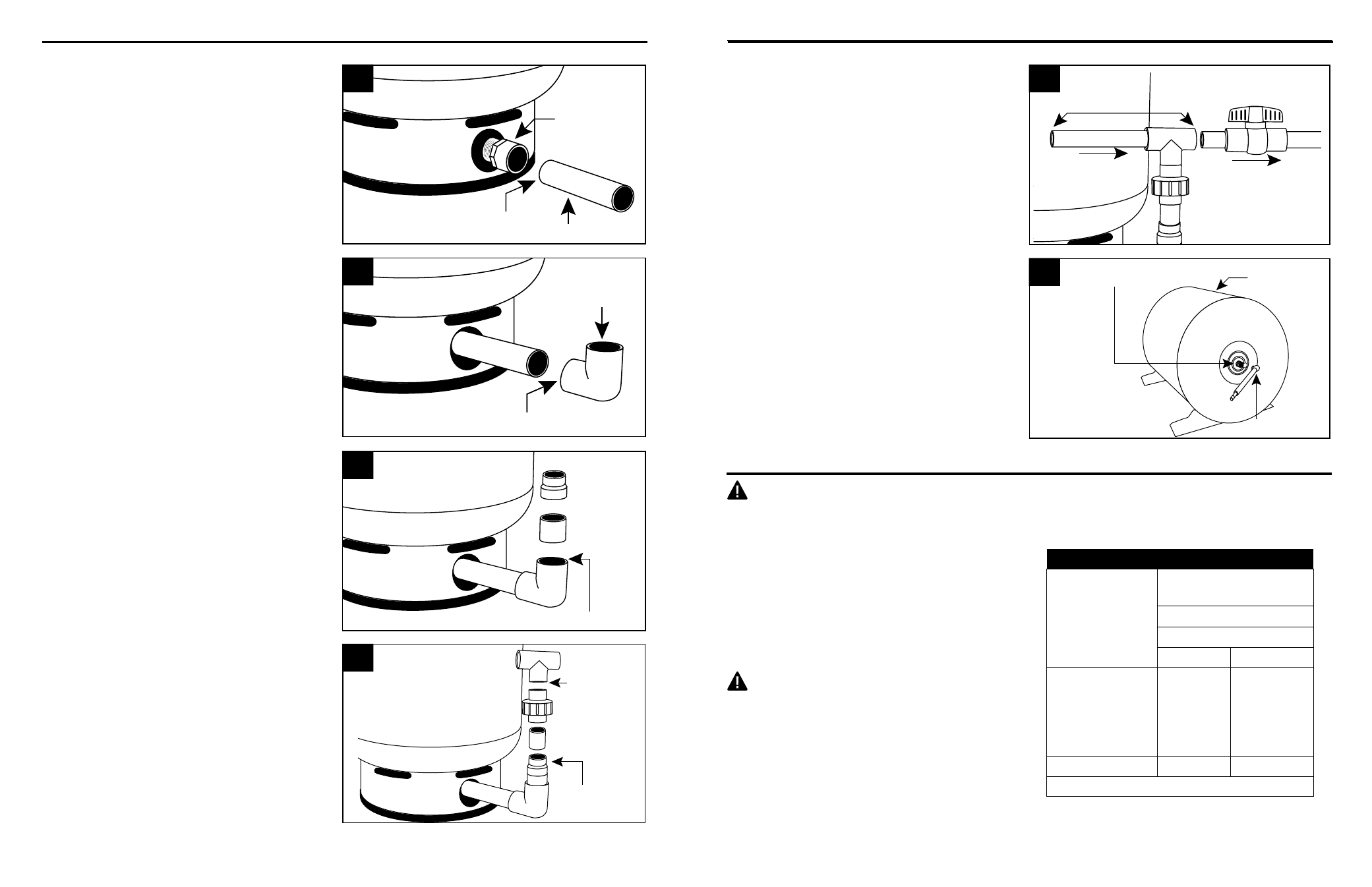

TANk TO HOUSE CONNECTION

3. Attach a 1 in. pipe (not included) to the elbow

and a 1 in. x 3/4 in. reducer bushing (not

included) to the pipe.

5. Attach the pipe from the pump to the tee

installed in Step 4. Then, from the tee,

install 3/4 in. pipe and optional shut off

valve (not included) to connect tee to

house plumbing.

4. Attach a 3/4 in. pipe (not included) to the

reducer bushing. Install an optional 3/4

in. union (not included) and continue with

pipe and 3/4 in. x 3/4 in. x 3/4 in. tee (not

included).

Glue

1 in. x

3/4 in.

Reducer

Bushing

1 in. Pipe

Glue

To House

Plumbing

From Pump

Shut off valve

Glue

Tee

Union

3/4 in. pipe

Reducer

bushing

Glue

Elbow

2. Attach a 1 in. elbow (not included) to the pipe.

Glue

Adapter

Pipe

1. Most pressure tanks will have a 1 in. inlet

elbow on the bottom. Connect to this elbow

with a 1 in. MPT x 1 in. slip (glue) adapter and

short piece of pipe.

TANk TO HOUSE CONNECTION

PUMP ELECTRICAL CONNECTIONS

WARNING:

• Always disconnect pump from electricity before performing any work on the motor.

• Under-sized wiring can cause motor failure and even fire. Use proper wire size specified in the

Wire Size Chart.

• Replace damaged or worn wiring cord

immediately.

• Do not kink power cable and never allow the

cable to come in contact with oil, grease, hot

surfaces, or chemicals.

• The pump must be properly grounded using

the proper wire cable with ground.

CAUTION:

• Protect the power cable from coming in

contact with sharp objects.

• All wiring should be performed by a qualified

electrician in accordance with the National

Electric Code and local electric codes.

• Connect the pump to a separate electrical

circuit with a dedicated circuit breaker. Refer

to the Wire Size Chart for proper fuse size.

WIRE SIZE CHART

Distance from

Motor to Meter

Recommended Copper

Wire and Fuse Sizes
Single Phase Motors

1/2 HP

115 Volt

230 Volt

0-50 Ft.

50-100 Ft.

100-150 Ft.

150-200 Ft.

200-300 Ft.

Fuse Size (Amps)

(*)

Not economical to run in 115 V, use 230 V

IMPORTANT: Air pressure in the tank

must be 2 PSI lower than the “cut-in” of

the pressure switch. Pump has a 20/40

PSI pressure switch, so tank pressure

must be set at 18 PSI. Locate the air

valve/stem on the tank and check

pressure with a tire gauge (not included).

If air needs to be removed, press down on

valve to bleed off air. Use a tire pump or

air compressor to add air if needed.

Tire gauge

Tank

Air Valve/Stem
