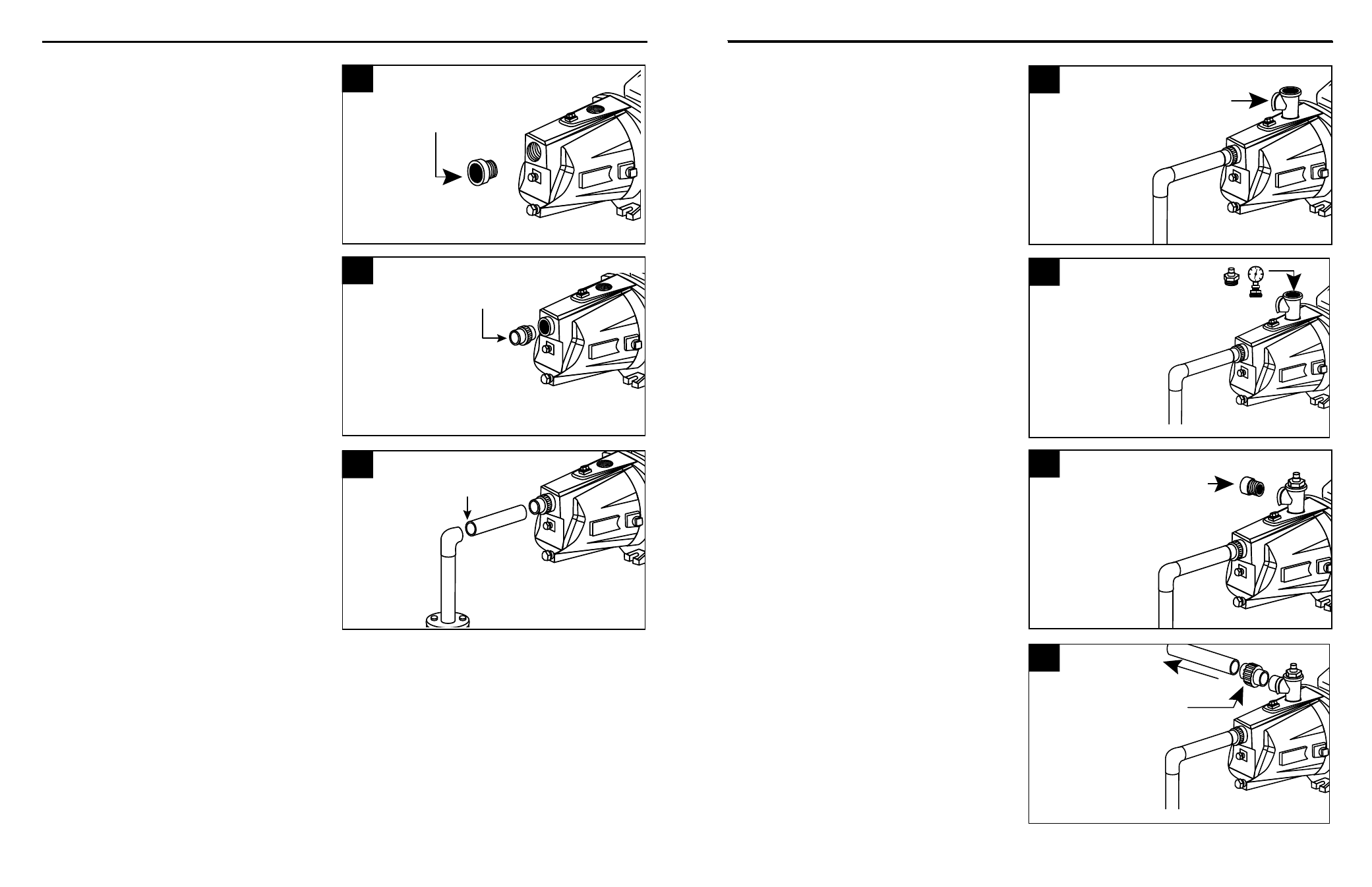

WELL TO PUMP CONNECTION (SUCTION PIPE)
6
1-1/4 in. male
PVC adapter
6. Wrap thread tape (not included) around the
threads of a 1-1/4 in. male PVC adapter (not
included). Thread the adapter into the 1-1/4 in.
opening in the front of pump.
8
1-1/4 in. PVC Pipe
Well
8. Using 2-step PVC system, attach 1-1/4 in.
PVC pipe and couplings as needed to connect
the 1-1/4 in. male PVC adapter to the 1-1/4 in.
PVC elbow attached to the top of the well pipe
in Step 5.
NOTE: Be sure the pipe slopes downward slightly
from pump to the well to prevent air pockets.
1
1 in. Discharge Tee
1. Wrap thread tape around threads of a 1 in.
discharge tee (not included). Using a pipe
wrench, thread the 1 in. discharge tee into the
1 in. opening in the top of pump.
3
1 in. male PVC adapter
3. Wrap thread tape around the threads of a 1 in.
male PVC adapter (not included) and thread
the adapter into the discharge tee.
PUMP TO TANk CONNECTION (DISCHARGE PIPE)
Pressure Gauge or
Pipe Plug with Bushing
2. Install a 1 in. MPT x 1/4 in. FPT galvanized
bushing and (optional) pressure gauge (both
not included), or a pipe plug (not included). Do
not tighten, as you will prime pump later at this
location.
2
4. Continue with 1 in. fittings and pipe to
the pressure tank. An optional 1 in. union
(not included) is recommended for easy
connection and disconnection.
1 in. union
To pressure tank
4
7
1-1/4 in. Union
7. An optional 1-1/4 in. union (not included)
is recommended for easy connection and
disconnection.
