Star Water Systems 473707 - Manual (Page 3)

4 5
Water
Source
Battery
Negative
Terminal
Black Battery
Clip
Positive
Terminal
Red
Battery
Clip
Outlet Hose
Water
Source
Discharge
Water

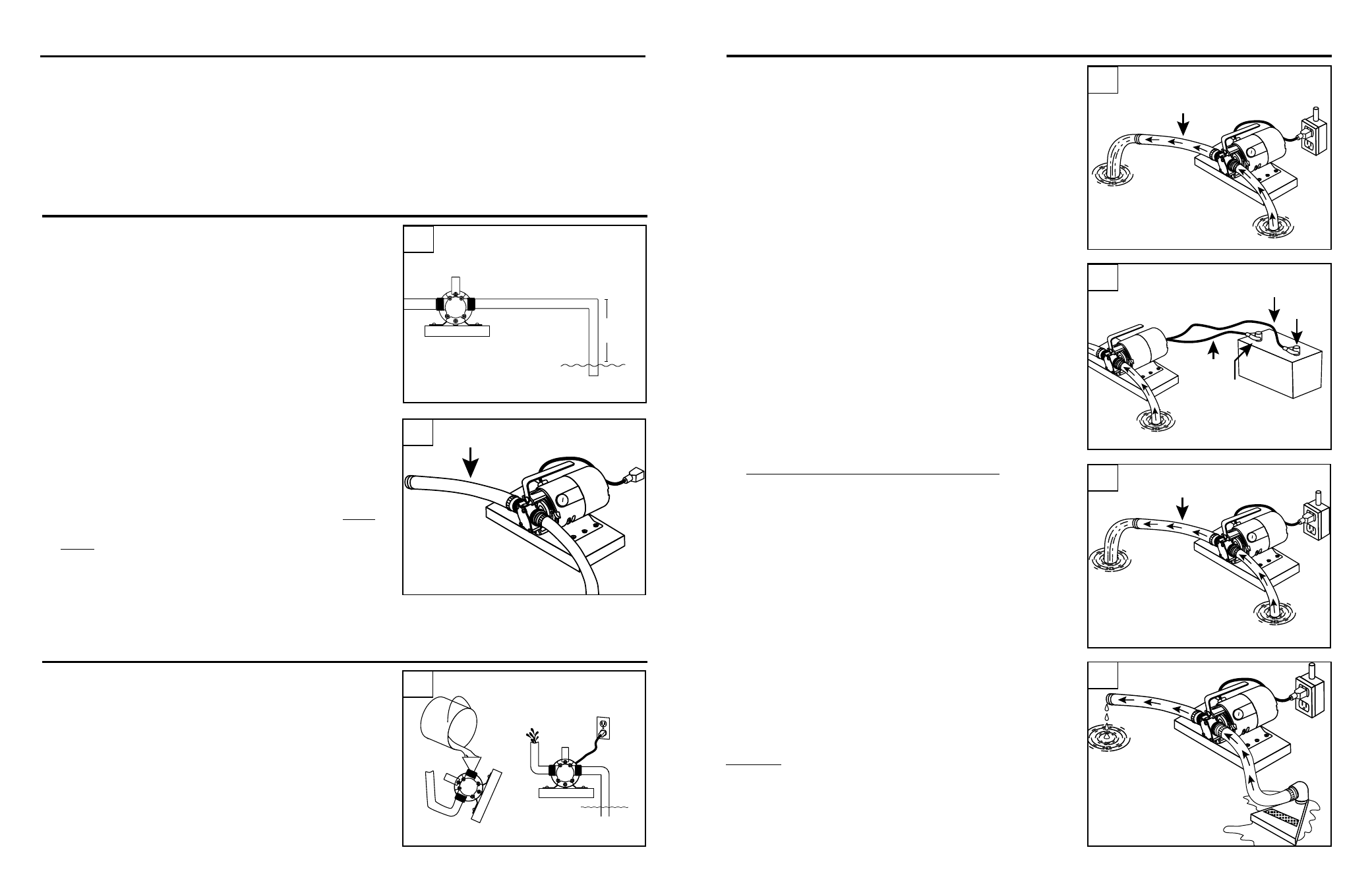

Before beginning installation of product, make sure all parts are present. Compare parts with package contents
list. If any part is missing or damaged, do not attempt to assemble the product.
Estimated Installation Time: 5 minutes
No tools required for assembly.
PREPARATION PRIMING AND STARTUP
4a
4a. For models HPP360 and 473707, plug the cord into a
3-wire, 115 volt, 60Hz grounded A/C outlet protected by
a ground-fault circuit-interruptor. Pump will deliver 350
gallons per hour with an unrestricted discharge line. If the
discharge line is restricted or raised, pump will pump less
water.
4b
4b. For model HPP12V, attach red battery clip to positive
terminal and black battery clip to negative terminal of a
fully charged battery.
INSTALLATION INSTRUCTIONS
Water Source
Outlet Inlet
3 ft. Max.
Vertical
NOTE: Pump depends on the liquid flowing through it for
lubrication. DO NOT RUN THE PUMP DRY!
1. Mount pump solidly on a stable platform. Pump should
be located so that the water source is within reach of
supplied 6 ft. inlet hose.
1
Outlet Hose
2. Check the washer in the inlet fitting of pump to make sure
it is air tight. If this leaks, pump will not operate. Install inlet
hose on the inlet side of pump. Make sure all connections
are tight.
Install a 5/8 in. outlet hose (not included) on the outlet
side of pump. Outlet hose should be as short as possible
and no longer than 25 ft. The inlet hose must reach below
the surface of the water and the outlet hose must be kept
above water.
2
3. To prime pump, fill the pump cavity through inlet to wet
impeller. Connect supplied 6 ft. inlet hose and submerge
below surface of water. Turn on pump.
Water Source
Outlet Inlet
Outlet Inlet
3
PRIMING AND STARTUP
Outlet Hose
Water
Source
Discharge
Water
5. To reduce friction, do not coil or kink the hoses. When
pumping from a well or stream, raise the inlet hose a few
inches off the bottom to avoid pumping in debris which
can damage the pump.
5
6
6. This unit is shipped with a puddle vac accessory which
allows it to remove water from flat surfaces. After
attaching inlet hose in step 2, screw the puddle vac onto
the end of the inlet hose and place it on the surface to be
pumped.
CAUTION: Before water is completely gone, unplug the
pump. DO NOT RUN PUMP DRY!
