Using the AC
Adapter to Charge
the Battery
Follow the instructions below.

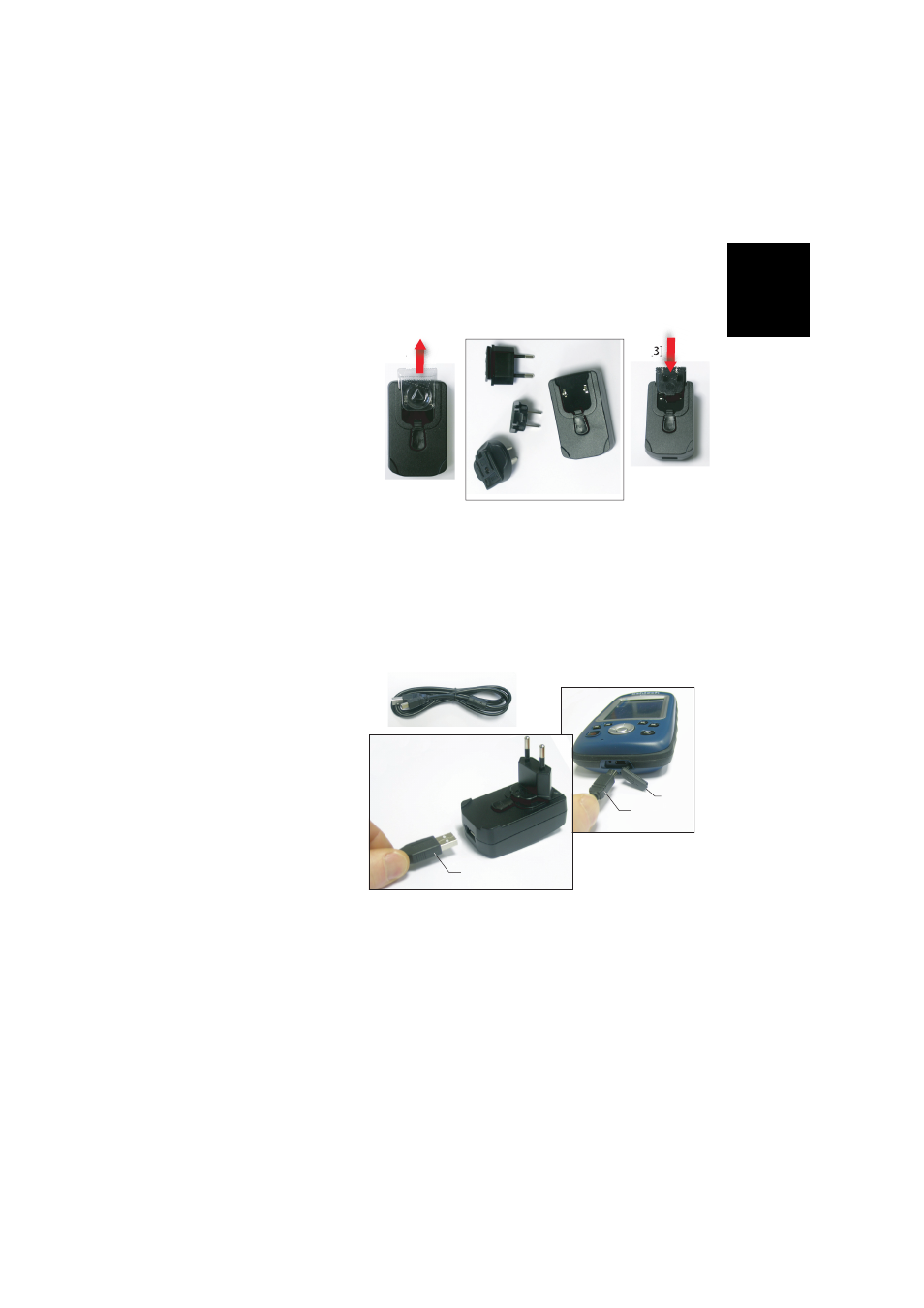

• Prepare the AC adapter:
– Remove the protective cover [1] by pushing the button
then sliding the cover forward.
– Choose the plug that fits your country’s AC outlet
standard (see [2]) and slide it into the AC adapter [3].
(A “click” must be heard when fully inserted.)
• Take the USB cable provided [4]. Connect the end fitted
with a standard USB connector to the AC adapter.
Connect the other end (fitted with a mini-USB connector)
to the bottom side of the receiver (open the flap [5] first).
• Connect the AC adapter to an electric outlet. After about
4 seconds, the receiver screen lights up. An icon shows up
indicating that the battery is being charged. The screen is
then turned back off after about 10 seconds. After this
time, battery charging will continue at the same rate until
the battery is fully charged (charging time: 4 hours max.).
[1] [2] [3]
[4]
[4]
[4]
[3] [3]
[5]
