SEED HAWK® TOOLBAR OPERATOR’S MANUAL 68
GWG WC GWC WC WR
KEY
P
TRACTOR PRESSURE
T TANK
OUT TRACTOR RETURN
WR WING ROD
WC WING CAP
GP 0‐4000 PSI GAUGE
GO 0‐4000 PSI GAUGE
GT 0‐600 PSI GAUGE
GWG 0‐4000 PSI GAUGE
GWC 0‐4000 PSI GAUGE
GO
OUT
GP
P
T
GT

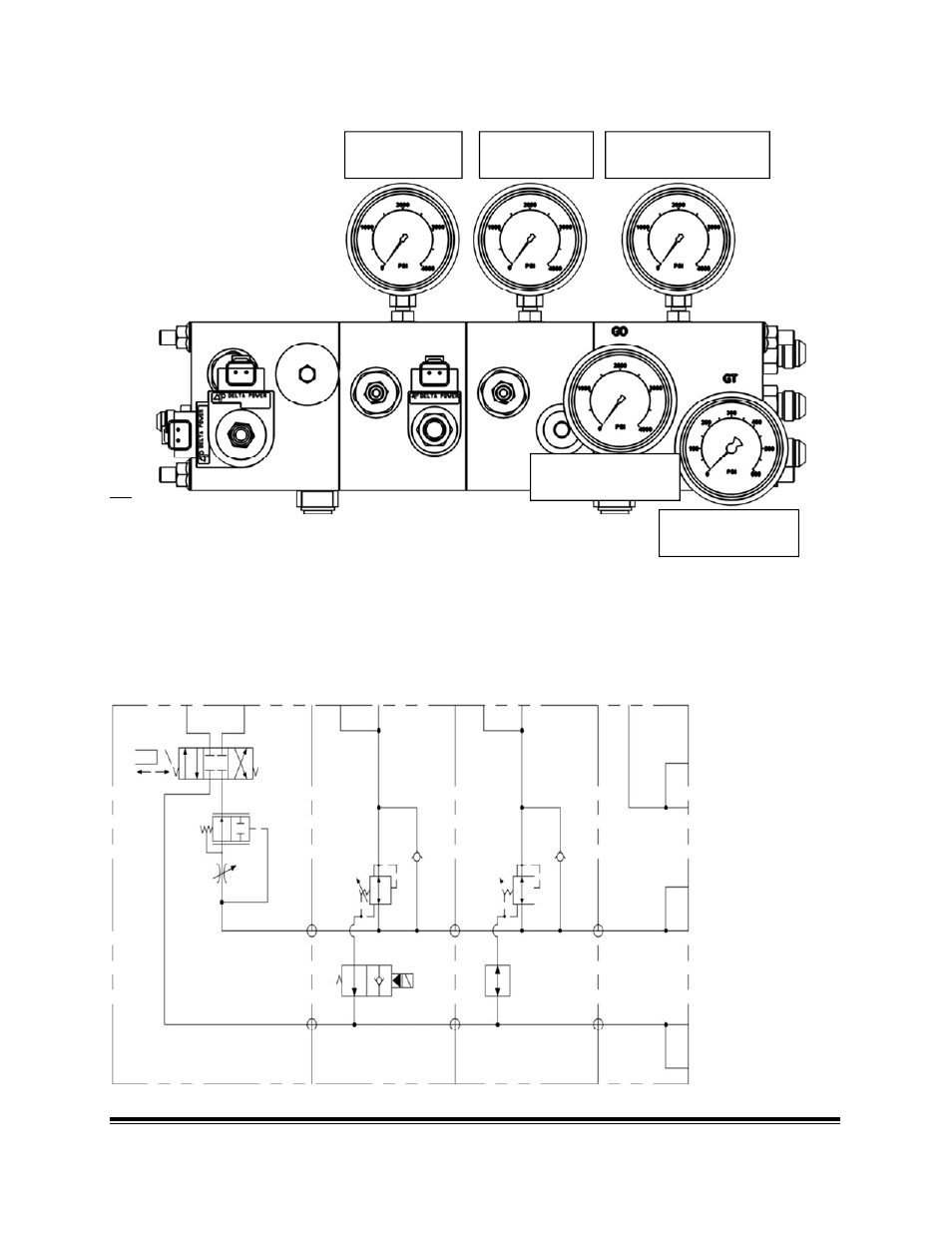

9.2.4 7 PLEX WING HYDRAULIC BLOCK W/SBR
L R
OUTER WING
GAUGE
INNER WING
GAUGE
TRACTOR PRESSURE
GAUGE
TRACTOR RETURN
GAUGE
TANK PRESSURE
GAUGE
