7.0 MAINTENANCE
7.1 HYDRAULIC CARTRIDGES
Hydraulic cartridges, FIGURE 29, which is located on hydraulic block, should only be removed,
inspected and cleaned at the end of each seeding season if problems occur with them. Some
cartridges may be disassembled for additional access for cleaning. It is recommended that the
disassembly and further cleaning of this type of cartridge be performed by a technician trained
in hydraulic component servicing.
7.2 HYDRAULIC CYLINDERS
Inspect hydraulic cylinder seals and hose connections at cylinder fittings every 10 hrs or daily.
Tighten any loose fittings, FIGURE 30. Cylinder seals are replaceable. Contact a technician
trained in hydraulic maintenance and repairs if assistance is required for replacing cylinder
seals.

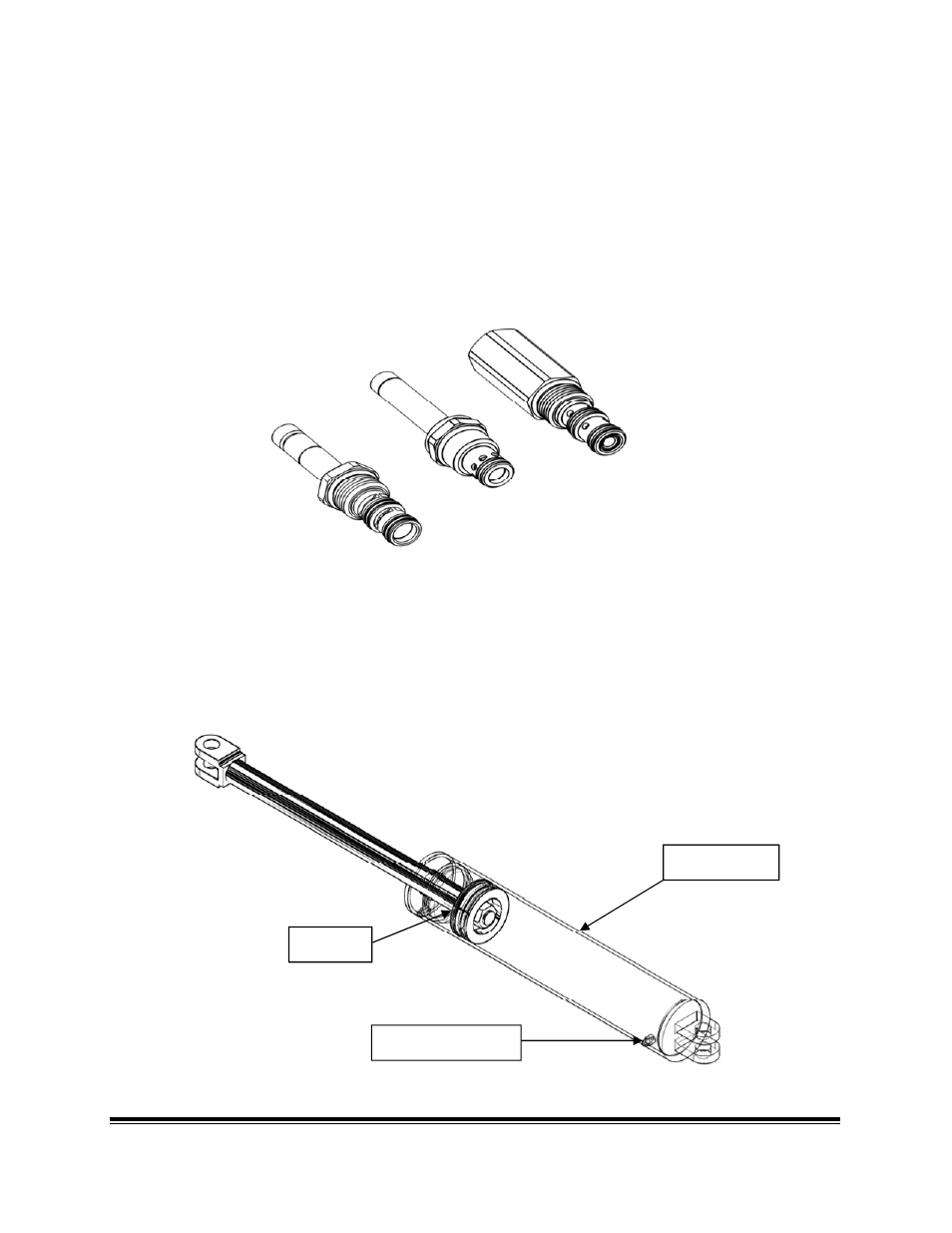

FIGURE 29
FIGURE 30
SEALS
HOSE FITTINGS
CYLINDER
