Chapter 1: DVR Features
DVR Feature
 MPEG-4 compression
 4-Channel: 4 BNC Camera Inputs - 2 BNC Video Outputs
9-Channel: 9 BNC Camera Inputs - 1 BNC Video Output
4-Channel: 2 Audio Inputs - 2 Audio Outputs
9-Channel: 1 Audio Input -1 Audio Output
 System Format : NTSC /PAL
 Motion Detection with Sensitivity and Area Settings
 Time Schedule, Alarm and Motion Triggered Recording Modes
 Hard Disk Support up to 500GB
 Supports PTZ Control via RS-485 Port
 View and Operate over Network (Broadband Connection Required)
 Built-in USB 2.0 Port for Backup to Computer or USB Memory Stick Backup (Optional)
 VGA Output (Optional)
Chapter 2: Overview
2.1 Front Panel

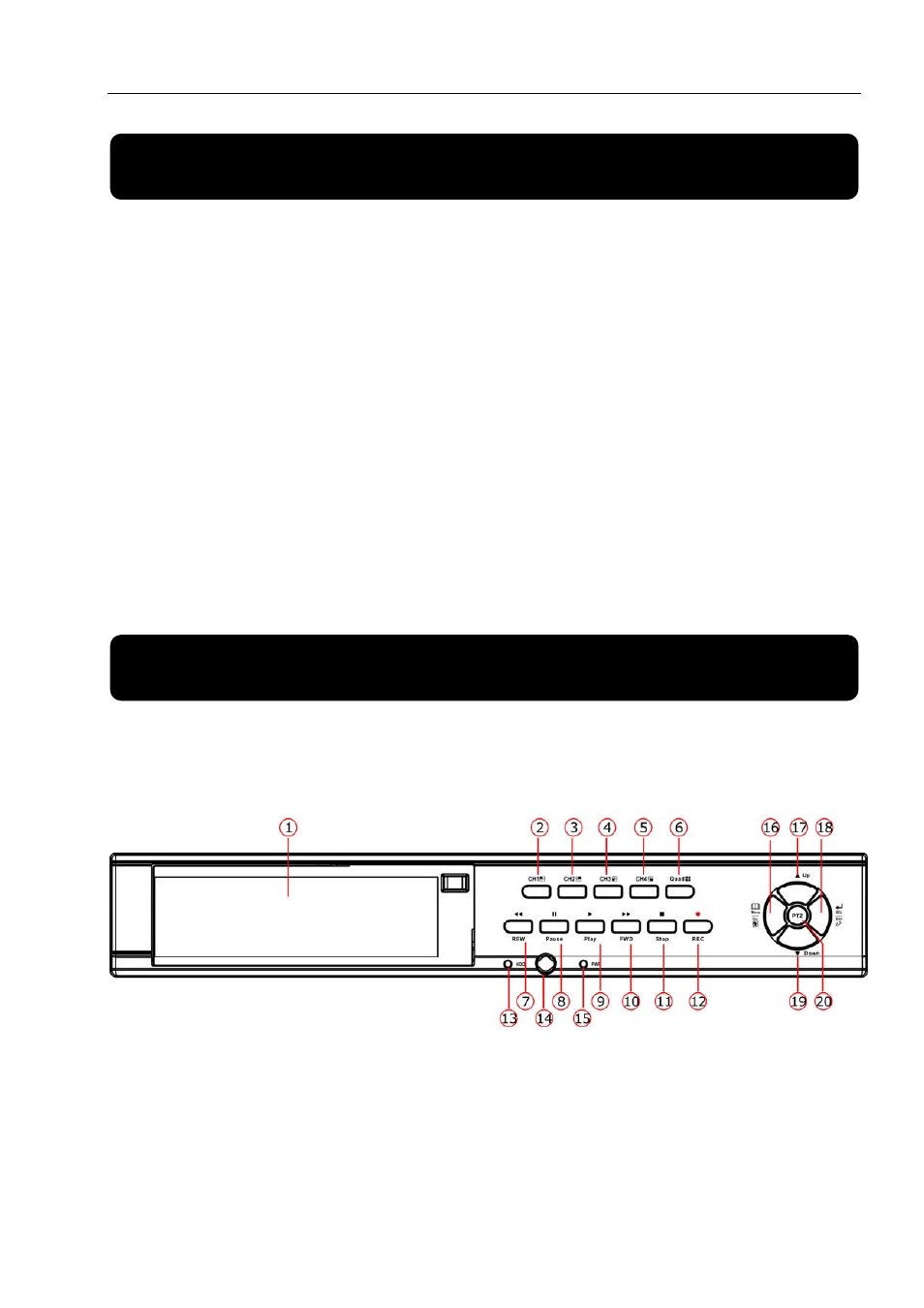

2.1.1 4-ch DVR front panel
1. Removable HDD Tray
2. CH1
3. CH2
4. CH3
5. CH4
6. QUAD: View all channels
7. REW: Rewind play/Focus
8. PAUSE: Pause/Auto sequence display
9. PLAY: Play recorded file/Zoom
10. FWD : Forward play/Iris
