Note: For 4-ch DVR, there are 2 audio inputs.
For 9-ch DVR, there is only 1 audio input.
5.16 Miscellaneous Setup - PTZ Setup
ID: Assign an ID to your speed dome.
Press [SEL] to select the camera, press [ ] and [ ] buttons to assign the ID.
Note : the ID must be unique.
5.17 Miscellaneous Setup - Image Parameters
SPEED: Set the baud rate (2400,4800，9600，19200，
38400) to match your speed dome.
PROTOCOL: Supports “PELCO-D” and
“PELCO-P”. Select the protocol according to your
speed dome’s protocol.
CAMERA: Select the camera channel which is
connected with the speed dome.
You can adjust the image parameters
according to your needs.
Move the cursor to this selection and press
[ ] or [ ] button to select a channel you want
to adjust, then press [SEL] button to edit
parameters.
CON: Contrast
BRI: Brightness
HUE: Hue
SAT: Saturation
Press [▲] or [▼] to select the item， and then
press [
] and [
] buttons to adjust the
value.

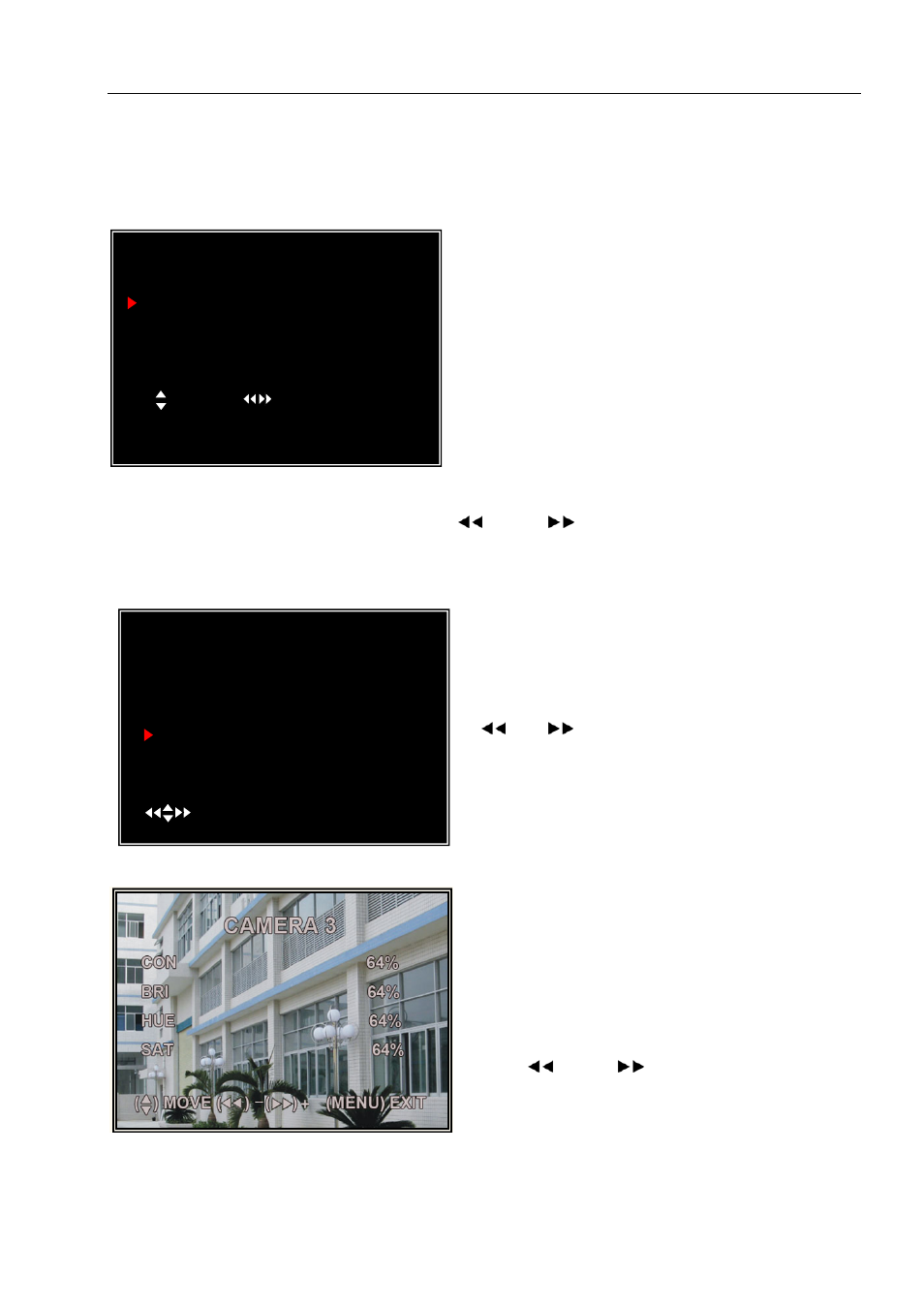

PTZ SETUP
SPEED [4800]
PROTOCOL [PELCO-D]
CAMERA- [ 1 ] ID [ 1 ]
( )MOVE ( )CAM ID
(SEL)SELECT (MENU)EXIT
MISCELLANEOUS SETUP
CHANGE PASSWORD
SET TIME
HIDDEN CHANNEL
AUDIO PORT SETUP
PTZ SETUP
IMAGE PARAMETERS
PASSWORD ENABLE
KEYPAD TONES
SEQ. DWELL TIME
VGA SETUP
( )MOVE (SEL)SELECT (MENU)EXIT
[ 1 ]
[ CH3 ]
[ OFF ]
[ ON ]
[ 05 ]
[1024*768 75HZ]
