LT Security LTD5304 - Manual (Page 23)

Digital Video Recorder User Manual
21
1. VIDEO RESOLUTION
This unit supports CIF format.
Resolutions of different video formats are: PAL: 352*288(CIF);
NTSC: 352*240(CIF)
2. RECYCLE
Ticking off "RECYCLE" means to record constantly. Once HDD is written fully, DVR will continue to record by covering the
previous record, automatically. If not ticking off "RECYCLE", record will stop once the HDD is full.
3. PRERECORD TIME
Prerecord time refers to the record time before alarm. There are two options: 5 seconds and 10 seconds.
4. TIME STAMP
If selecting, record time will be displayed on the bottom of screen at playback
5. CHANNEL
STEP1 Move the cursor to the item.
STEP2 Press "Enter" key to switch the channel and select.
6. VIDEO QUALITY
There are five options: lowest, lower, medium, higher and highest. The higher of the picture quality, the clearer of the
image is, and the larger HDD space will be occupied.
7. AUDIO

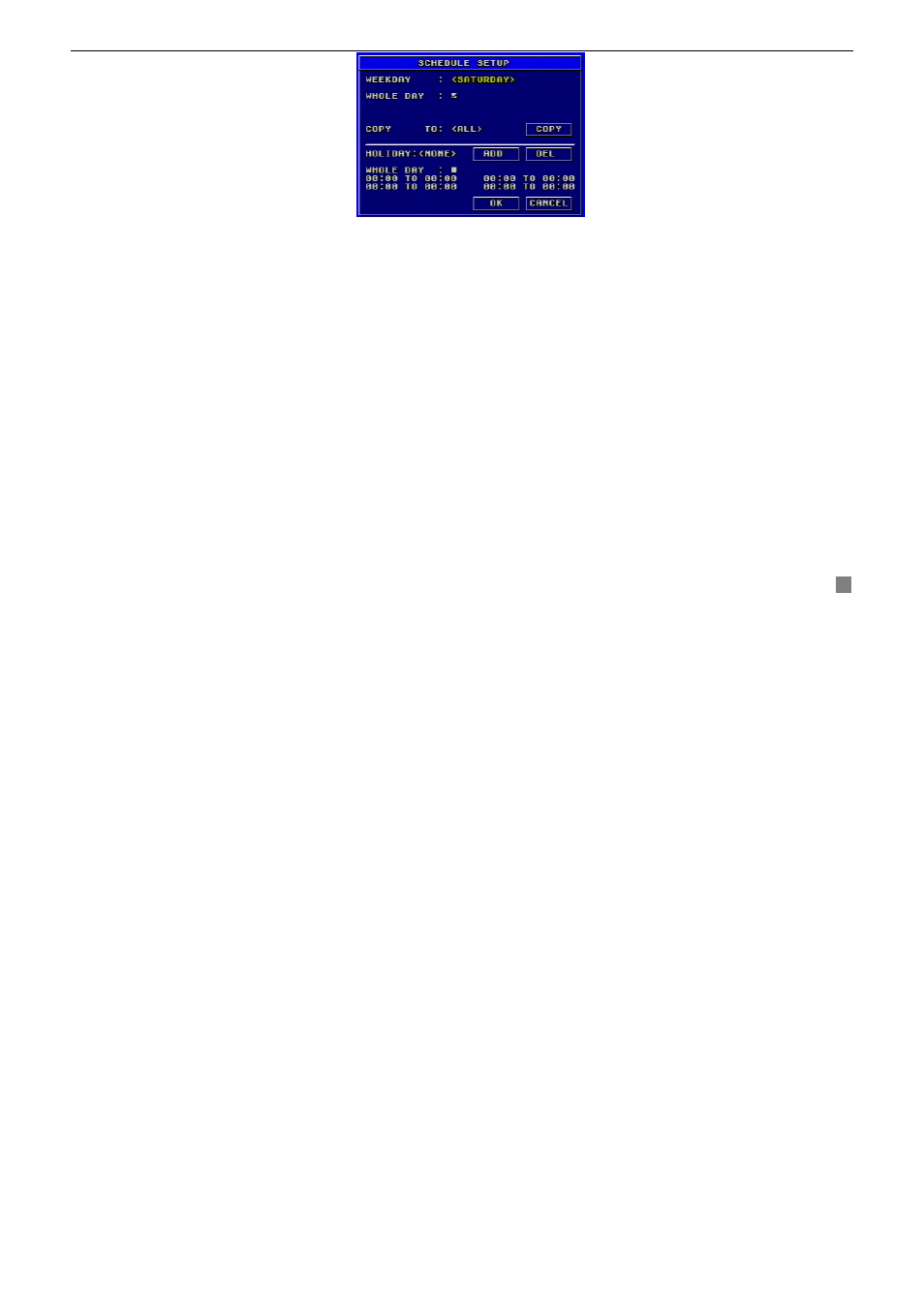

Fig3.8 Schedule Setup
