29
Digital Video Recorder User Manual

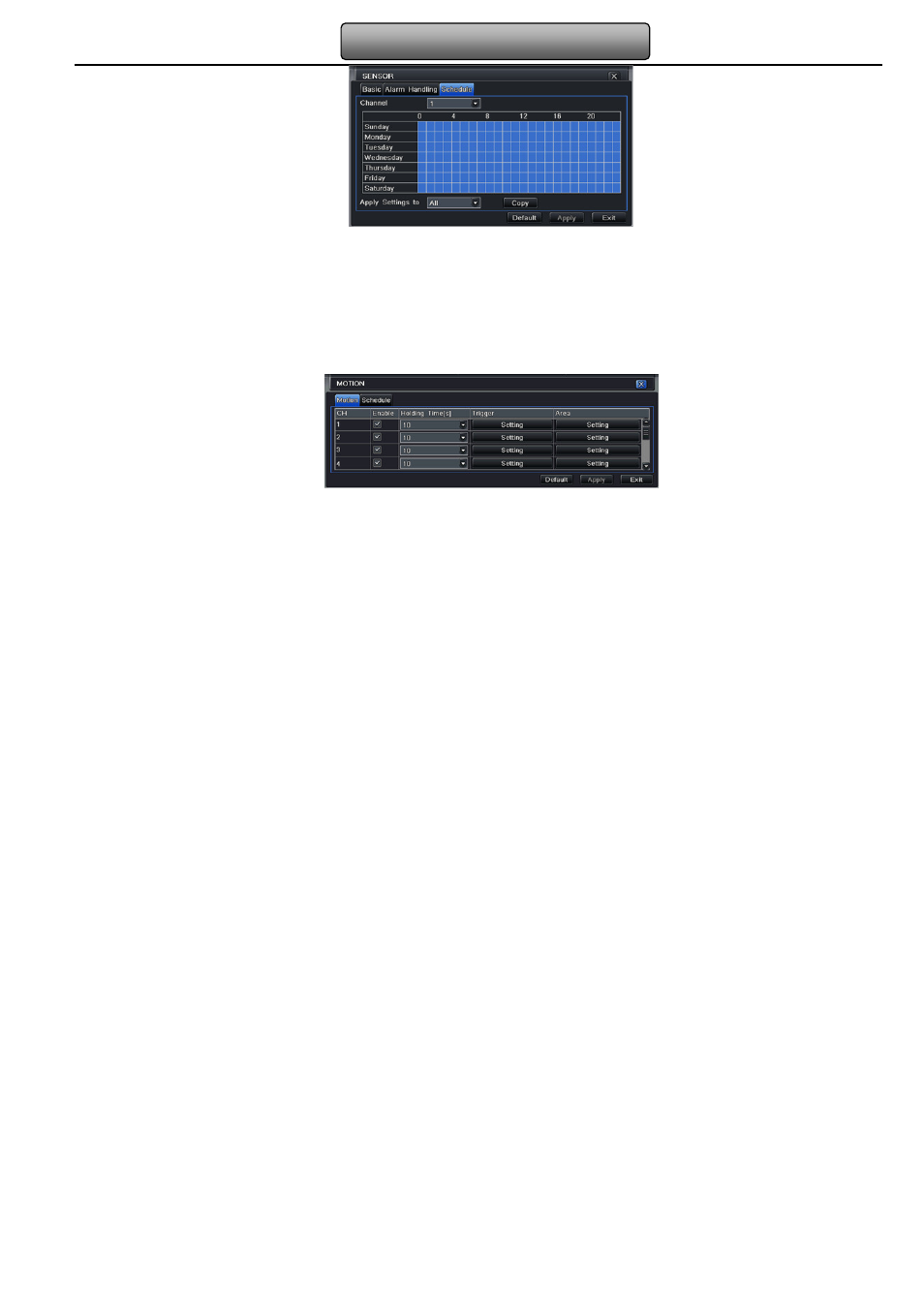

Fig 4-22 sensor-schedule
Step2: the setup steps of sensor schedule are familiar with schedule; user can refer to 4.4.1 Schedule for details.
Note: the default schedule of sensor is full-selected, that is, the color of schedule setting interface is blue.
4.5.2 Motion
Motion includes two sub menus: motion and schedule.
① Motion
Step1: enter into system configuration
alarm configuration motion. Please refer to Fig 4-23:
Fig 4-23 alarm configuration-motion
Step2: enable motion alarm and set alarm hold time which means time interval between two adjacent detective motions. If there
is other motion detected during the interval period which is considered continuous movement; otherwise, it will be considered
that those two adjacent detective motions are two different motion events. Click Trigger button to pop up a dialog box.
