Item Description Part Number Qty.
New Complete Gun & Cable Assemblies:
Magnum ® 100L K530-6
Replacement Parts:
1 Cable Assembly M16318-2 1
2 Trigger Assembly S19725 1
3 Locking Nut S19580 1
4A Gun Tube Assembly KP2038-1 1
4B Gun Tube Assembly Cover T10642-162 1
5 Collar S19701 2
6A Gun Handle (Right & Left) G2209 1
7 O Ring T13483-8 2
8 Control Wire Cord S26388 1
Gun Consumable Parts:
Liners:
.025-.035” Liner KP1937-3
.030-.035” Liner (Aluminum) KP1959-1
.035-.045ʼ Liner KP45-40-15
Diffuser:
Gas Diffuser KP35-50
Item Description Part Number Qty.
Item Description Part Number Qty
Item Description Part Number Qty.
Contact Tips:
.025” (0.5 mm) KP11-25
.030” (0.8 mm) KP11-30
.035” (0.9 mm) KP11-35
.045” (1.2 mm) KP11-45
Tapered Contact Tips:
.025” (0.6 mm) KP11T-25
.030” (0.8 mm) KP11T-30
.035” (0.9 mm) KP11T-35
.045” (1.2 mm) KP11T-45
Nozzles:
Gas Nozzle 0.5 ID, Tip Flush KP21-50-F
Gas Nozzles, Tip Recessed
0.37” I.D. KP21T-37
0.50” I.D. KP21T-50
0.62” I.D. KP21T-62
Gasless Flux Cored Nozzle KP1939-1
Spot Welding Nozzle .625 ID KP21-62-FAS

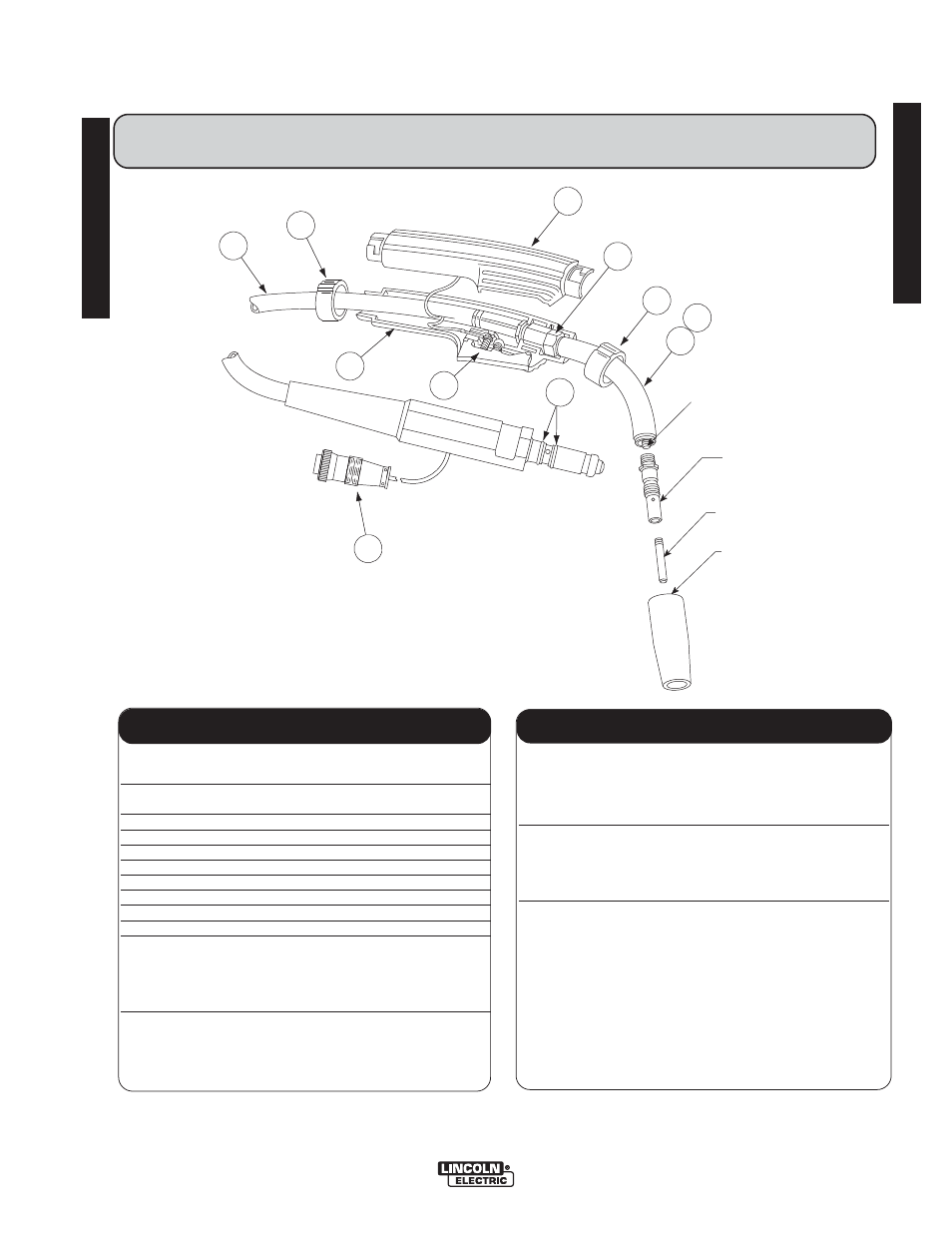

MAGNUM ® 100L Parts
MAGNUM ® 100L
01-20-2012
GAS GAS
DIFFUSER DIFFUSER
CONTACT CONTACT
TIP TIP
NOZZLE NOZZLE
LINER LINER
5
3
2
7
6A 6A
6A 6A
4A 4A
4B 4B
5
8
1
MAGNUM
®
100L
MAGNUM
®
100L
