Lincoln Electric IM890 POWER MIG 140_180 User Manual
Page 34
F-1

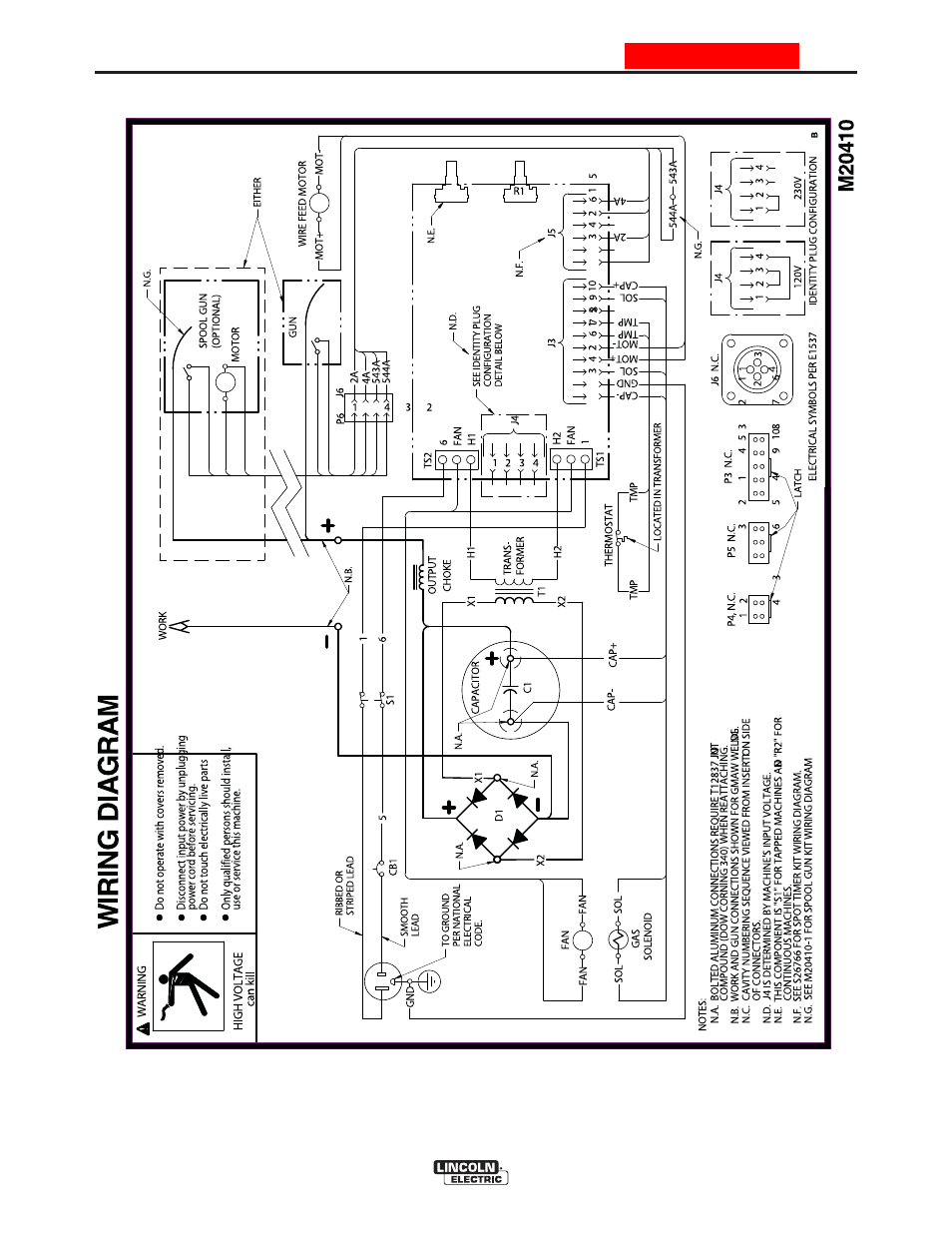

DIAGRAMS
F-1
POWER MIG (140, 180 MODELS)
FOR CODES 11254,
11255,
11256,
11257
FOR CODES 11254,
11255,
11256,
11257
NOTE: This diagram is for reference only. It may not be accurate for all machines covered by this manual. The
specific diagram for a particular code is pasted inside the machine on one of the enclosure panels.
Enhanced Diagram
