A-4 INSTALLATION
POWER MIG (140, 180 MODELS)
A-4

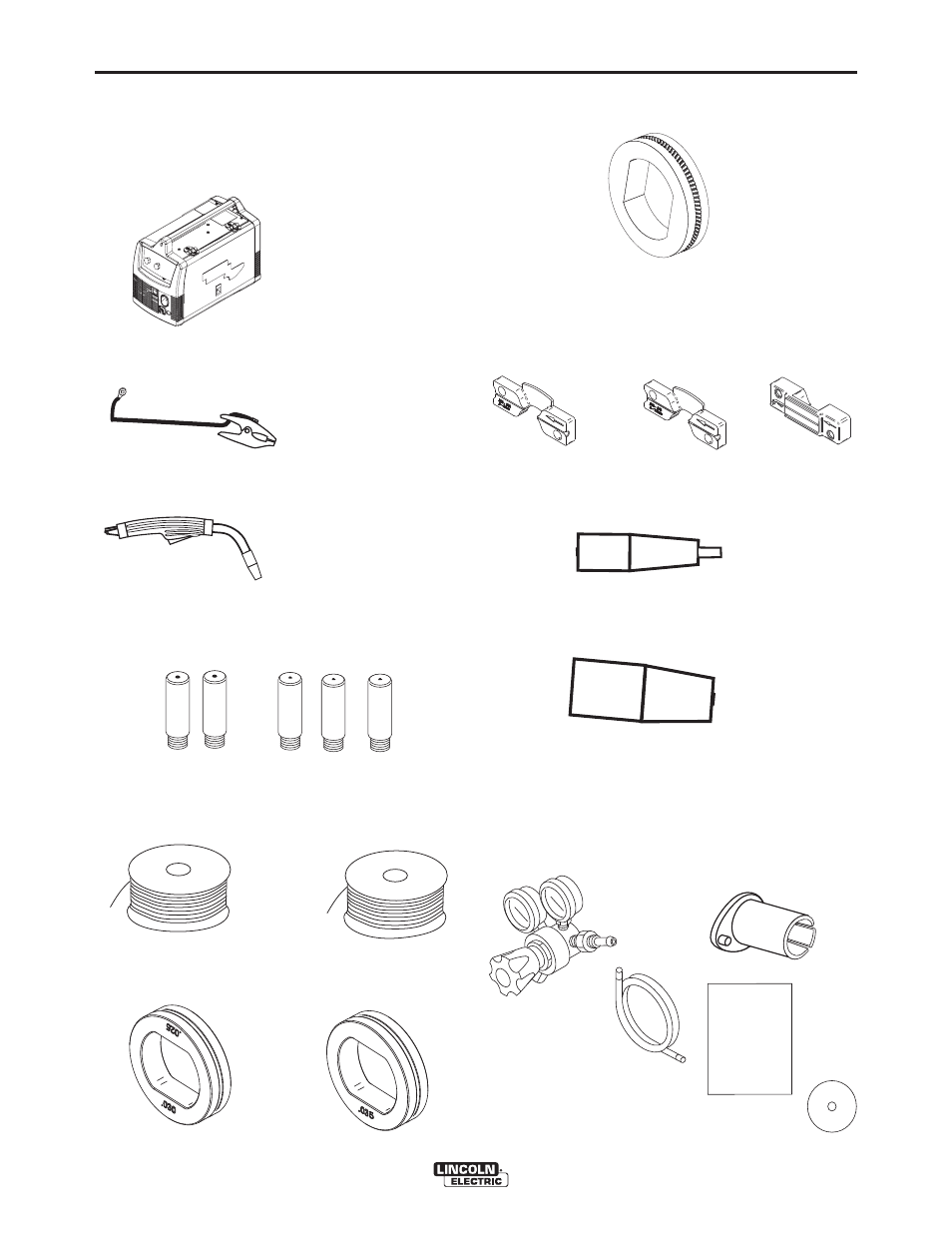

INCLUDED COMPONENTS
• Wire Feeder Welder.
• Work Cable & Clamp.
• Magnum 100L Welding Gun.
• 3 .035” (0.9mm) Contact Tips
(1 installed on the welding gun).
• 3 .025” (0.6mm) Contact Tips.
• Spool of .035” (0.9 mm) diameter NR-211MP
Innershield Flux-cored Wire.
• Spool of .025” (0.6 mm) diameter L-56 MIG Wire.
• .025”-.030” (0.6 - 0.8mm) • .035” (0.9mm)
Smooth Drive Roll Smooth Drive Roll
.025 .025 .025 .035 .035
NR-211 MP
WIRE
L-56 MIG
• .030” -.045” (0.8 - 1.1mm) Knurled Drive Roll
(Installed on Machine)
• .025” -.035” (0.6 - 0.9mm) Inner Wire guide
• .035” -.045” (0.9 - 1.1mm) Inner Wire Guide
(Installed on Machine)
• Outer Wire Guide (Installed on Machine)
• Black Flux-cored Gasless Gun Nozzle (Installed on
Welding Gun)
• Brass MIG Gas Gun Nozzle
• 2”(51mm) Spindle Adapter (For 8”(203mm) Reel of
wire)
• Regulator
• Gas Hose
• Learn to Weld (LTW1 Manual)
• DVD
OUTER WIRE GUIDE
INNER WIRE GUIDE
.025-.035 (.6-.9mm) INNER WIRE GUIDE
.035-.045 (.9-1.1mm)
.0
30
.0
45
LTW1
"LEARN TO WELD"
DVD
GAS HOSE
REGULATOR
2" SPINDLE ADAPTER (FOR 8" REEL OF WIRE)
IDENTIFY AND LOCATE COMPONENTS
