C-2 ACCESSORIES C-2
POWER MIG (140, 180 MODELS)
3-3/4" (95.3mm)
4"(102mm)
16"(406.4mm)
3-11/16"
8-1/16"
3-13/32"
9/32"(7.1mm) DRILL
3 PLACES
1/4"-20 X 1/2" Hex Head Cap Screw
(2 Required)
1/4"-20 X 1"
Thread Forming Screw
(1 Required)
1/4"-20 X 1/2" Hex Head Cap Screw
(2 Required)

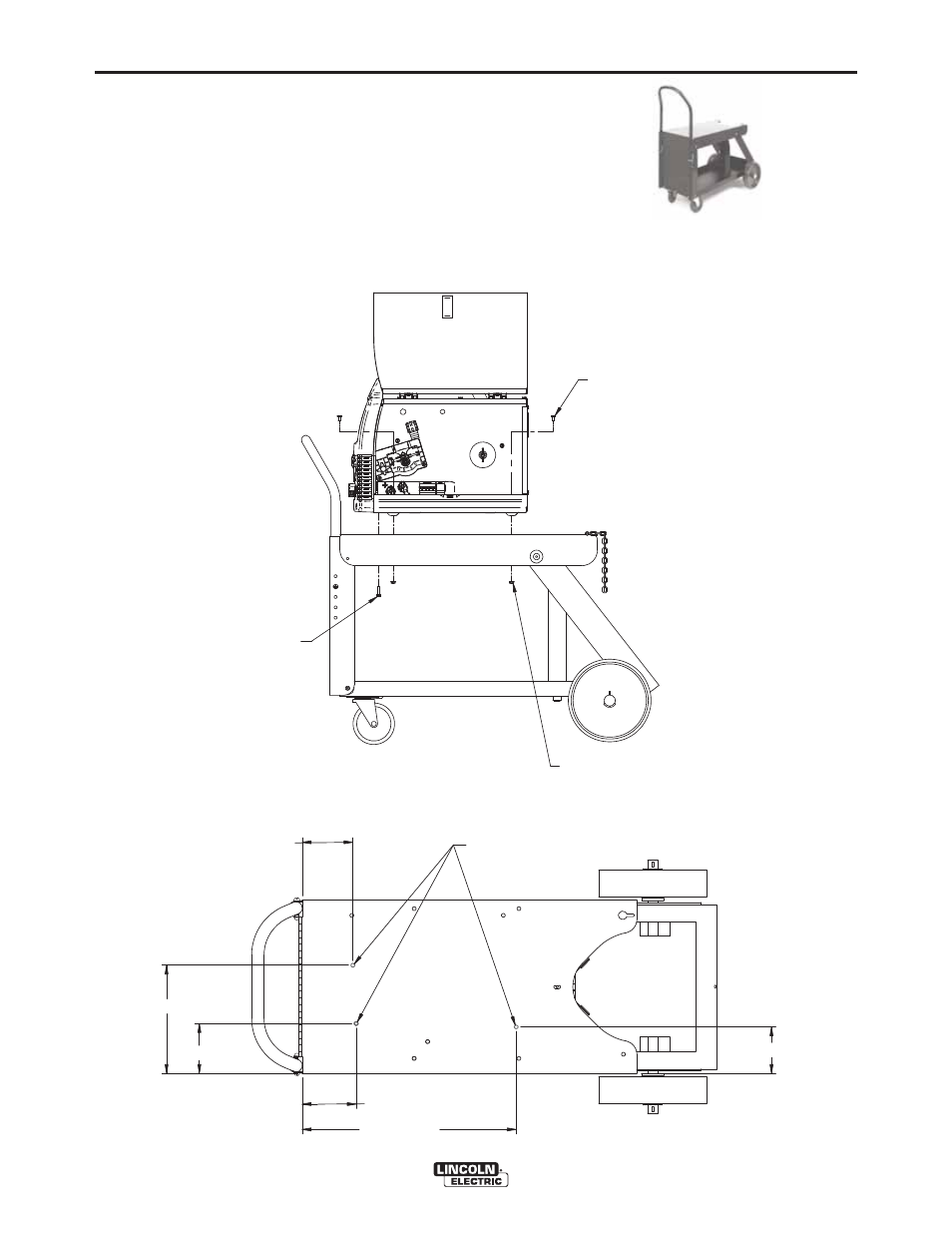

For mounting welding machines to K520 carts that do not have slotted mounting holes,
Drill 9/32” holes (3 places) into the cart top as shown and attach the welding machine to the cart
with the proper hardware shown.
(204.8mm)
(93.7mm)
(96.8mm)
K520—Utility Cart
Heavy duty cart stores and transports welder, 150
cubic foot shielding gas cylinder, welding cables and
accessories. Includes stable platforms for welder and
gas bottle platform, lower tray for added storage
capacity and adjustable height handle.
