RS 300 Door
ROLLSEAL, INC. • 1751 Co Rd 68 • Bremen, AL 35033 • Phone 256-287-7000 • Fax 256-287-7010
Manual Part No. 4801-5316
11. Install NEW End Plate by sliding bearing over shaft.
Fasten the New End Plate using the same method as the
previous removed plate.

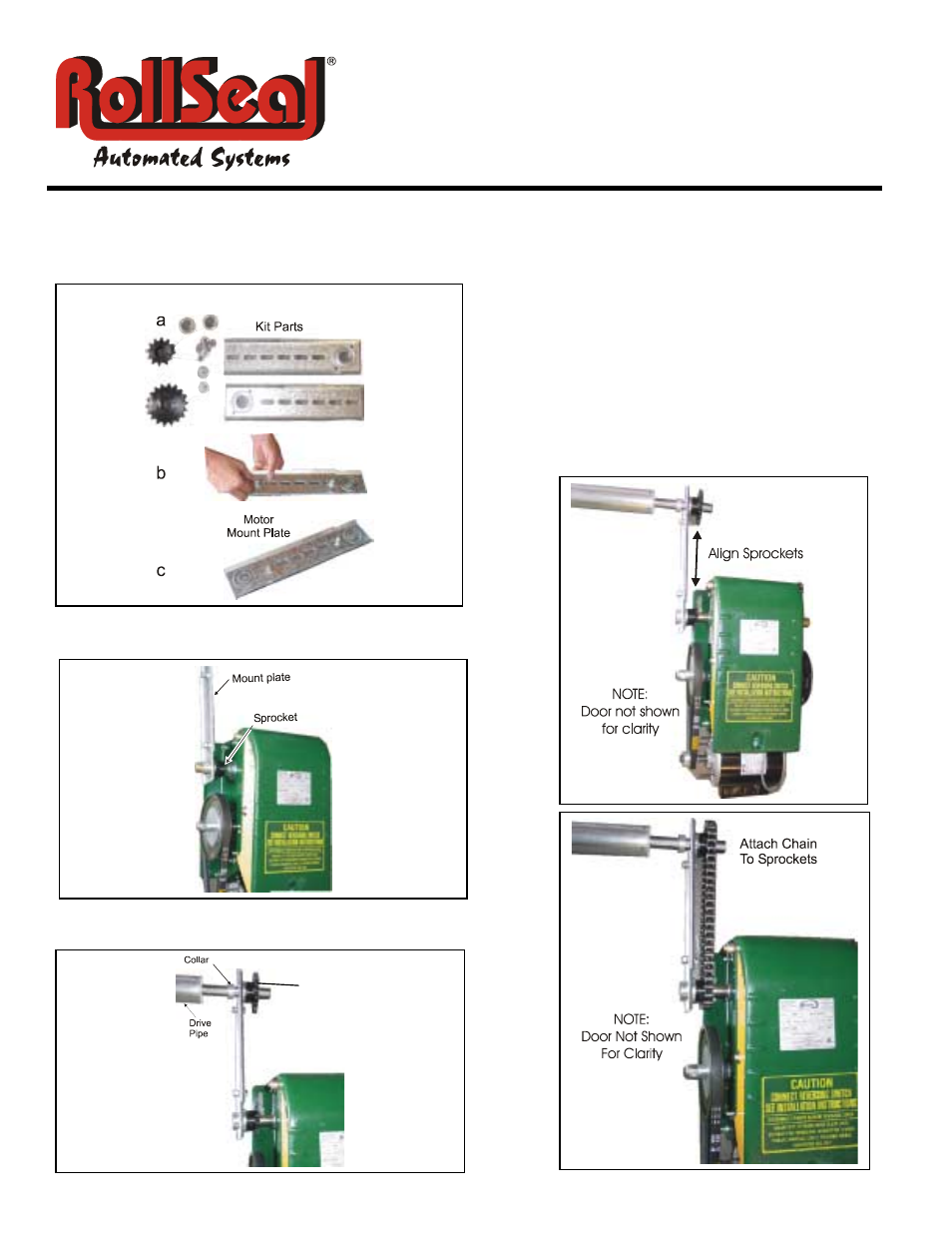

12. Assemble motor mount plate as shown in Fig. 6.
13. Attach sprocket and mount plate to motor as shown on
Fig. 7.
14.
Install and loosely tighten standoff collar to drive
pipe as shown in Fig. 8.
15. Lift motor into place. Fit drive pipe though bearing
of motor mount plate as shown in Fig. 8.
16. Fasten motor to support with screws provided.
17. Install sprocket onto drive shaft as shown in Fig. 8.
18. Align sprockets as shown in Fig. 9. Loosen collar
and move motor mount as required to align sprockets
of motor and drive pipe.
19. Firmly tighten lock screw on collar.
20. Fit chain around bottom sprocket and roll chain onto
top sprocket.
21. Install curtain. Refer to manual 4801-5082.
22. Install cover.
23. Connect electrical power to motor.
24. Installation complete.
FIG. 6
FIG. 7
FIG. 8 Attach gear sprocket to
drive shaft.
FIG. 9
FIG. 10
