Hired-Hand RS-300 Door: Conversion From Tube Motor to Manaras Operator - Manual

Conversion Conversion Conversion Conversion From Tube Motor From Tube Motor From Tube Motor From Tube Motor
To Manaras Motor To Manaras Motor To Manaras Motor To Manaras Motor
RS 300 Door
ROLLSEAL, INC. • 1751 Co Rd 68 • Bremen, AL 35033 • Phone 256-287-7000 • Fax 256-287-7010
Manual Part No. 4801-5316
WARNING WARNING WARNING WARNING
Wiring And Connections Must Comply With All National
And Local Electrical Codes. Installation By Qualified
Electrician Required!
INSTRUCTIONS:
1. Disconnect electrical power to RS 300 Door.

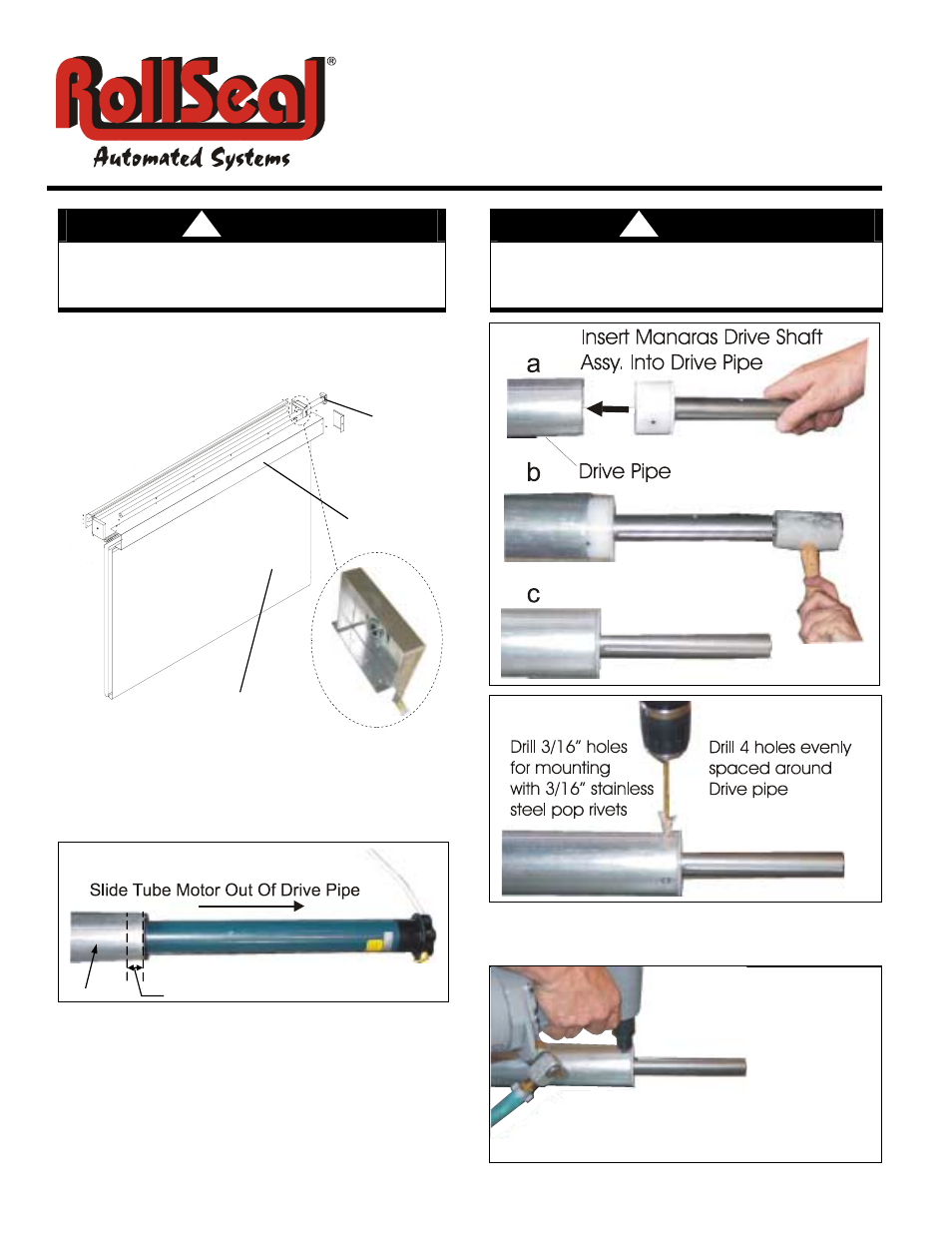

2. Remove cover from door. Refer to Fig. 1.
3. Remove
curtain panel.
4. Unclip Somfy tube motor from end plate bearing.
5. Remove end plate from top assembly.
6. Slide tube motor out of drive pipe as shown in Fig. 2.
7. Cut 1 5/8” off from the Drive Pipe as shown in Fig. 2.
8. Insert Manaras drive shaft assembly into drive pipe as
shown in Fig. 3abc.
9. Drill four holes (3/16" dia.) around drive pipe for
mounting with 3/16" stainless steel pop rivets as shown in
Fig. 4. Space holes evenly around drive pipe.
WARNING WARNING WARNING WARNING
Disconnect All Electrical Power Sources To RS 300 Door
Before Installation Of Replacement Motor!
10. Install 3/16" stainless steel pop rivets to drive pipe as
shown in Fig. 5
! !
FIG. 3
FIG. 4
Install 3/16" stainless
steel pop rivets
FIG. 5
FIG. 1
Exploded View
Of Top Assembly
Cover
Tube
Motor Mount
Curtain panel
NEW End
Plate Bearing
FIG. 2
Drive Pipe Cut 1 5/8”
