Hired-Hand Emergency Back-Up and Alarms: High Temperature Monitor Installation - Manual (Page 2)

HIRED-HAND, INC. • 1733 Co Rd 68 • Bremen, AL 35033 • Phone 256-287-1000 • Fax 256-287-2000
Manual Part No. 4801-5152 rev 8-03 Page 2 of 4

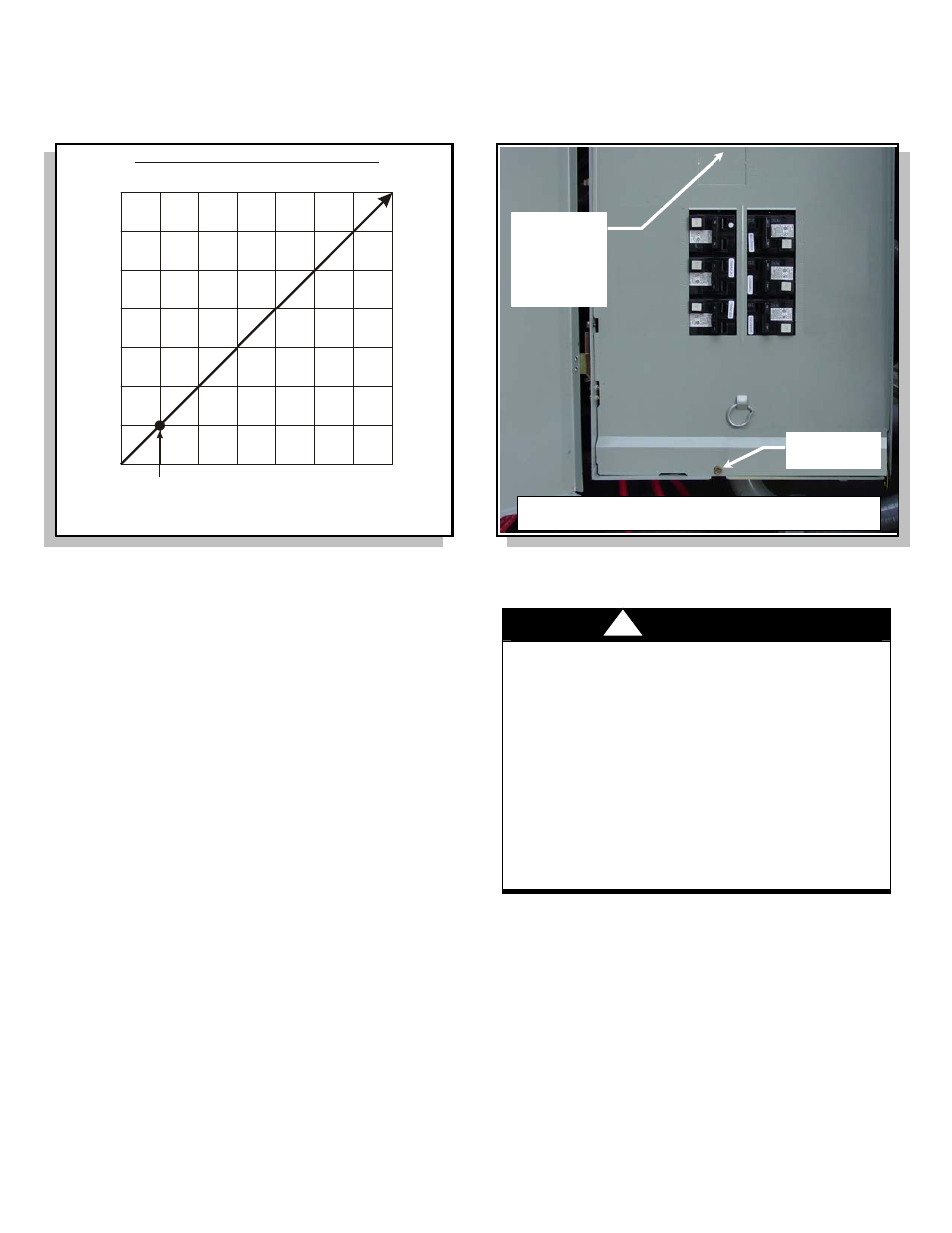

FIGURE 2
HOW BREAKERS ARE RATED
Circuit breakers are rated for a specific current and up to
104°F(40°C) ambient temperature. After 104°F(40°C),
the current handling capability decreases. Refer to
Figure 2.
Example: A 100 Amp circuit breaker will carry 100 Amps
up to 104°F. At 122°F(50°C), the breaker will
only carry 90 Amps. At 140°F(60°C), the
breaker will only carry 80 Amps.
The temperature inside a breaker box can run as high as
30°F+ or more above the room temperature.
NOTE: Breaker box temperature measurements will not
be reliable unless the temperature probe is
placed inside the secondary cover, near the top
center area.
INSTALLATION
1. Determine the distance from the alarm to the desired
temperature measurement location. Ensure the
provided temperature probe cable and alarm cable
lengths are not exceeded.
2. Install the temperature probe inside the breaker box
secondary cover near the top center. Secure the
probe in place using the supplied adhesive-backed
nylon cable clip. Refer to Figure 3.
FIGURE 3
WARNING
HAZARDOUS VOLTAGES
Failure To Follow These Instructions May Result in Injury
Or Death!
• Do Not Open the Breaker Box Secondary Access
Cover Without Removing Power From The Breaker
Box.
• DO NOT Connect The Alarm Connections Cable To
An Electrical Outlet Or Power Source.
• Only A Certified Electrician Should Install Or
Remove The Temperature Monitor Probe From the
Breaker Box.
3. Secure the High Temperature Monitor enclosure to a
nearby wall or flat surface with customer supplied
hardware and the enclosure mounting holes. Ensure
the monitor enclosure is mounted vertically with the
cables pointing downward.
4. Connect the alarm wires (Black and White) to the
Farm Hand Alert Alarm as shown in the following
wiring diagrams. Refer to Figure 4.
Temperature
(Degrees F)
Rating
Percentage
Lost
4% 8% 12% 16% 20%
104.0
111.2
118.4
125.6
132.8
140.0
Published
Rating
BREAKER DERATING CHART
!
Secondary
Access Cover
Place probe at
the top center
and inside the
secondary
breaker box
cover.
WARNING: Do Not Open The Secondary Access Cover With
Power Applied To The Breaker Box.
