Farm manager network, Inset a zone controller inset a – Hired-Hand Farm Hand Series: Heat Zone User Manual
Page 12
Part No. 4801-5129 rev 6-04
Farm Hand Heat Zone
10
9.1

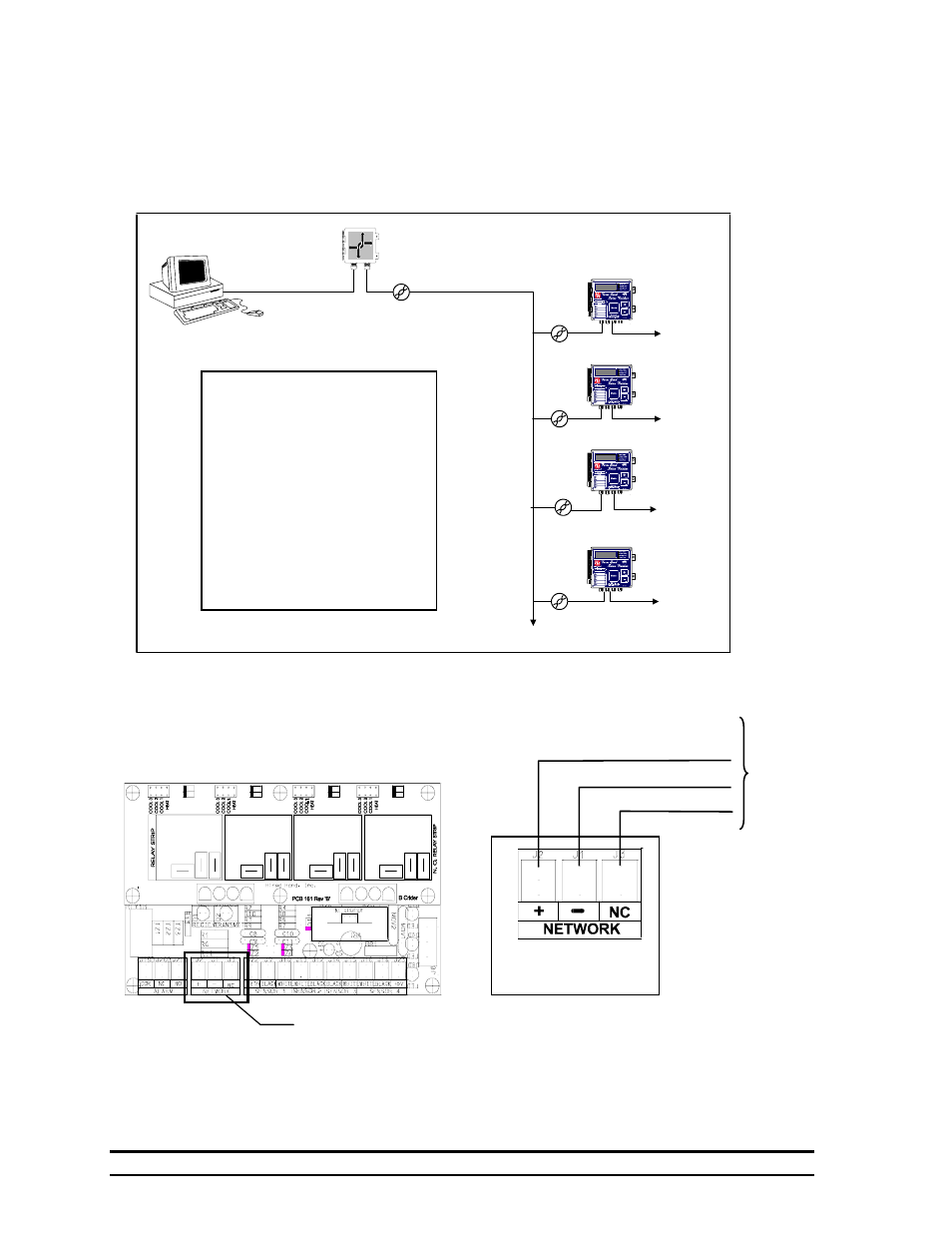

Connecting directly to Farm Manager over the HH.Net
Router
RS-232
Twisted Pair Cable
Up to 32 Nodes
To
Equipment
To
Equipment
To
Equipment
To
Equipment
To Rest of Network
IBM Compatible with Win '95 O/S
Farm Manager Network
Node
0
Node
1
Node
2
Node
3
Farm Hand Controller
Farm Hand Controller
Farm Hand Controller
Farm Hand Controller
The Farm Hand Heat Zone
Controller can be connected
directly to the HH.Net just like
any Farm Hand Network
compatible controller. The
Network address for the Heat
Zone must be set using Program
Parameter P40 to a unique
address between 8 and 32. See
the Farm Manager Software
manual Part No. 4801-5049.
Farm Hand Heat Zone Controller
Inset A
Zone
Controller
Inset A
Pos (+) - Red
Neg (-) - Black
NC - Green
To Other
Controllers
