Hired-Hand Evolution Series 3000/3001: Variable Output - Manual (Page 4)

Part No. 4801-5315 Rev 9-03 Evolution Variable Output Page 4 of 12
3. Introduction
The Evolution Variable Output is one of Hired-Hand's latest addition to the electronic controller product line.
Evolution Variable Output (EV-VAR) is used to vary the speed of fans or to vary light luminosity. The Off or On
switch setting overrides the main control system. To allow variable control of the EV-VAR output, connect EV-
VAR to a Hired Hand Evolution 3000/3001 controller or to a Farm Hand Stage Master Controller with the EV-VAR
switch set on VARIABLE. See wiring diagrams for proper connections.
The Evolution Variable Output is available in two versions: The 4KW/4HP model and the 8KW/8HP model.
The Evolution Variable Output models can be used in conjunction with Evolution 3000/3001 Control Systems or
Farm Hand Control Systems (Stage Master, etc.) for variable operation of lights or fans.
For information regarding the Variable Output models with the Override Pot, refer to manual number 4801-5318.
4. Specifications
4.1 Part Numbers and Electrical Ratings
Part No. Model No. Outputs
6607-8031 EV-VAR 4KW / 4HP 2
6607-8032 EV-VAR 8KW / 8HP 4
DEVICE RATINGS
Outputs for Each Circuit Max Current (A)
Lights 2 KW @ 120 VAC Fused @ 20 A
Fans 2 h.p. @ 240 VAC Fused @ 20 A

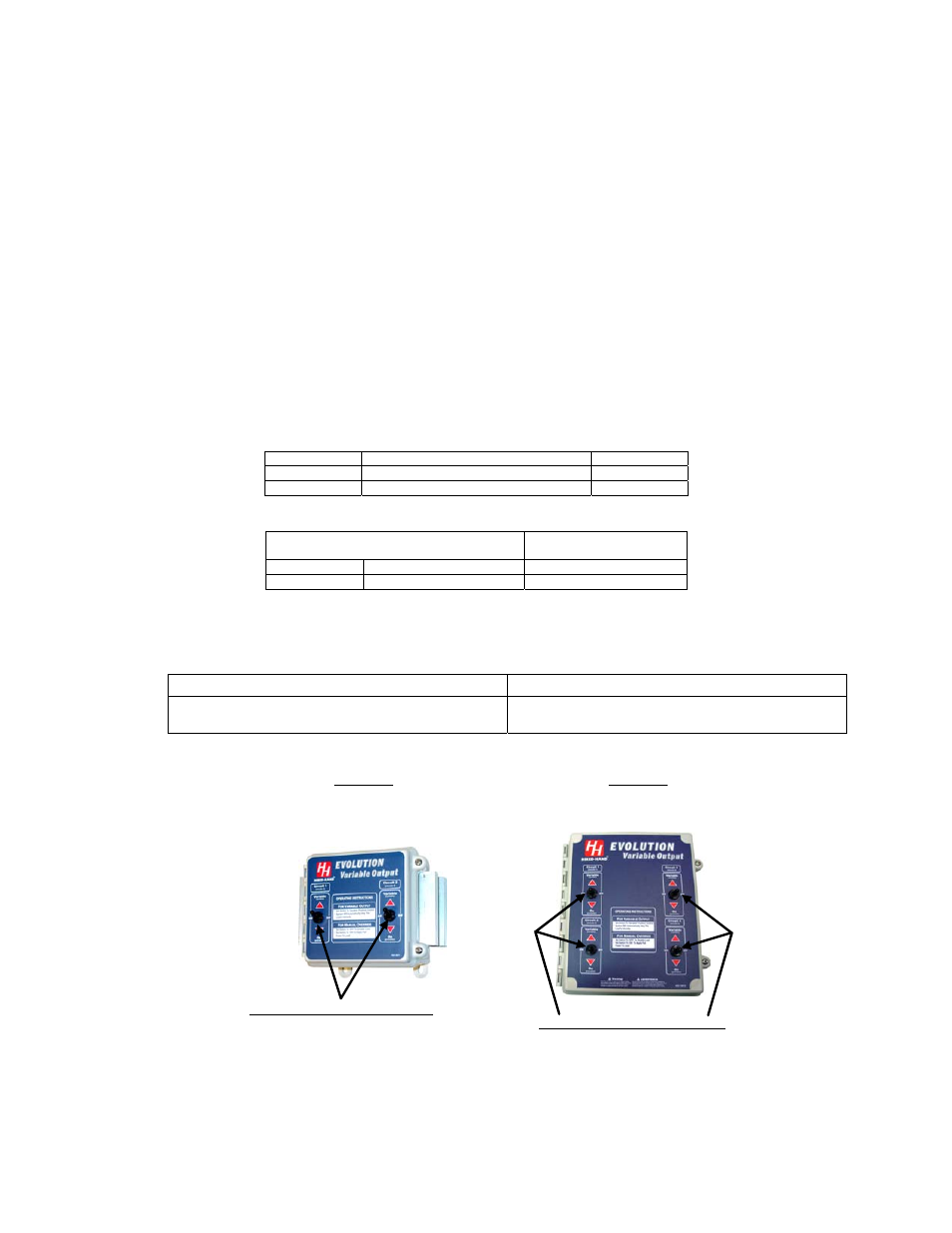

4.2 Features
EV-VAR 4KW / 4HP EV-VAR 8KW / 8HP
2 Manual Override Switches
(3 positions: Variable – Off – On) 4 Manual Override Switches
(3 positions: Variable – Off – On)
EV-VAR
8 KW
8 HP
EV-VAR
4 KW
4 HP
Two Manual Override Switches
Four Manual Override Switches
