Warning, Installation and preparation, 18 inch polarcool caster installation – Hired-Hand Polar Cool: Portable Evaporative Cooling System User Manual
Page 6
Manual No. 4801-5035 Rev 8-07
PolarCool
Page 6 of 22

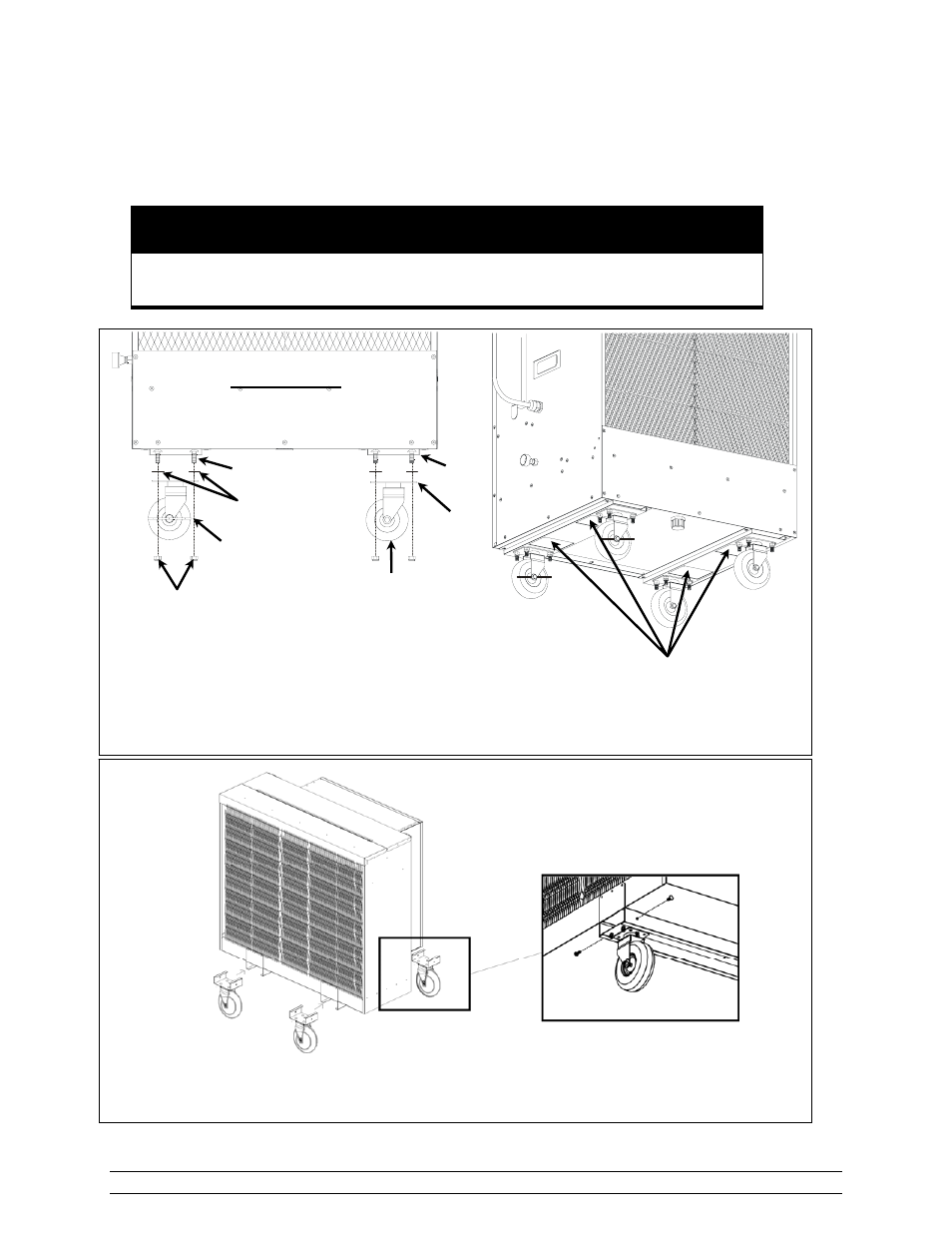

5. Installation and Preparation
5.1 Wheel
Installation
1.
Insert wheel bracket into fork lift channels.
2.
Align holes and attach 1/4" bolt.
3.
Repeat for all four wheels.
Warning!
PolarCool Appliance Is Heavy!
When Installing Wheels, Provide Adequate Support To Maintain Balance Of Appliance!
Bolt Access Holes
Nylon-Insert Nuts
Swivel Wheels
w/Lock
Carriage Bolts
Rigid Wheels
w/o Lock
18 inch PolarCool Caster Installation
1.
Place wheel bracket against the caster support channel
with the 5/16 washers in between as shown above.
2.
Align holes and attach 5/16-18 x 3/4” carriage bolts,
5/16 washers, and 5/16-18 nylon-insert nuts as shown
above.
3.
Repeat for all four casters.
Washers
24, 36, & 48 inch PolarCool
Caster Installation
IMPORTANT!
Ensure the washers are placed between
the wheel bracket and the wheel channel.
Caster
Support
Channel
Caster
Bracket
