Hired-Hand Universal Ray Tube Heaters: AG2 Series Rev.11-07 User Manual
Page 8

THERMOSTAT
CORD
W
G
B
THERMOSTAT
CORD
G
W
B
120/24V
TRANSFORMER
8
2.0
Installation • Wiring
AG2
Series
Before field wiring this appliance - Check existing wiring; replace if necessary.
Note: If any of the original wire as supplied with the appliance must be replaced, it must be replaced with
wiring material having a temperature rating of at least 105° C.

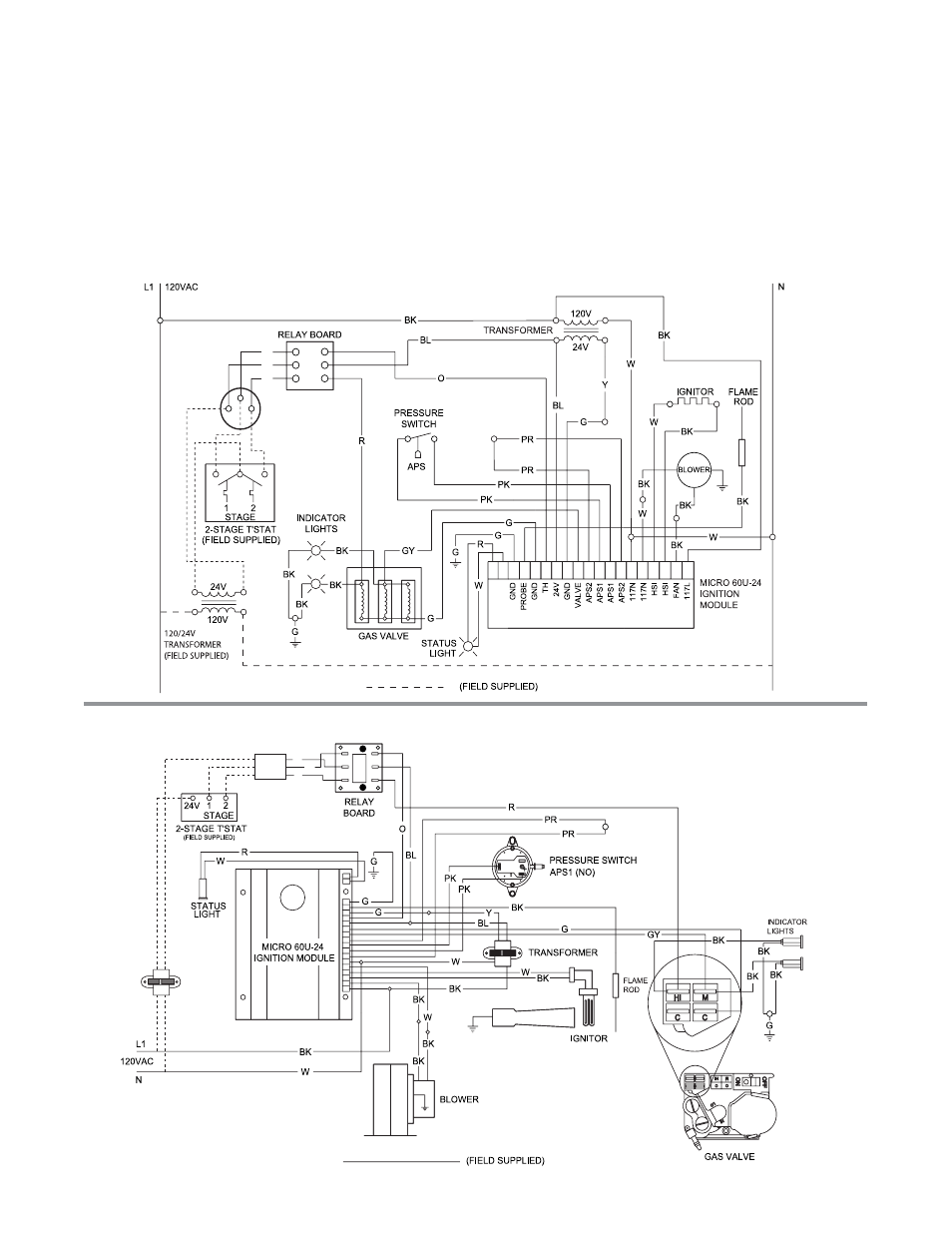

Figure 2.3 • Internal Wiring Diagrams
A. Micro 60U-24 Ladder Diagram
B. Micro 60U-24 Block Diagram
