Brocade Mobility RFS4000 Controller Installation Guide (Supporting software release 4.3.0.0 and later) User Manual
Page 26
Gigabit Ethernet on the Brocade Mobility RFS4000 Controller
4
16
Brocade Mobility RFS4000 Controller Installation Guide
53-1001933-02
2. Insert the SFP transceiver into the corresponding port on the controller.
3. Once the SFP transceivers are properly seated in their ports, close the bails to
lock the transceivers in place.
4. Insert the fiber optic cables into the installed transceivers.

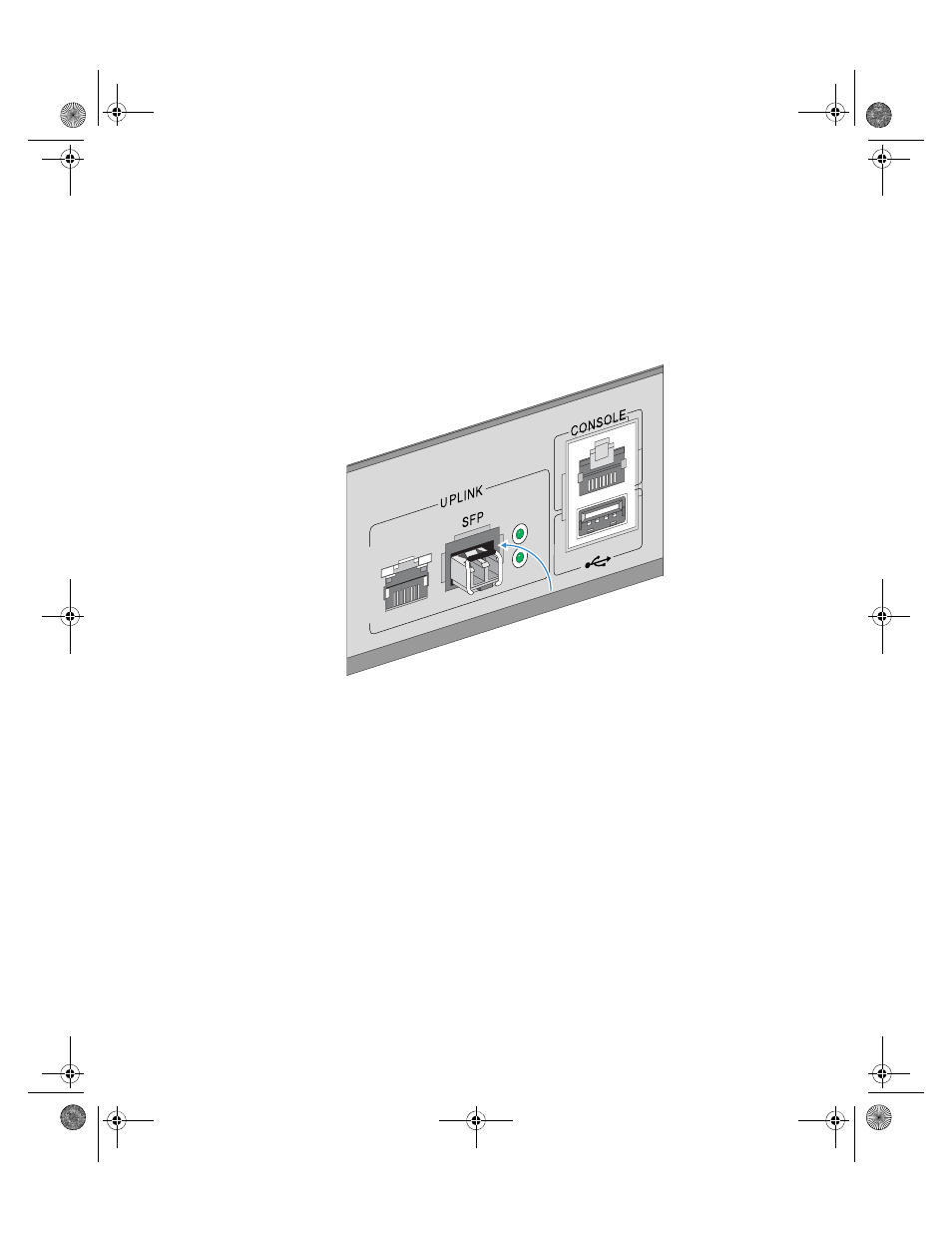

Close bail to lock
SFP transceiver in place
MobilityRFS4000ControllerInstallGuide.book Page 16 Friday, June 10, 2011 1:32 PM
