18 Brocade 5300 Hardware Reference Manual
53-1000858-04
LED activity interpretation
3
• Two Ethernet Port LEDs
• One port status LED for each port on the switch. These LEDs are arrayed below each pair of
Fibre Channel ports. The port LEDs are located in the array in the same relative positions as
the ports.
• One power supply LED above the AC power switch on each power supply on the non-port side
of the switch
• One fan status LED at the bottom of each fan assembly on the non-port side of the switch
LED locations

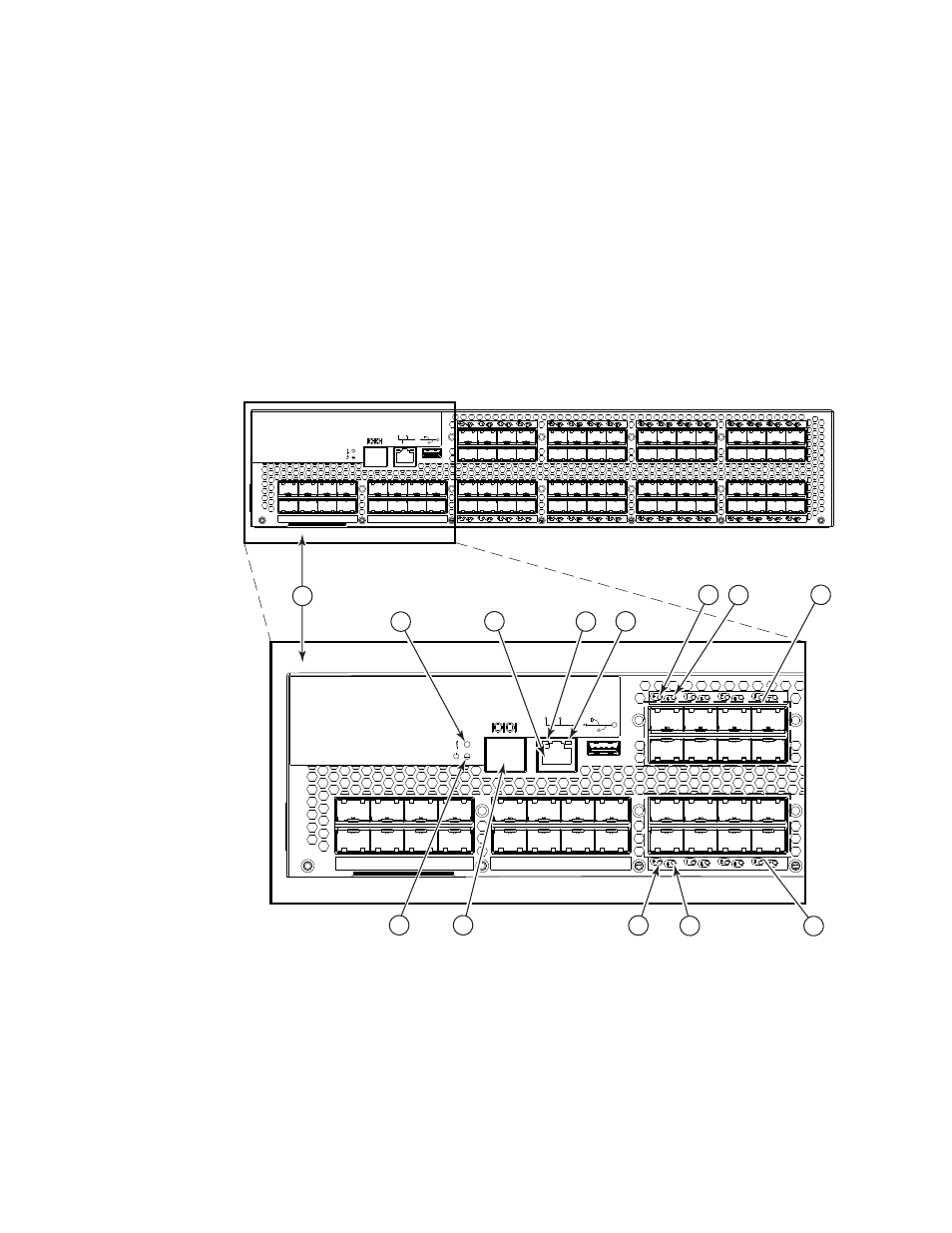

Figure 3 shows the port side of the Brocade 5300.
1
2 7 6 5
3 4 11
8 9
12
10
13
