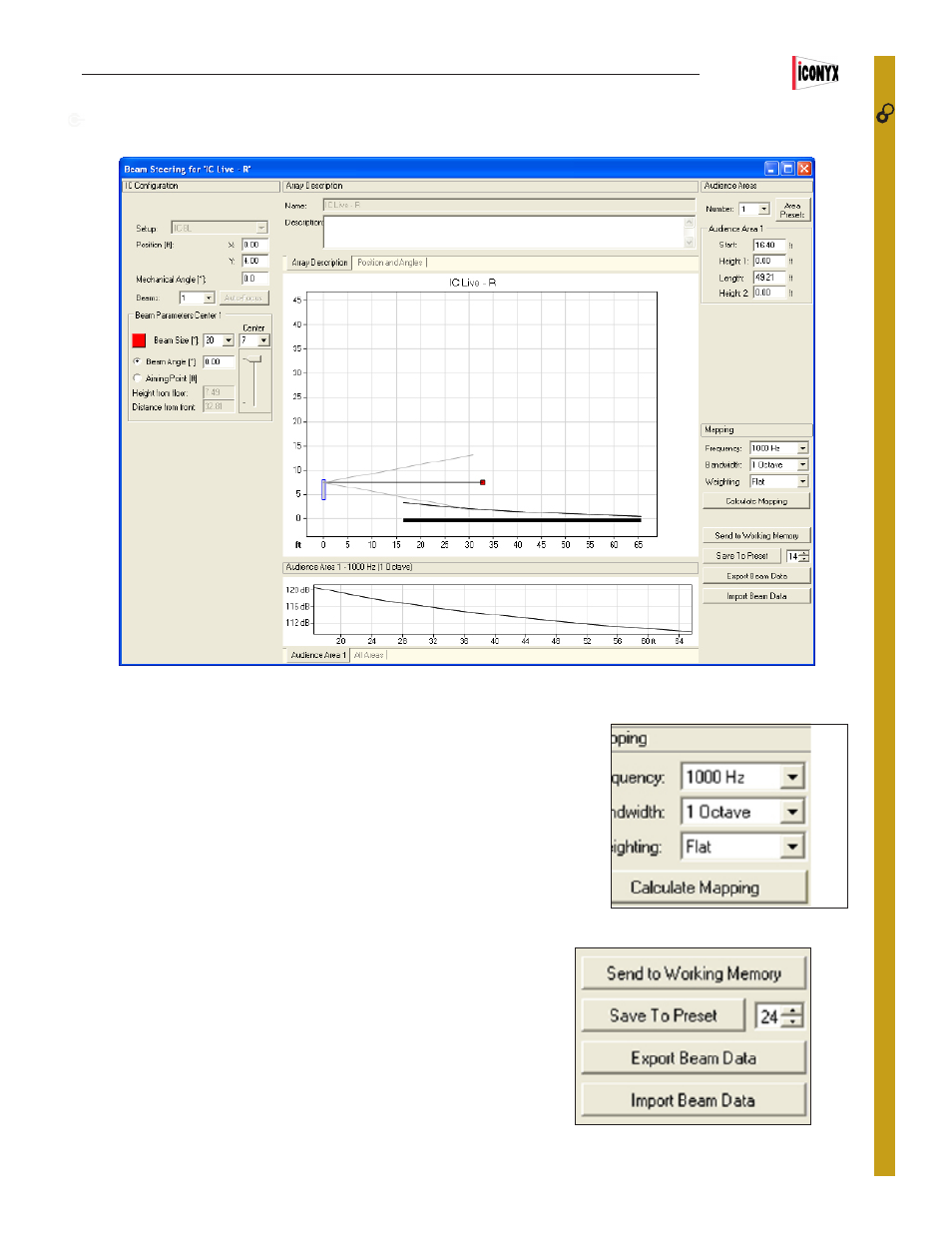

The opening Beam Steering window displays the setup criteria and the beams aiming angle and focal point.

It does not map (calculate and display) the Array’s beam until the Calculate Mapping

button is pressed. You’ll find it on the right side of the screen in the Mapping setup sec-

tion. The Mapping section controls the calculation’s frequency, bandwidth and weight-

ing.

Note the four control buttons in the lower right corner of the Beam Steering window.

Pressing Send to Working Memory will send any beam steering configuration setting

changes you have made directly to the array’s DSP and write over any previous set-

tings.

Pressing Save to Preset will store the configuration settings as a configuration Preset in

the selected preset file. We’ll go into Presets in more detail later.

Note that in both cases, only the beam steering information is being sent to the

Array’s DSP.

Export Setup will generate a .rhs setup file that can easily be imported into an

EASE and EASE JR model for a detailed acoustic evaluation. Beam Steering

shows you the array’s vertical coverage, but not the horizontal coverage or the

effect of reflections on intelligibility and clarity. EASE and EASE JR do.

Import Setup allows you to import into Beam Steering any changes you may

have made in the configuration settings in EASE or EASE JR.
