Renkus-Heinz IC2-FR User Manual

Page 33

At this point the changes you have made in beam steering have not been sent to the working memory (DSP) in the associated array or

stored as a Preset.

In the beam steering window, select either Send to Working Memory or Save to Preset. The two commands are in the lower right of the

beam steering window. Send to Working Memory will send the beam steering settings direct to the array’s DSP and write over any previous

settings. Save to Preset will store the beam settings in the designated Preset. Note that the Beam Steering Presets control only the beam

steering data; EQ, compression, etc. configuration settings are controlled in the Control Mode.

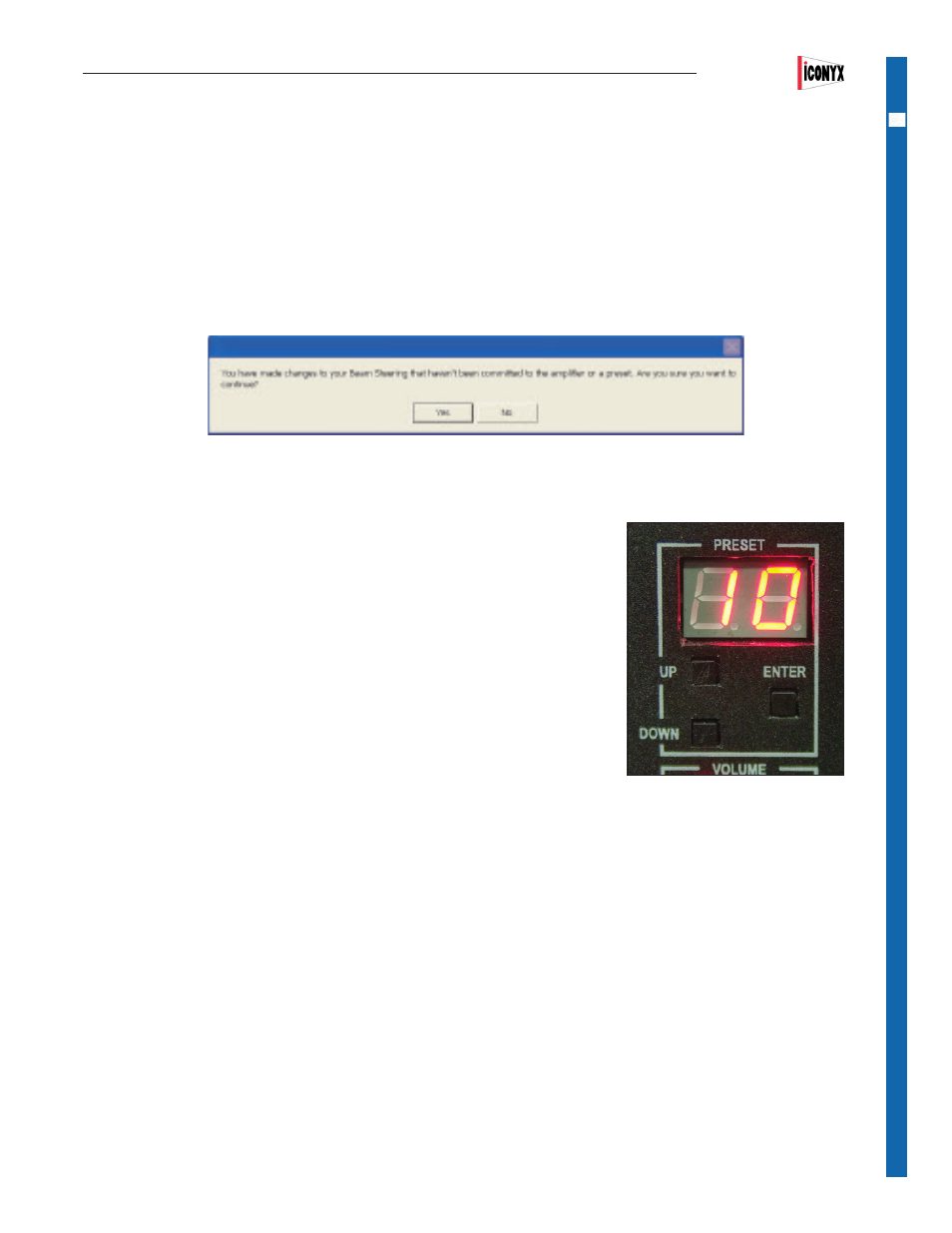

If you attempt to leave Beam Steering without saving the setup information, a prompt will remind you that you need to save the settings if

you want to keep them.

Note that Presets can not be saved to an array in the virtual world. Presets can only be saved to real loudspeaker via the network.

PRESETS

arrays can store up to 10 different configurations as Presets in the array’s DSP memory.

For example, you might optimize one configuration for small events on the main audience

area and another for larger occasions when a balcony is used. The Presets include the

beam steering data, as well as gain, EQ ,compression, etc. settings. Switching between the

preset configurations is easy. They can be changed from either the rear of the array, from the

controlling computer or, if one is provided a wall mounted remote control. Third party control-

lers, such as those supplied by Crestron can also be used to configure the array and select

presets using the RS485 connection.

Arrays include the following factory installed Presets.

On single IIC

arrays:

Preset 10: is factory installed and locked to “Flat” for use in transducer testing and should not be used during normal operation.

Preset 14: was installed by Quality Assurance during final performance testing at the factory and was not locked. It may have

been deleted and replaced by a user installed preset.

Presets 11, 12 13,15,16, 17, 18 & 19 are set aside for user installed presets.

On stacked IC

arrays;

Preset 20: is factory installed and locked to “Flat” for use in transducer testing and should not be used during normal operation.

Preset 24: was installed by Quality Assurance during final performance testing at the factory and was not locked. It may have

been deleted and replaced by a user installed preset.

Presets 21, 22, 23, 25,26, 27, 28 & 29 are set aside for user installed presets.

The digital readout on the array’s rear mounted control panel displays the number of the selected Preset.
