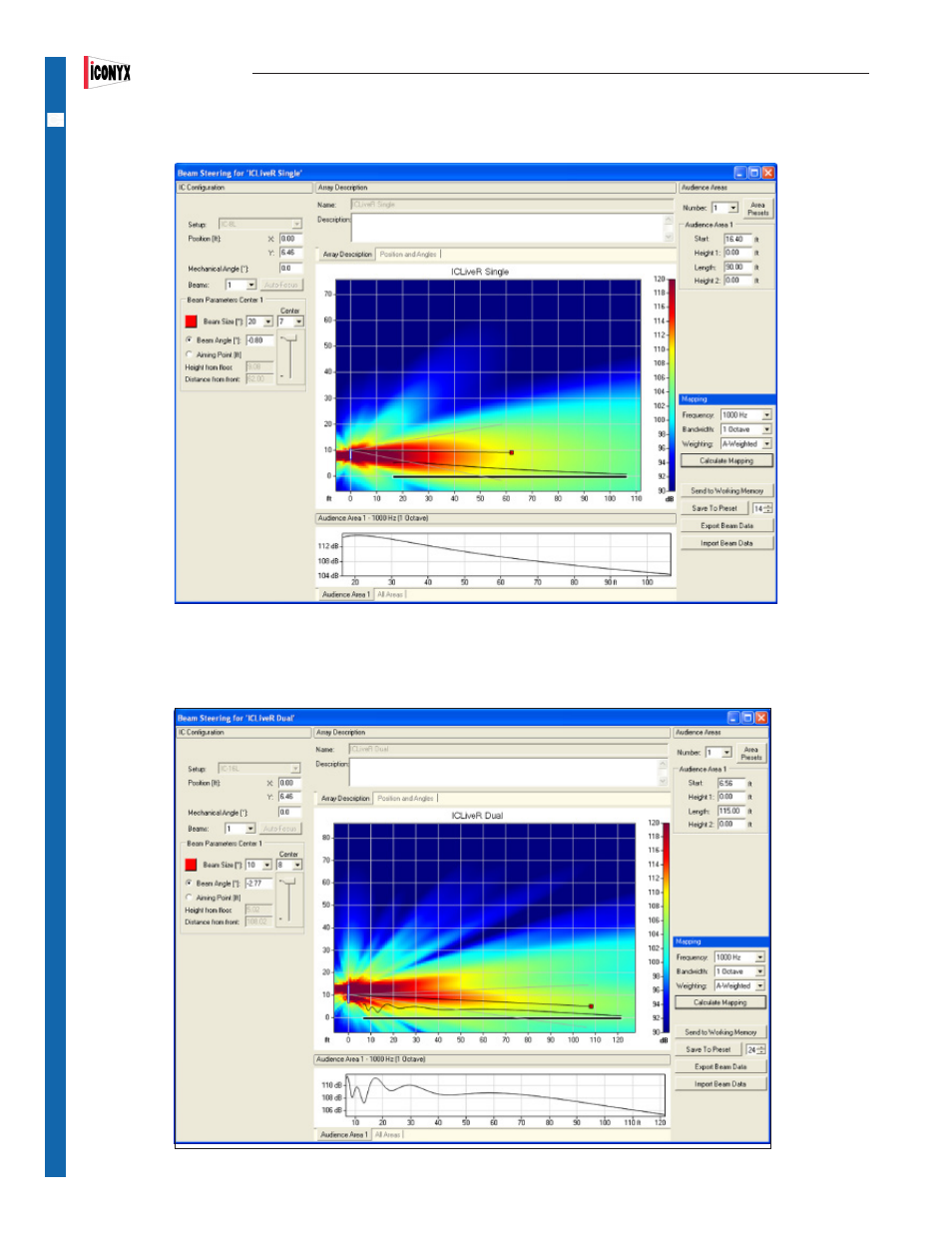

The next graphic shows a much larger room, 100 feet deep instead of 50 feet. Note that the beam opening set at 20 o to obtain a longer
throw. Still the level is starting to fall off at the rear of the room. Maybe we should consider a Dual ICL-FR array.
The next graphic shows an even larger room, one requiring a 125 foot throw. Note that the larger, more powerful ICL-FR-DUAL array was
chosen and the opening angle reduced to 10 o.
