CONNECTIONS

Pump Type

Voltage

Inlet

Outlet

Fig. No

K7-2

230/1/50

G1 Female

G1 Female

1

K9-2

230/1/50

G1 Female

G1 Female

1

K9-2

400/3/50

G1 Female

G1 Female

2

K12-2

230/1/50

G1 Female

G1 Female

1

K12-2

400/3/50

G1 Female

G1 Female

2

T6-2

230/1/50

G1 Female

G1 Female

3

T12-2

230/1/50

G1 Female

G1 Female

3

L5-4S

230/1/50

G 1¼ Female

G1 Female

5

L7-4S

230/1/50

G 1¼ Female

G1 Female

5

X201

230/1/50

G 1¼ Female

G 1¼ Female

4

PLUG

PRIMING

OUTLET

INLET

INLET

PLUG

PRIMING

OUTLET

INLET

PLUG

PRIMING

OUTLET

TURNER LTD

TURNER LTD

TURNER LTD

INLET

OUTLET

PLUG

PRIMING

INLET

PLUG

PRIMING

OUTLET

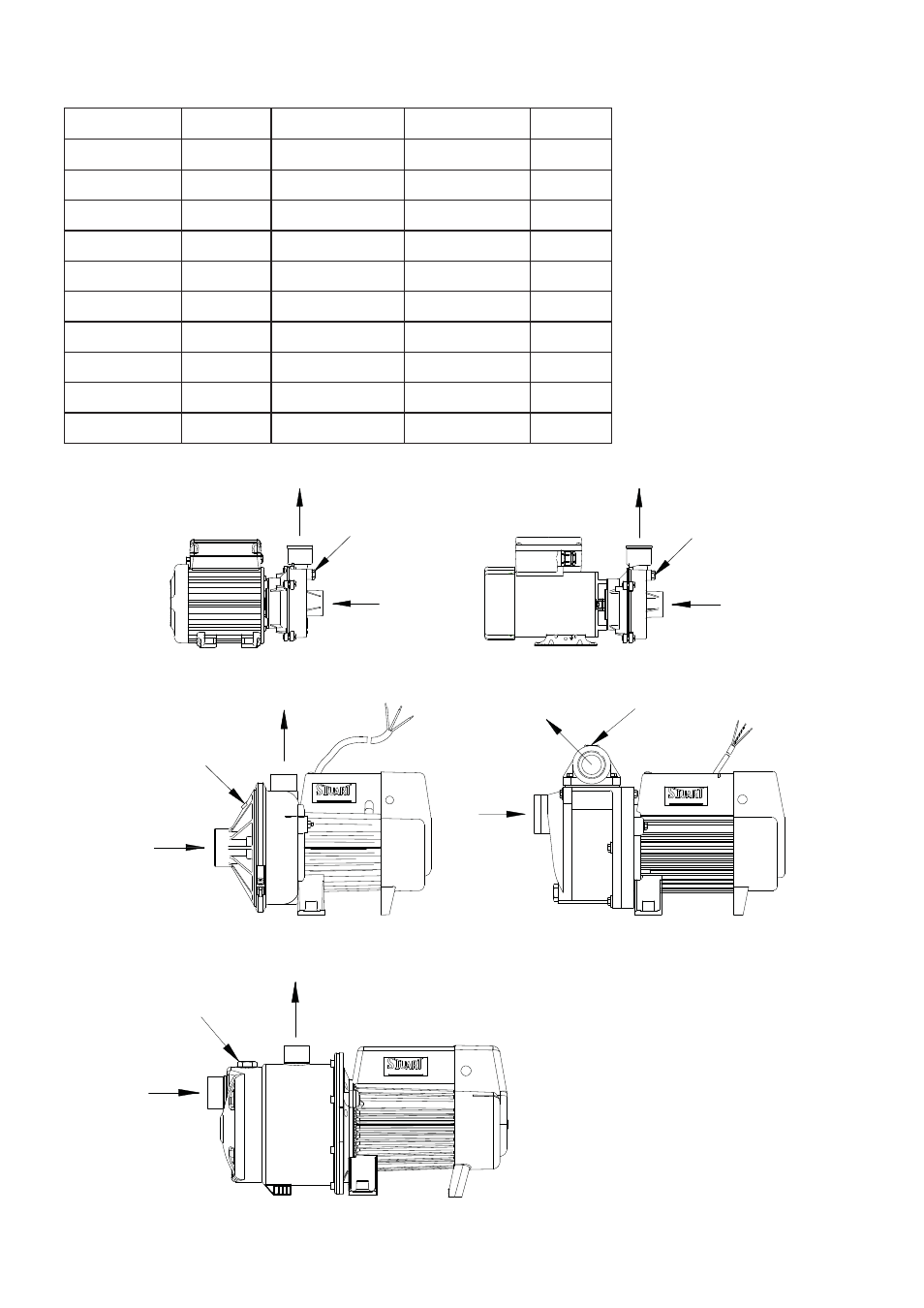

Fig. 2

Fig. 4

Fig. 5

Fig. 3

Fig. 1
