- 12 -
Cont ...

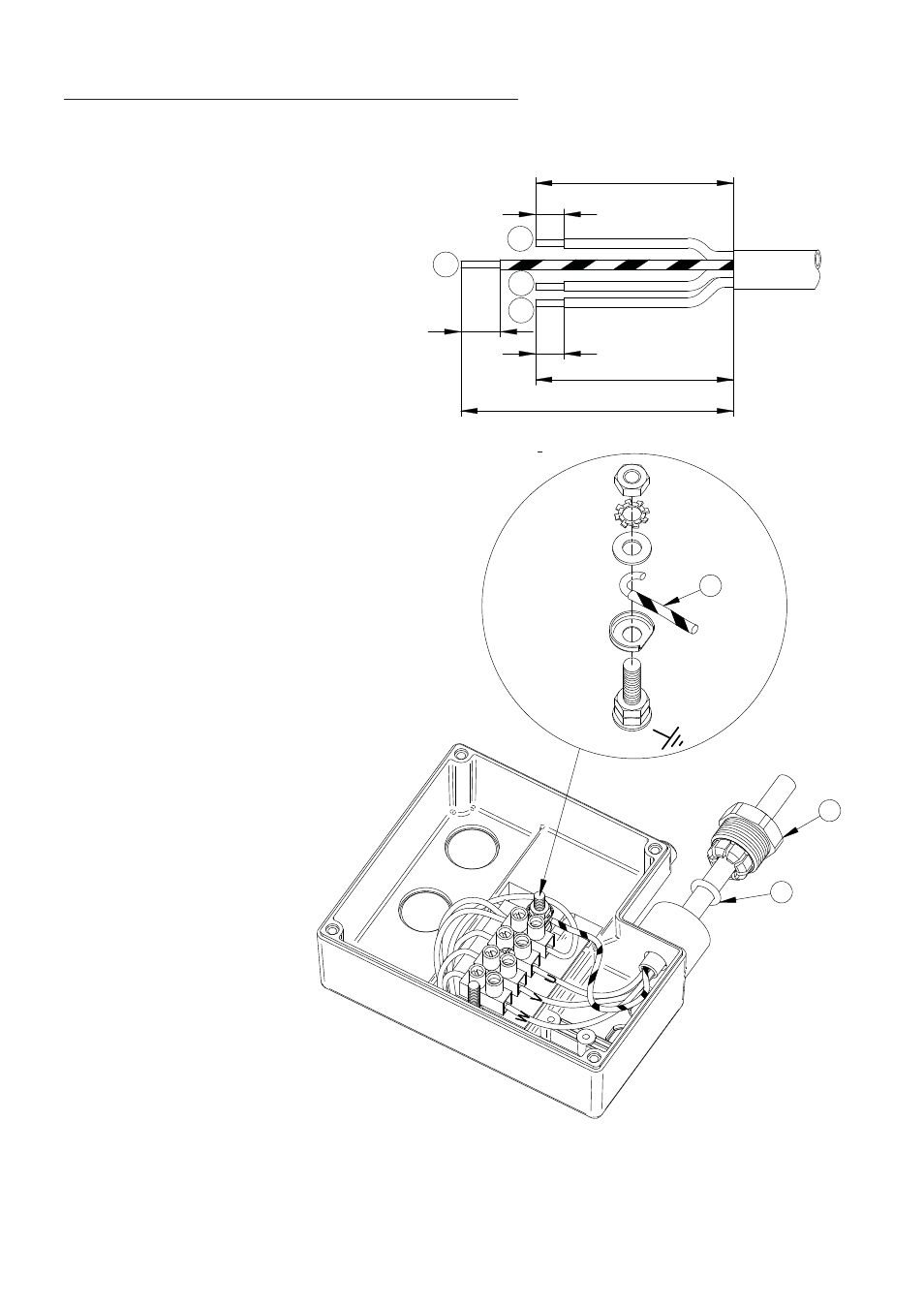

Cable Gland & Supply Cord Fitting Instructions (Kennet three phase range)
The cable gland assembly Fig. 15, (items 1 & 2) provides the necessary protection
against ingress of solid objects and moisture as well as providing cable retention.
Assembly instructions are as follows:-
1. Ensure selected cable sheath
diameter is within the permitted
range (7.5 to 9.5 mm).
2. Strip and prepare the cable
sheath and insulators as shown
in Fig. 13.
3. Disassemble cable gland as
shown in Fig. 15 and insert cable
into position ensuring ‘O’-ring (item 2)
is placed over the cable before the
clamping insert (item 1) is tightened.
4. Consolidate the stranded conductor
ends by twisting and shape the earth conductor
as shown in Fig. 14 (item 3).
5. Route the cable as shown in Fig. 15.
6. Remove earth terminal post clamping
components and assemble as shown in
Fig. 14 ensuring shaped conductor is
orientated as shown and all strands of
the conductor are clamped between
the washers.
7. Insert and secure the three off phase
conductors ensuring all conductor
strands are clamped.
8. Confirm cable routing is as shown in
Fig. 15 and assemble and secure
terminal box lid.
3
2
1
Fig. 14
Fig. 15
E
L1
L3
L2
80
12
8
70
110
8
Fig. 13
(Dims. in mm)
