- 4 -
Cont ...

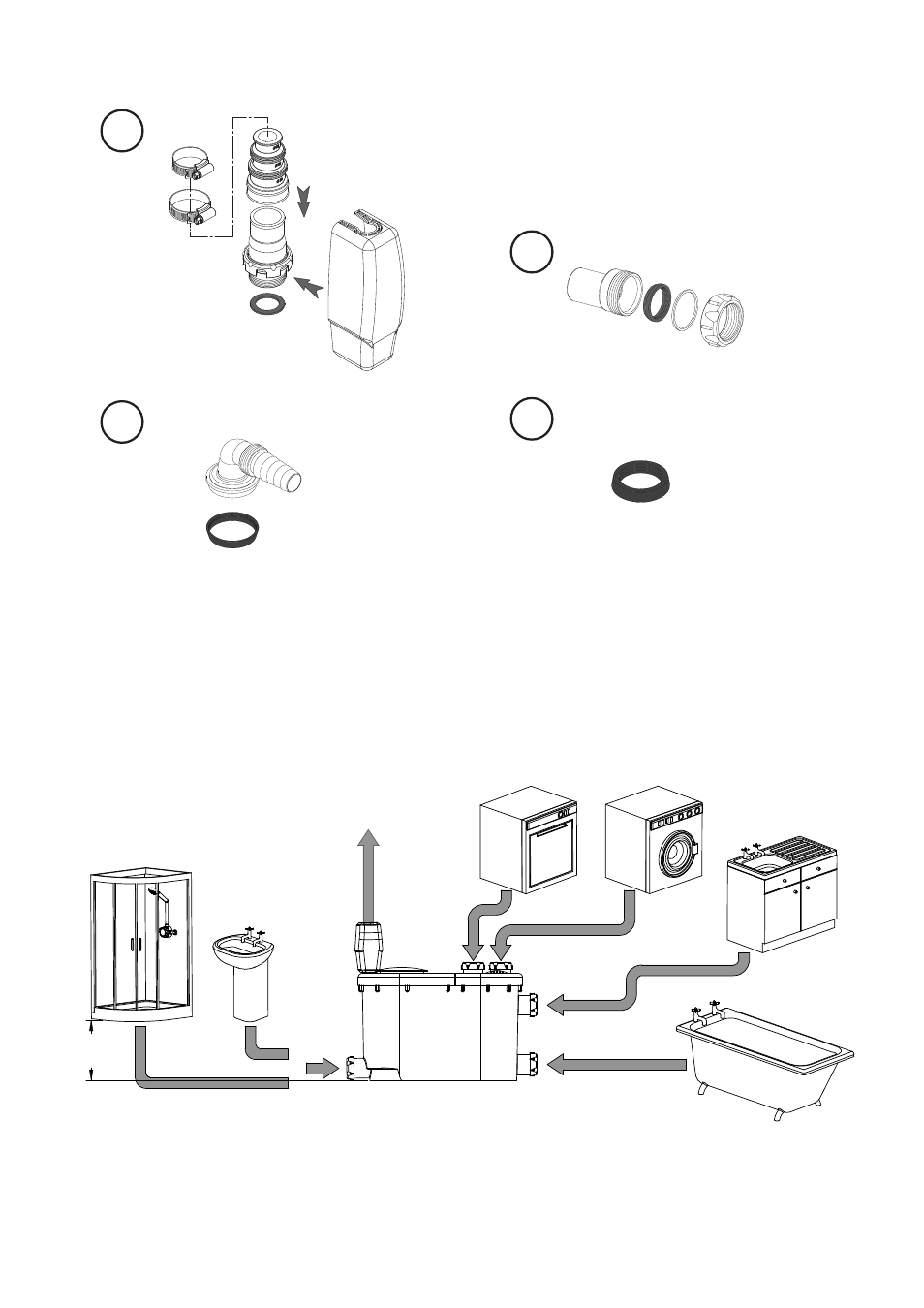

ACCESSORIES CHECKLIST
1 LOCATION
1.11 The unit can be connected under a washbasin or in a closet. Allow a minimum
height of 220 mm above the unit, for maintenance and servicing.
1.12 The unit must be positioned away from heat sources, such as radiators and
heaters.
1.13 Care must be taken to protect the unit against frost and freezing. All pipes at risk
of freezing must be protected by thermal insulation.
2 CONNECTIONS
2.11 Note 1: Only connect one sanitary device per inlet connection.
2.12 Note 2: The shower tray/bath (lowest waste outlet) must be a minimum of
180 mm above the base of the macerator, to ensure necessary drainage
and must not contain a trap.
IMPORTANT: With the product
removed from its packaging check
for any damage prior to installation.
If any damage is found contact Stuart
Turner Ltd within 24 hours of receipt.
Qty 1
Qty 2
Qty 1
Hose Connector
Inlet Connector
Non-Return Valve Assy, Cover,
Flexible Outlet Connector &
Clips
Qty 5
Reducing ring to
suit 32 mm (1¼ ")
diameter pipe
A
B
C
D
See Note 1
180mm
See Note 2
Outlet 32 mm (1¼ ")
OR
