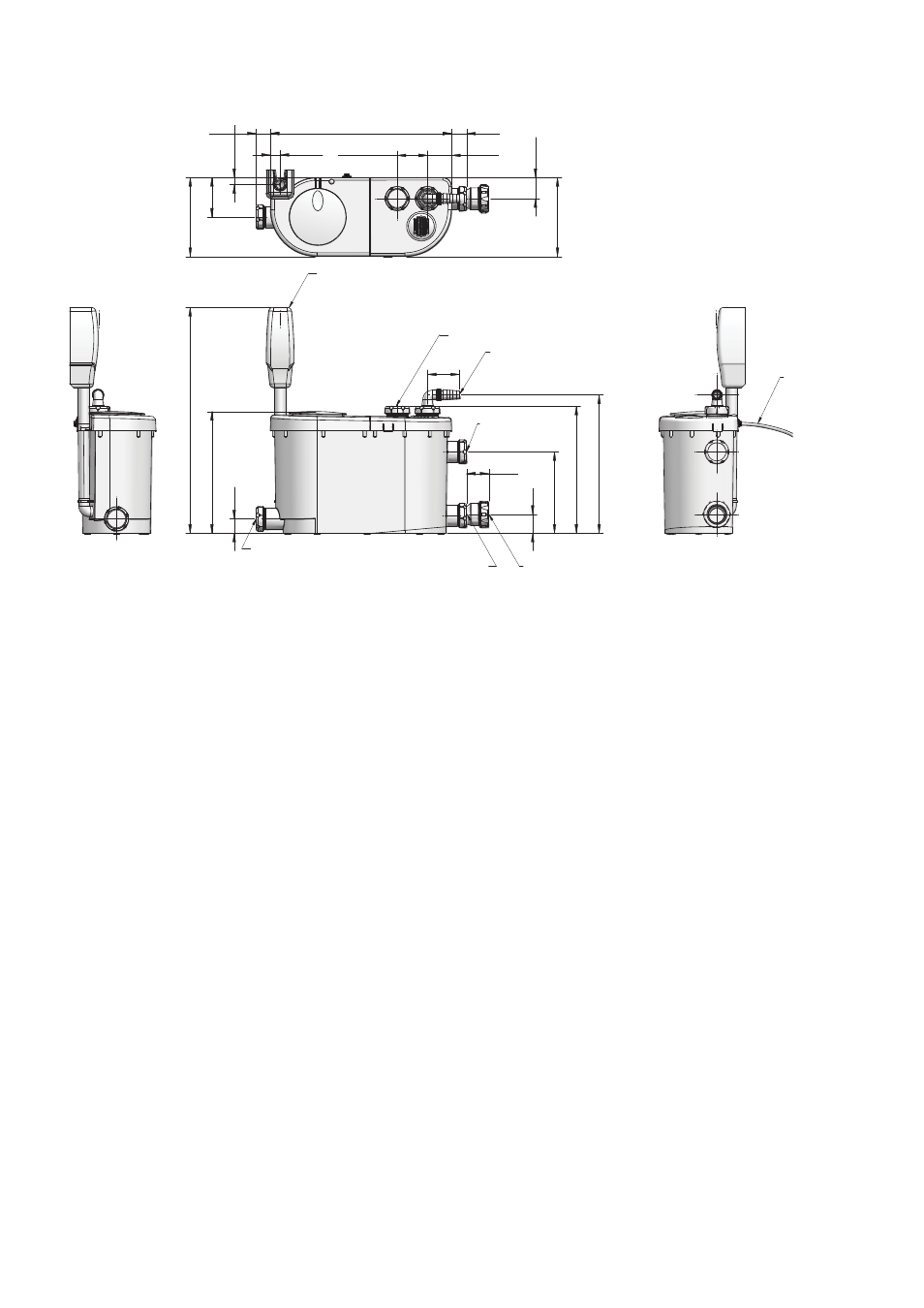

Stuart Turner Pumps - Lifting Station - Manual (Page 13)

- 13 -
180
413
55
48
,5
180
OUTLET ADAPTOR
MATERIAL: FLEXIBLE RUBBER
SUITABLE FOR PIPE SIZE
O 32mm O.D.(1 1/4")
INLET CONNECTION
INLET CONNECTION
32,5
69 CRS
90
34
INLET CONNECTION
73
22
15
+
INLET CONNECTOR (PUSH FIT)
SUITABLE FOR PIPE SIZE
O 40 mm (1 1/2")
O 41 > 43 mm O.D.
OPTIONAL INLET SWIVEL
CONNECTOR
SUITABLE FOR 20 mm HOSE
OR G3/4 THREAD
52
0
27
8
33
31
5
29
0
43 185
51
1,5 METRES
SUPPLY LEAD
REDUCING RING (PUSH FIT)
SUITABLE FOR PIPE SIZE
O 32mm (1 1/4")
