Stuart Turner Monsoon Extra S3.0 bar Single User Manual

Page 5

- 5 -

The pipework feeds to the storage tank should be of adequate size to ensure

replenishment rate of tanks is sufficient to meet needs of pump.

Care should be taken in the design of pipework runs, to minimize the risk of air locks.
To prevent loss of water pressure through pipework use 28 mm suction pipework to the

pump minimising 90° bends.

Isolating valves (not supplied) should be fitted on the suction and delivery pipework to

enable easy isolation and access to the pump.

The 1” inline strainer as supplied should be fitted in the suction line to the pump between

the isolating valve and the pump. This will eliminate the risk of debris or scale entering the
pump.

Pipework Connections (Cold)

The pump must be supplied with a dedicated feed direct from the cold water

storage tank.

Ensure the pipework size from the cold water storage tank to the pump is of adequate

size and a minimum of 28 mm.

The supply must be air free and connections of the feed pipe to the tank should be via a

tank connector, positioned at a slightly lower level (25 mm minimum) than the feed pipe to
the hot water cylinder.

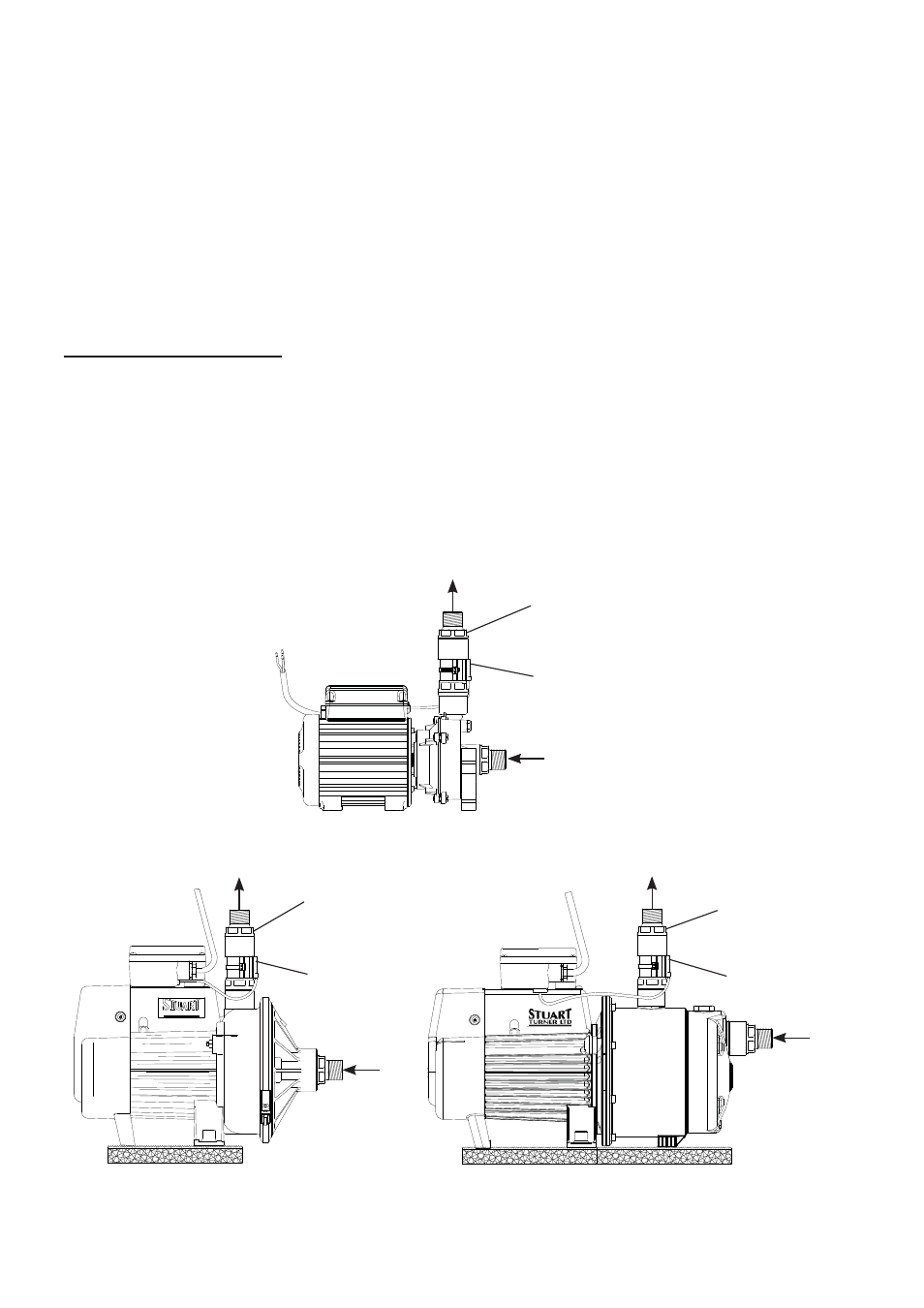

S1.4 bar Single

Fig. 5

TURNER LTD

S3.0 and S3.5 bar Single

Fig. 6

S4.5 bar Single

Fig. 7

Outlet

Outlet
Fitting

Inlet

Flow Switch
Body

This manual is related to the following products:

Monsoon Extra S3.5 bar Single Monsoon Extra S4.5 bar Single
