Supply Cord Replacement
If the supply cord is to be changed or is damaged, it must be replaced with a special cord
assembly available from Stuart Turner or one of their approved repairers.
On disassembly note the cord retention and routing system. Reassemble to the same
pattern.
For information on cable connection consult the wiring diagram and cable gland fitting
instructions.
Intermediate Connecting Cord Replacement (Monsoon S3.0, S3.5 and S4.5
models only)
These pumps incorporate an additional cord which connects the main terminal box to
the motor terminal box. If this cord is damaged, it must be replaced with a special cord
assembly available from Stuart Turner or one of their approved repairers.
On disassembly note the cord retention and routing system. Re-assemble to the same
pattern.
For information on cable connection consult the wiring diagram.

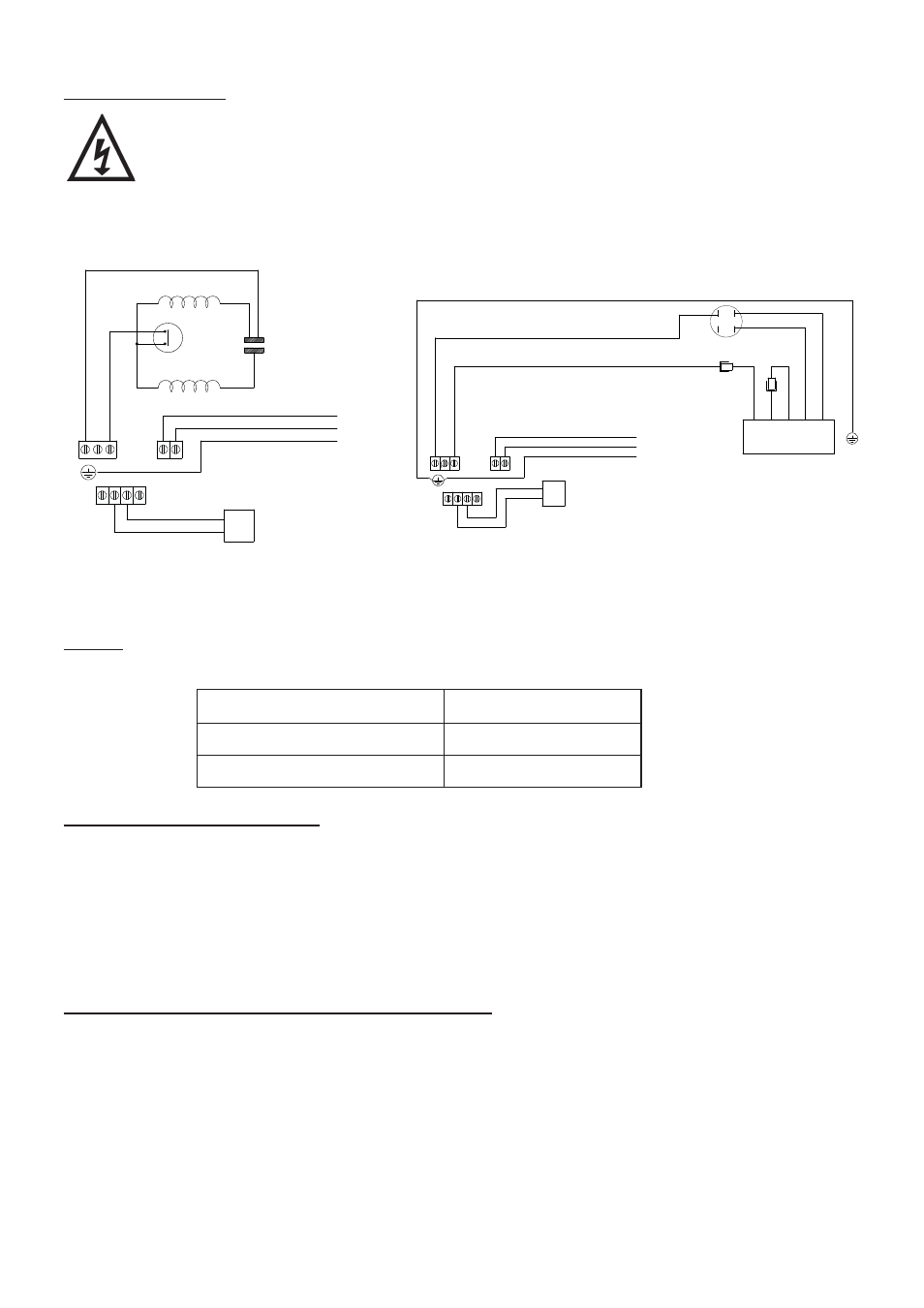

Wiring Diagrams
Parallel wiring of two single pumps is not recommended.
The supply cord and internal wiring within the terminal box are routed
and secured to ensure compliance with the electrical standard
EN 60335-1. It is essential that any disturbance of this internal wiring
is avoided and the factory routing and securing of all internal wiring is
always
maintained.
Fuses
The following fuse size should be used with the appropriate pump:
Model
Fuse Size (AMPS)
Monsoon Extra S1.4 bar
5
All Other Models
13
Cont ...
FLOWSWITCH
REED (S2)
GREEN / YELLOW
BLUE
BROWN
L
M
A
N
N
S2 S2
L
E
N
S1
S1
230 VAC/1PH/50Hz
SUPPLY
BLUE
BROWN
CAPACITOR
MOTOR
GREEN / YELLOW
BLA
CK
BRO
W
N
WHITE
BL
UE
BL
ACK
A
M
CAPACITOR
BLAC
K
BLUE
BROWN
BR
OW
N
L
INK
W
IRE
BLUE
FLOWSWITCH
REED
S1
S1
GREEN/YELLOW
230V,1 PHASE,50 Hz SUPPLY
N
L
E
THERMOTRIP
MAIN WINDING
START WINDING
N
N
L
S2
S2
Monsoon Extra S1.4 bar Single
Fig. 14
Monsoon Extra S3.0, S3.5 and S4.5 bar Single
Fig. 15
