Supply Cord Extension

The pumps are fitted with a supply cord to the following specification:-
Monsoon S1.4 bar:- . . . . . . . . . . . . . . . . HO5VV-F3 G 0.75 mm² - 6 Amp rated cable.
Monsoon S3.0, S3.5 and S4.5 bar:- . . . HO7RN-F3 G 1.0 mm² - 10 Amp rated cable.
If the supply cord is to be extended, a cord of the same specification should be used.

Any connections or junction boxes used should be specifically suited for the application
and installed in accordance with the manufacturers instructions.

Cable Gland Fitting Instructions

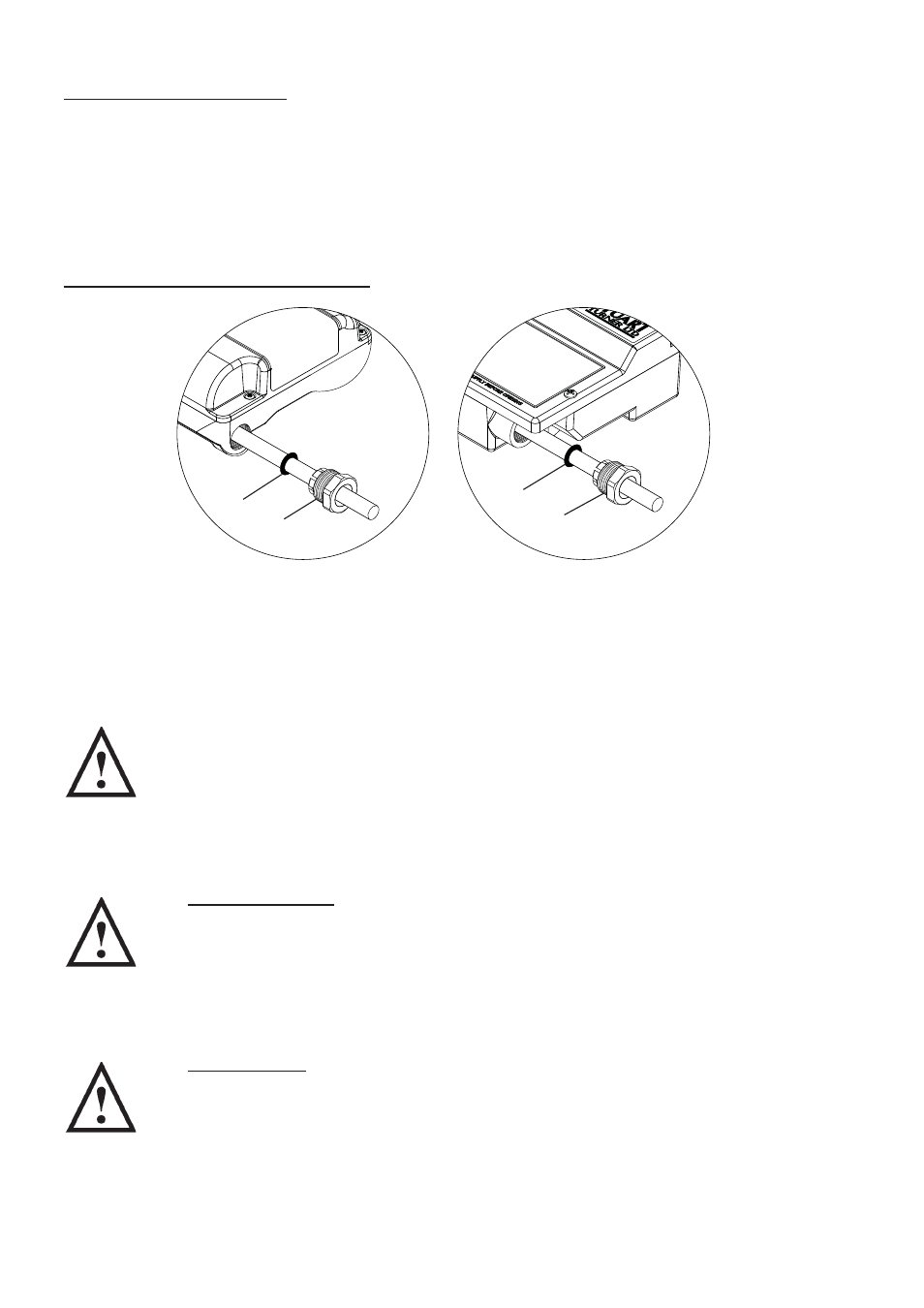

To enable correct assembly of the cable gland the ‘O’-ring (1) must be placed over the

cable before the clamping insert (2) can be tightened.

Note: Cable diameter range:- 6.5 mm to 9.5 mm.

STEP 5 COMMISSIONING

WARNINGS:

The motor casing can become very hot under normal operating

conditions, care should be taken to ensure it cannot be touched

during

operation.

Do not run pump without guards and terminal box lid correctly fitted.

The pump chamber must be full of water at all times. Seal damage will

result if the pump runs dry.

1. System

Flushing

This pump incorporates push-in connectors and plastic components that

must not come into contact with solder flux, acid-based descalents or

aggressive cleaning agents. The pipework system should be flushed out

prior to the pump being connected to ensure any contaminants/chemical

residues and foreign bodies are removed from elsewhere in the system.

2. Water

Supply

Always ensure that water storage capacity is adequate to meet the

demand. Ensure the pump chamber is full of water before starting the

pump. Failure to do this could result in seal damage. To ensure dry

running does not occur the pump must be primed as described in the

priming section.

Do not run pump dry.

Cont ...
