Cold water connection:
2.27

The cold water supply: Must be a DEDICATED AIR FREE supply via a tank

connector, and must be positioned at a slightly lower level (25 mm minimum) than

the feed pipe to the hot water cylinder.

Do not connect to the mains.

2.28

Location: The pump must, for optimum performance, be sited as close as

possible to and never more than 4 metres from the HOT WATER cylinder. The

pump should always be sited BELOW the HOT WATER take-off from the cylinder.

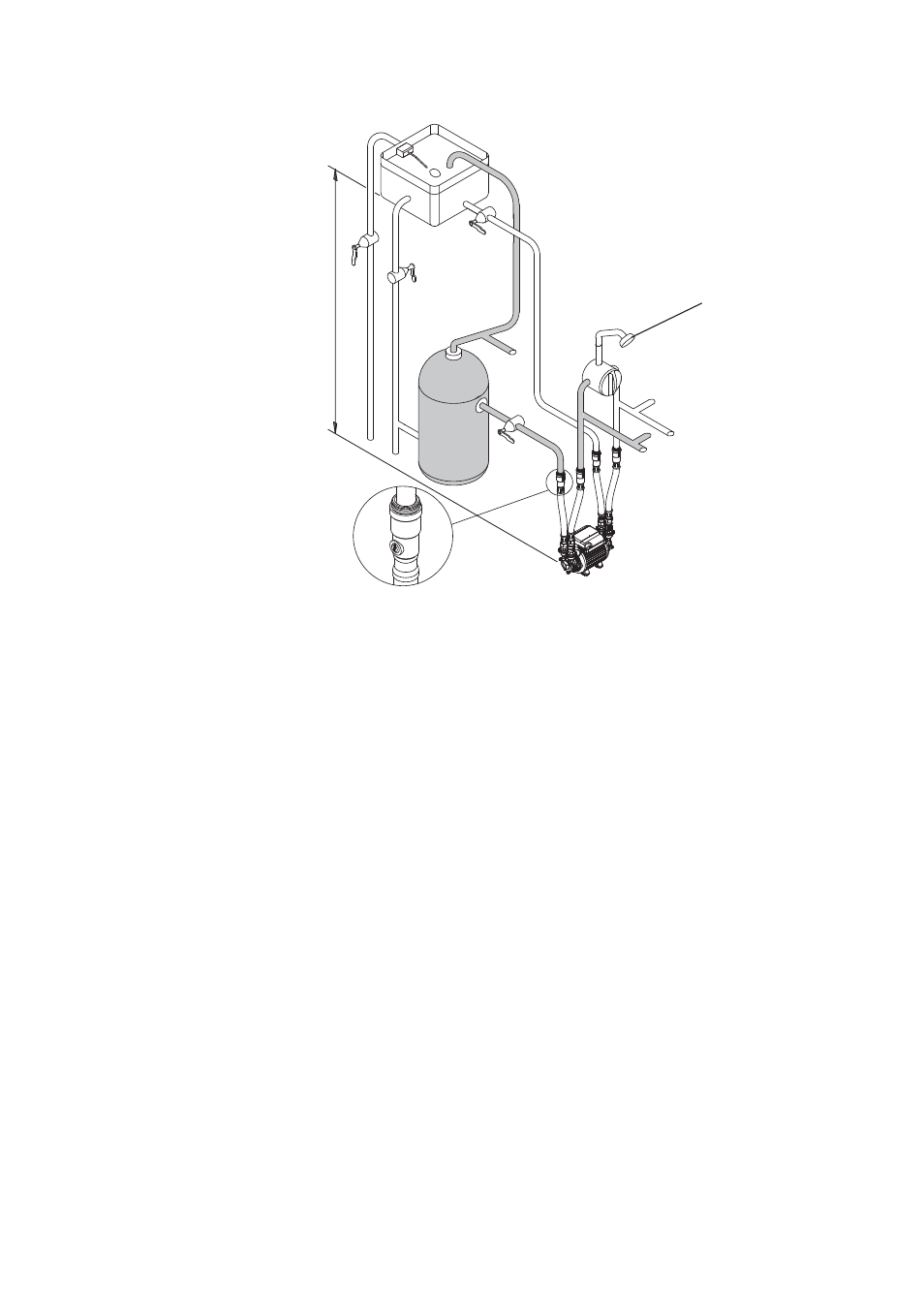

2 LOCATION - TWIN PUMP

Positive Duty Twin Pump System

Fig. 5

Max. static inlet pressure

14

m

Outlet head must be
below bottom of cold
water tank and able
to pass a minimum
of 0.6 l/min of gravity
flow
