Non-Preferred Pump Location: The pump must be located with at least

0.5 metres flooded suction at all times.

If it is not possible to locate the pump in the preferred area due to site limitations

and it is necessary to position the unit in the loft, or in a position above the

secondary tapping that feeds the pump, then there is an increased risk of air

locks. This risk must be eliminated.

The following method will help to overcome the problem:

A “U” bend or downward loop in the supply pipe to the pump of 350 mm depth

before rising to the pump should ensure the cylinder vents its air up the

expansion pipe, not up the pump feed (Fig. 2 for Twins and Fig. 3 for Singles).

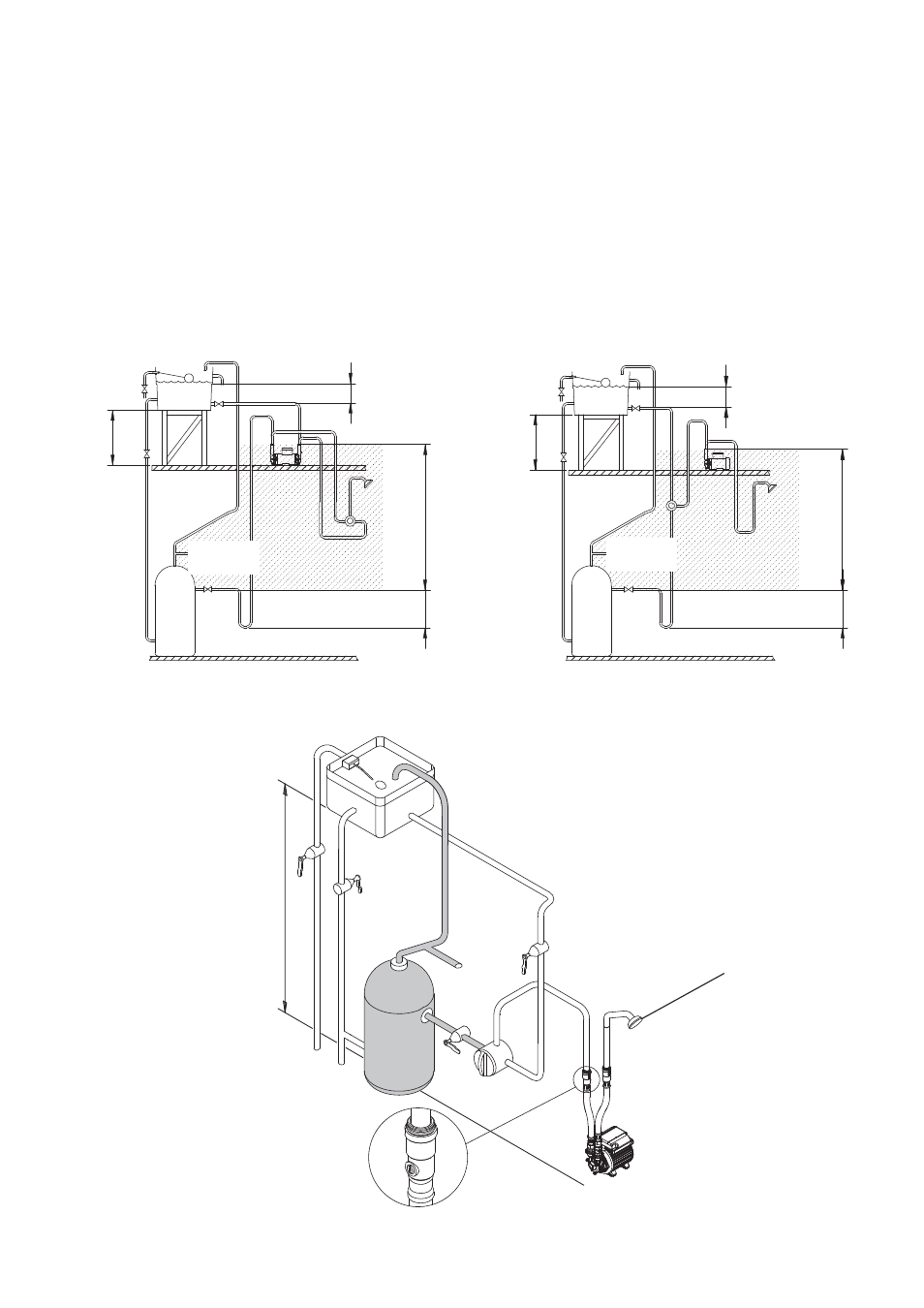

2 LOCATION - SINGLE PUMP

Positive Duty Single Pump System

Fig. 4

Outlet head must be
below bottom of cold
water tank and able
to pass a minimum
of 0.6 l/min of gravity
flow

Max. static inlet pressure

14

m

Max. inlet head

14

m

Min. inlet head

0.5

m

Max. inlet head

14

m

Min. inlet head

0.5

m

hot water
services

hot water
services

least preferred area

least preferred area

200

mm

min

200

mm

min

350

mm

min

350

mm

min

Fig. 2 (Twin Pump)

Fig. 3 (Single Pump)
