- 13 -

4.23

Supply Cord Replacement:

The supply cord and internal wiring within the terminal box are
routed and secured to ensure compliance with the electrical
standard EN 60335-1. It is essential that prior to any disturbance
of this internal wiring, all cable routing and securing details are
carefully noted to ensure re-assembly to the same factory pattern
is always maintained.

If the supply cord is to be changed or is damaged, it must be replaced with a

special cord assembly available from Stuart Turner or one of their approved

repairers.

On disassembly note the cord retention and routing system. Re-assemble to the

same

pattern.

For information on cable connection consult the wiring diagram and cable gland

fitting

instructions.

The wire which is coloured blue must be connected to the terminal which is

marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is

marked with the letter L or coloured red.

4.21

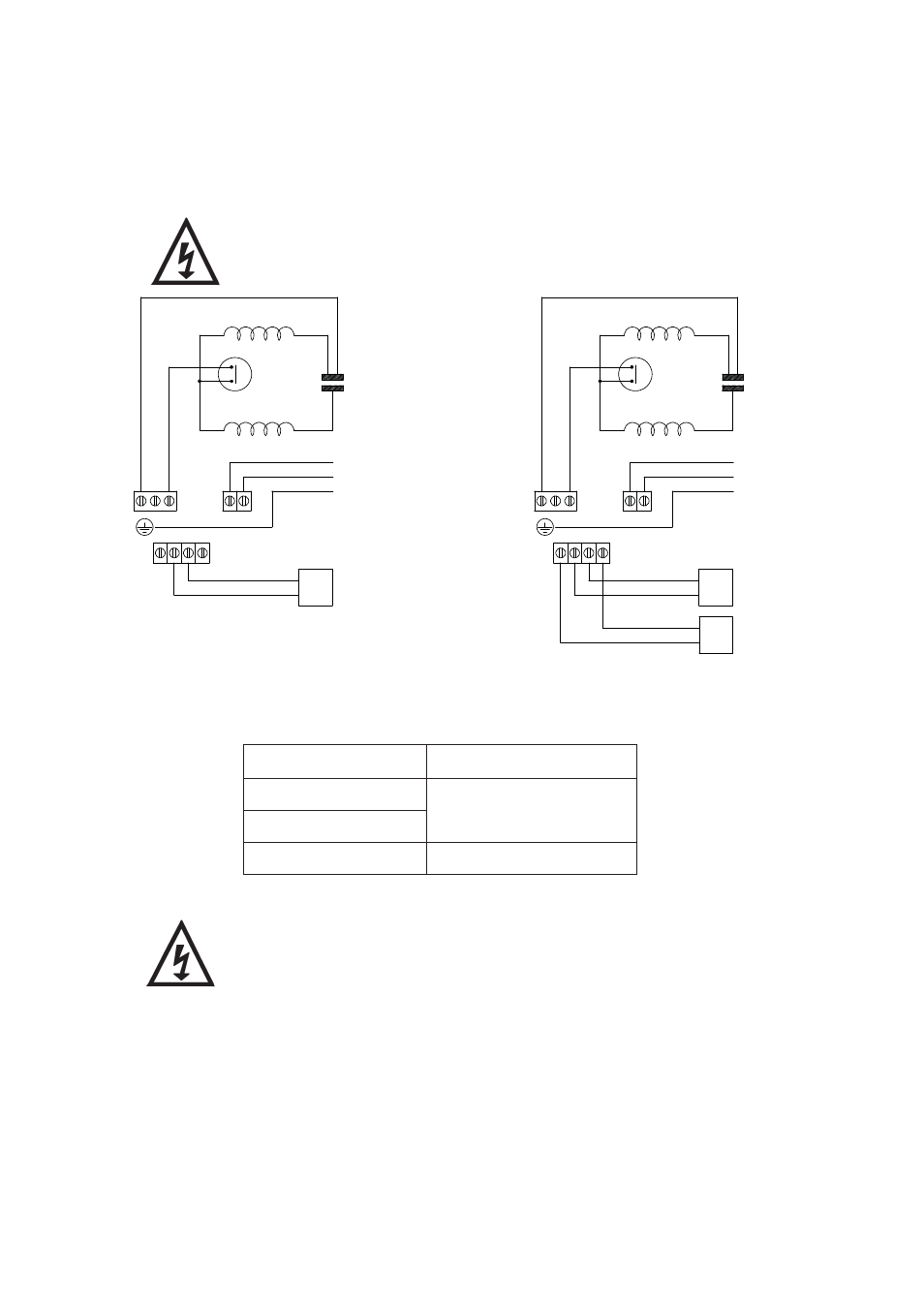

Wiring Diagrams:

Parallel wiring of two single pumps is not recommended.

Model

Fuse Size (AMPS)

S4.0 bar Twin

13

S4.5 bar Twin

All other models

5

4.22

Fuses: The following fuse size should be used with the appropriate pump:

MAIN WINDING

THERMOTRIP

CAPACITOR

START WINDING

FLOWSWITCH REED (S2)

LIN

K WIRE

(BLUE)

BROWN

BLACK

RED

GREEN/
YELLOW

BLUE

BROWN

L

M

A

N

N

S1 S2 S2 S1

L

E

N

FLOWSWITCH REED (S1)

230 VAC/1PH/50Hz
SUPPLY

MAIN WINDING

THERMOTRIP

CAPACITOR

START WINDING

FLOWSWITCH REED (S2)

LIN

K WIRE

(BLUE)

BROWN

BLACK

RED

GREEN/
YELLOW

BLUE

BROWN

L

M

A

N

N

S1 S2 S2 S1

L

E

N 230 VAC/1PH/50Hz

SUPPLY

Single Models
Fig. 12

Twin Models
Fig. 13
