3 installation and wiring> 3-18 – Yokogawa In-Situ Gas Analyzer TDLS200 User Manual
Page 31

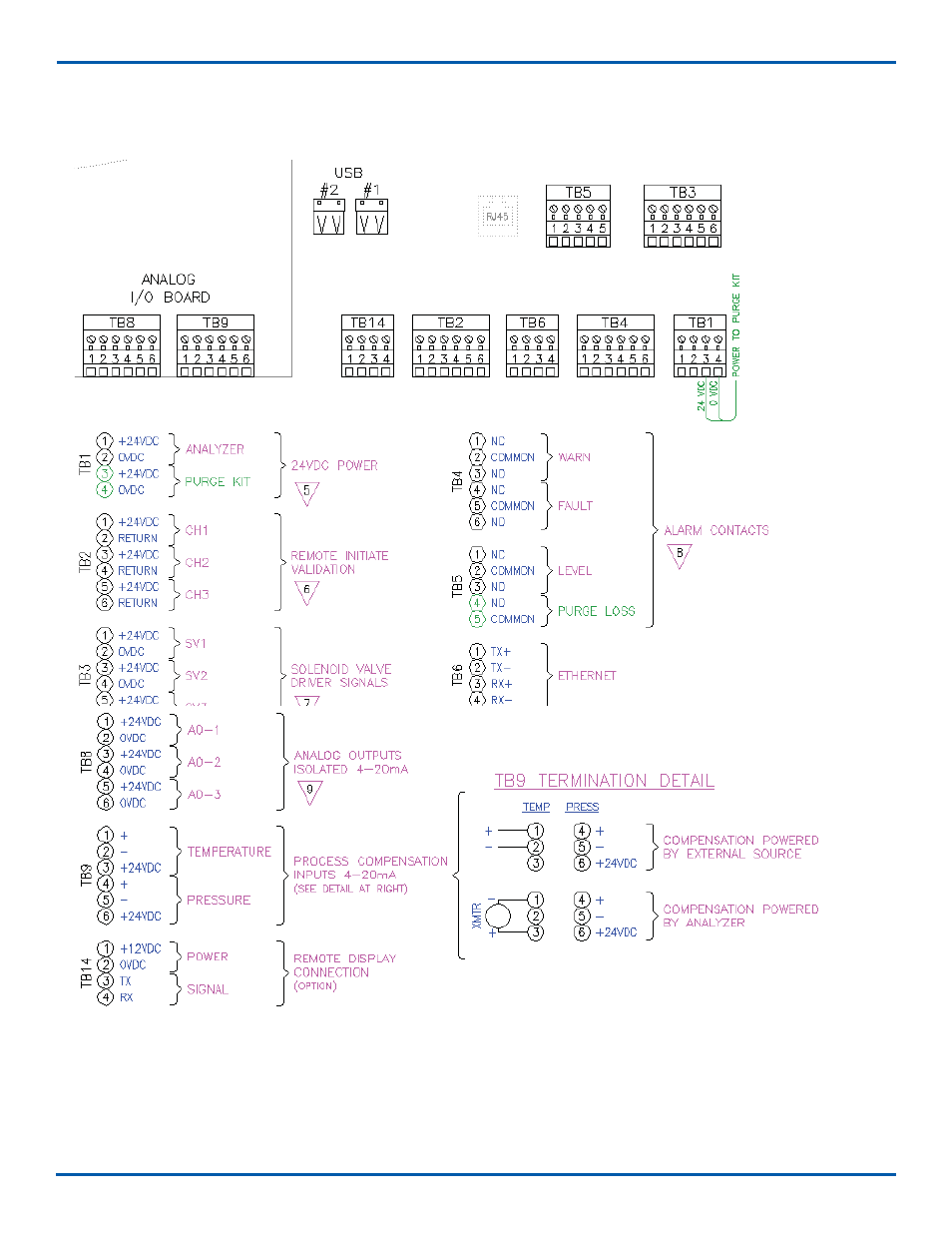

3.10.3 Launch Unit Terminations CE/ATEX/GP/Div2 – all units:
SEE FOLLOWING NOTES:
Please NOTE that ALL analog output signals from TB-8 are POWERED BY THE ANALYER!
Outputs from TB-9 can be confi gured for POWERED inputs or LOOP POWERED external transmitter!
PLEASE CHECK CAREFULLY BEFORE APPLYING POWER TO THE ANALYZER!
<3 INSTALLATION AND WIRING> 3-18
IM 11Y01B02-11E-A 5th Edition :June 5, 2012-00
