SaltDogg 1400550SS / -H Self-Contained Hopper Spreader - Manual (Page 12)

12
2
5
6
11
12
14
15
17
18
19
20
21
22
23
24
25
26
1
3
4
7
8
9
10
13
16

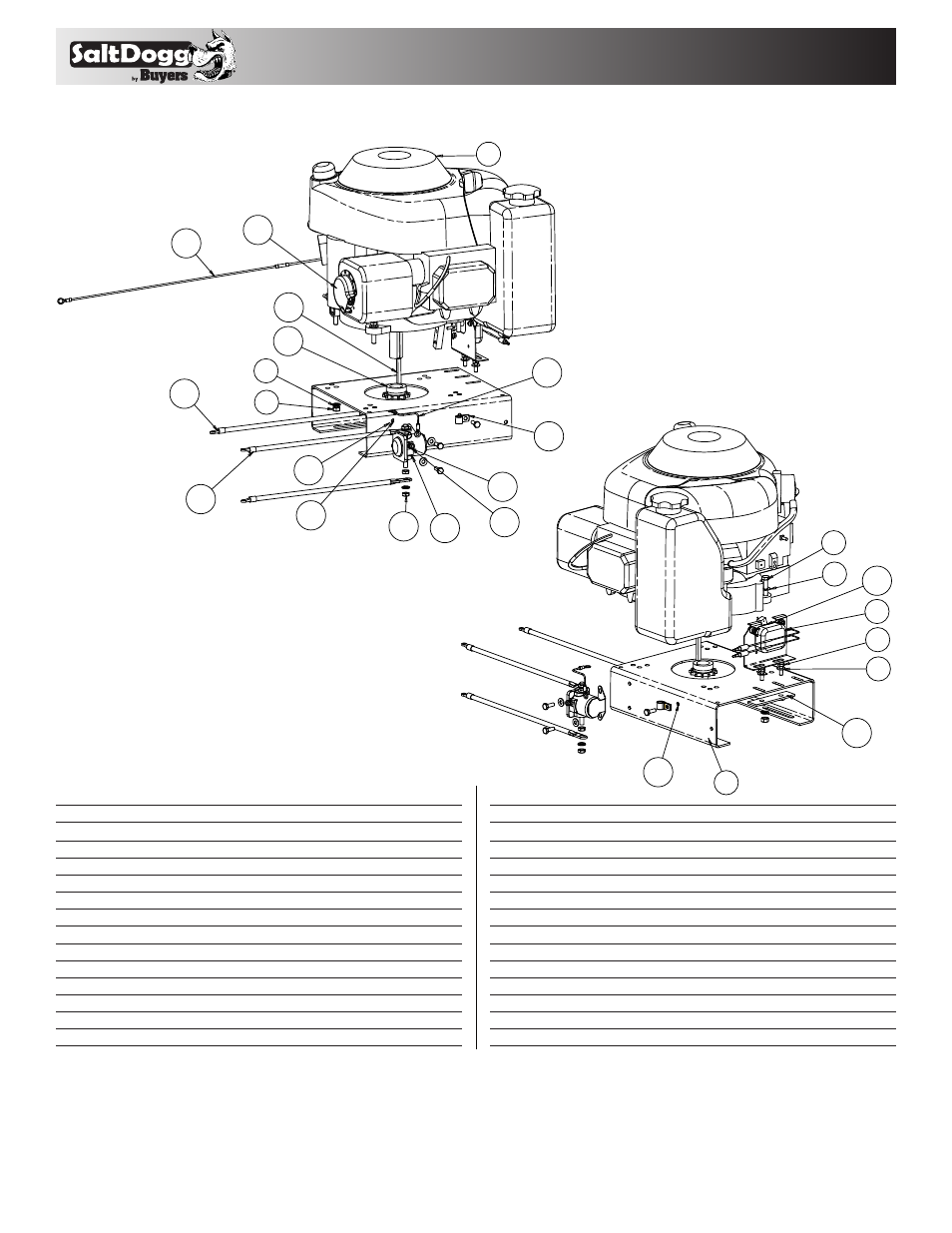

1 3008326 1 Stand, Engine Mount
2 3006887 1 Engine, 9 (10.5) HP Briggs, w/ Recoil & Fuel Tank
3 – 4 Washer, 5/16 SAE, ZN
4 – 4 Screw, HHC 5/16-18 x 1.5 Gr. 5, ZN
5 – 6 Washer, Spring Lock, 5/16 ZN
6 – 4 Nut, 5/16-18 Hex, ZN
7 3003231 1 Throttle Control
8 – 5 Screw, Cap 1/4-20 x 3/4 SST
9 – 4 Washer, Flat 1/4 SAE, ZN clear
10 1411911 1 Retainer, Throttle Motor Kit
11 KS402 1 Key, 1/4 x 1/4 x 2
12 1411915 1 Sprocket, Engine Drive
13 1411910 1 Throttle Pin, Assembly
ITEM PART NO. QTY. DESCRIPTION
Gasoline Engine Assembly
14 3006887A 1 Deflector, Exhaust (comes with engine)
15 4375 1 Clamp, Hose .4375, 9/32 ZN
16 – 1 Nut, Nylon Insert 1/4-20 ZN
17 1306070 1 Solenoid, Motor
18 3007679 1 Wire Harness Ground
19 – 2 Washer, 1/4" Spring Lock
20 – 2 Nut, Hex 1/4-20 ZN
21 – 4 Nut, Jam 5/16-24 ZN
22 3001379 2 Cable, SCH Battery 14" red
23 – 2 Nut, Hex 10-32 ZN yellow
24 – 1 Washer, #10 Split Lock, ZP
25 3001378 1 Cable, SCH Battery 14" black
26 3006922 1 Wire Assy., Voltage Regulator, 9HP B&S
ITEM PART NO. QTY. DESCRIPTION
