SaltDogg SCH/1400 Series Self-Contained Hopper Spreaders - Manual (Page 9)

Quality since 1946
9
1
2
3
4
5
6
7
9
10
8
11
12
13
14
15
16
17
18
19
20
21
22
1 3001306 1 CHUTE HOUSING SUBASSEMBLY-STD CS
1 3001405 1 CHUTE HOUSING SUBASSEMBLY-EXT CS
1 3002114 1 CHUTE HOUSING SUBASSEMBLY STD SST
1 3002120 1 CHUTE HOUSING SUBASSEMBLY EXT SST
2 FPC007800075 1 COTTER PIN, 5/64 X 3/4
3 1420014 1 CLEVIS SHEAR PIN, 1/4 X 2-1/2
4 3004611 1 SPINNER DISC 11.5 DIA. POLY
5 1420015 3 CONTROL ROD
6 FPC013000100 1 COTTER PIN, 1/8 X 1
7 4 H. HEAD CAP SCREW 3/8-16 X 3/4 GR5
8 4 HEX NUT 3/8-16
9 4 3/8 FLATWASHER
10 4 3/8 LOCKWASHER
11 1420016 3 HAIRPIN COTTER, 3/32 X 2
12 1420018 2 LYNCH PIN, 3/8 X 1-3/4
ItEM PARt NO. qtY. DESCRIPtION ItEM PARt NO. qtY. DESCRIPtION

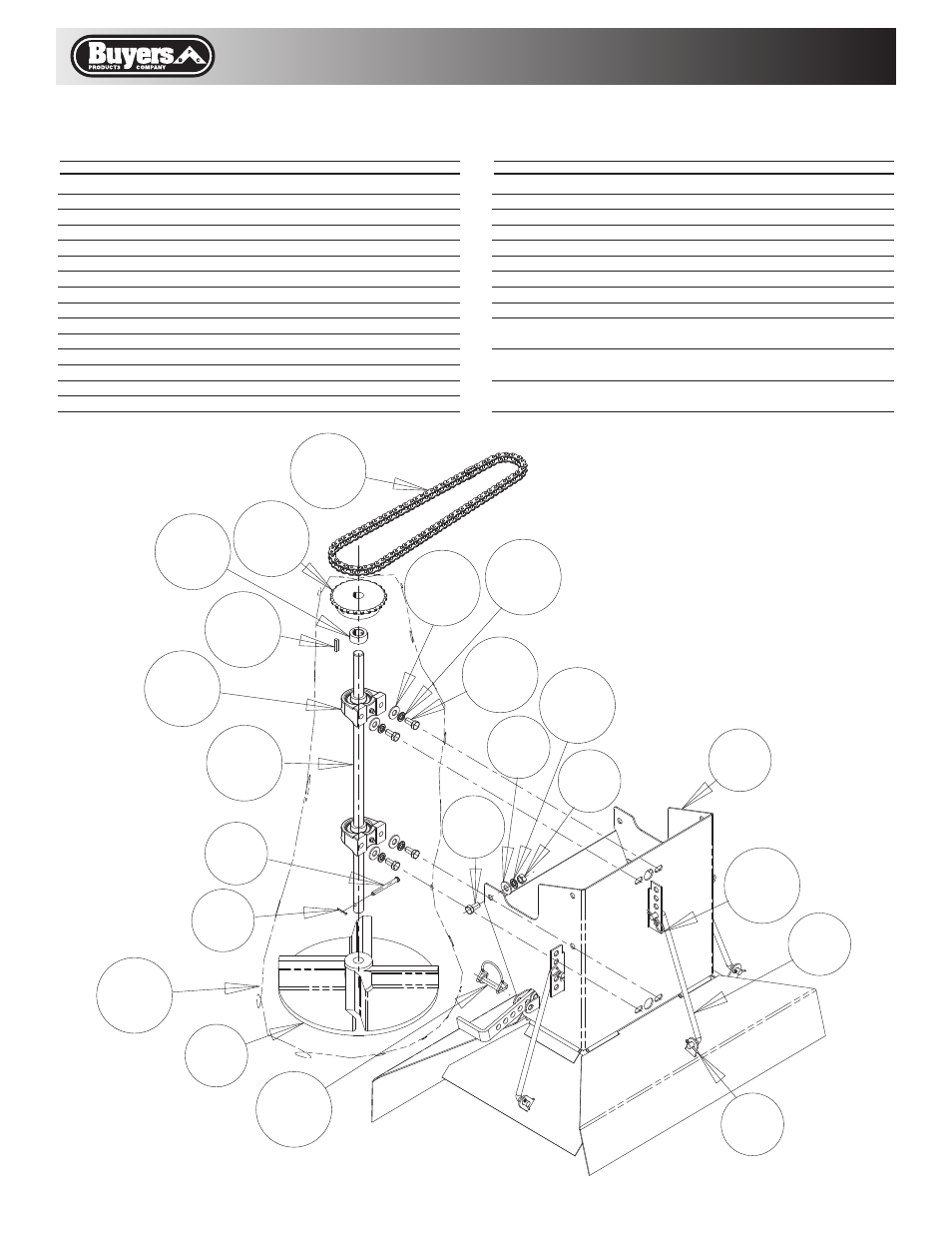

Repair Parts - Spinner/Chute Assembly
13 4 H. HEAD CAP SCREW, 3/8-16 X 3/4, GR5
14 4 3/8 FLATWASHER
15 4 3/8 LOCKWASHER
16 1420101 2 PILLOW BLOCK BEARING, 3/4”
17 1420150 1 SPINNER SHAFT-STD
17 142X150 1 SPINNER SHAFT-EXT
18 KS301 1 KEY, 3/16” SQUARE X 1”
19 1420004 1 SPROCKET, 24 TOOTH W/ SET SCREW
20 1410711 1 ROLLER CHAIN, #40, W/ 80 LINKS
21 3002225 1 COLLAR, .75 DIA LOCK WITH TWO SET
SCREWS,3/16 KEYWAY
22 141055K 1 KIT,STD LG , SHAFT, BEARING,SPROCKET,
SPINNER DISK, & HDW
22 141065K 1 KIT EXT LG,SHAFT, BEARING, SPROCKET,
SPINNER DISK, & HDW
