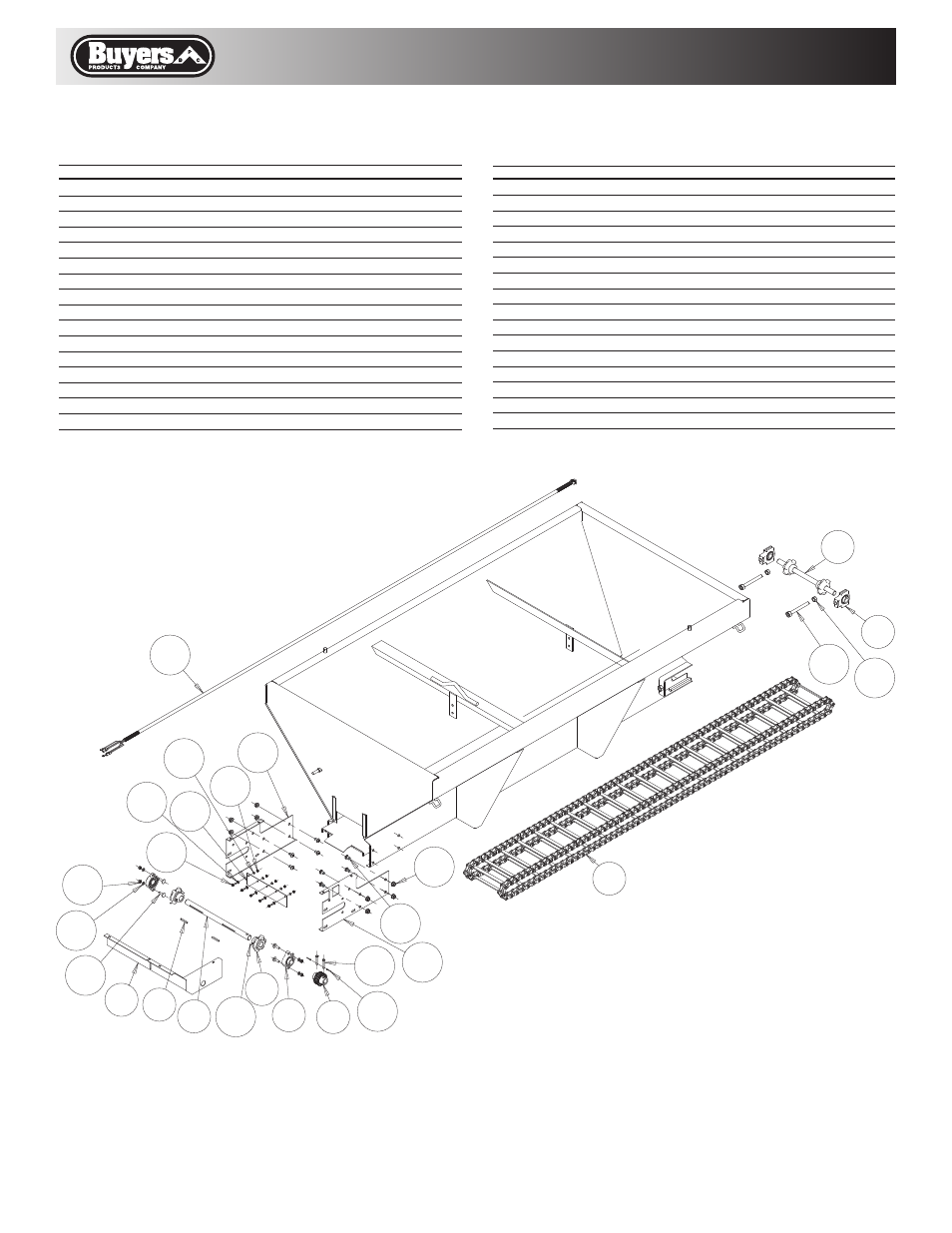

Repair Parts - Drive Subassembly
14 1410803 2 Clevis Pin, 3/8” X 2”
15 FPC013000100 2 Cotter Pin, 1/8” X 1”
16 141050W 2 Weldment, Take-up Bolt
17 5 Screw, Hhc, 1/4-20 X 1” GR 5
18 5 Nut, Hex 1/4-20 GR 5
19 5 Washer, Lock, 1/4”
20 2 Nut, Hex, 5/8-11 GR 5
21 1410241 1 Wiper Belt, Hopper
22 5 Washer, Flat, 1/4”
23 1410708 1 Wire Harness For Hopper Spreader
24 3002270B 1 Sill Extention R.H. 96” Hopper
24 3002270SS 1 Sill Extention R.H. SST
25 3002269B 1 Sill Extention L.H. 96” Hopper
25 3002269SS 1 Sill Extention L.H. SST
26 8 Screw, Btn HD Soc Cap 1/2-13 X 1” SST
27 8 Nut, Hx Flng 1/2-13 SST
