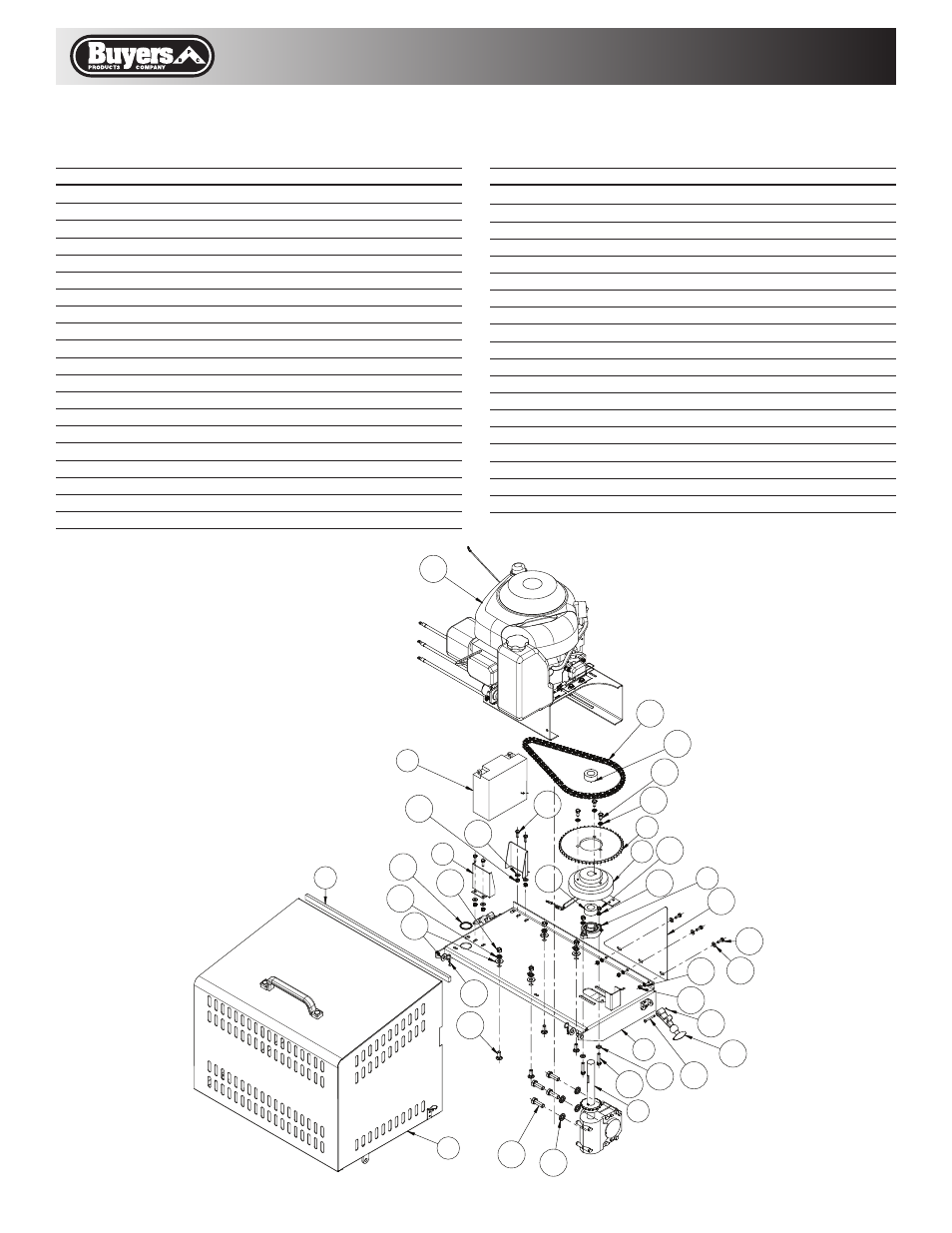

Repair Parts - Drive Subassembly
1 3006861 1 Engine Deck Weldment SST
1 3007189 1 Engine Deck Weldment Carbon Steel
2 1410720 1 Gearbox Assembly
- 1410702 1 Sprocket, 16 Tooth
3 1401150 1 Clutch Assembly
4 1411000 1 Bearing, 2-Hole Flanged, 1" ID
5 1411800 1 Sprocket, Clutch 52 Tooth
6 3006856 1 Engine Shroud Weldment SST
6 3007184 1 Engine Shroud Weldment Carbon Steel
7 1410717 1 Battery, 12 VDC
8 3001363 2 Bracket, Battery Mount
9 1410216 - Sponge, Rubber
10 - 4 Screw, 1/2-13 x 1 Gr 5
11 - 4 Washer, Lock 1/2"
12 1411500 2 Collar, 1" ID
13 - 2 Screw, 5/16-18 x 1-1/2 Gr 5
14 - 2 Washer, Flat 5/16 SAE
15 3006917 1 Engine, Assembly 10½ HP Briggs & Stratton
15 3005735 1 Engine, Assembly 10 HP Tecumseh
16 3002390 2 Pin, Pivot 3/16 x 1-5/8"
ItEM PARt NO. qtY. DESCRIPtION
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21 22
22
23
24
25
26
27
27
28
28
29
29 30
31
32
33
17 - 3 Screw, 5/16 - 18 x 5/8"
18 - 4 Bolt, Carriage 3/8-16 x 1"
19 - 6 Washer, Flat 3/8 USS
20 - 4 Washer, Lock 3/8"
21 - 4 Nut, Hex 3/8-16
22 - 5 Washer, Lock 5/16"
23 - 3 Nut, Hex 5/16-18
24 3002113 1 Guard, Engine Base SST
24 3001381 1 Guard, Engine Base Carbon Steel
25 3002398 2 Strap, Rubber Latch Carbon Steel Spreaders
25 3000281 2 Strap, Rubber Latch SST Spreaders
26 3002392 2 Cotter Pin 1/16 dia. x 1/2" SST
27 - 7 Screw, 1/4-20 x 3/4 Gr 5
28 - 7 Nut, Hex 1/4-20
29 - 7 Washer, Flat 1/4" SAE
30 - 7 Washer, Lock 1/4"
31 1412300 1 Chain, #40 Roller, 78 Pitches
32 1413200 1 Grommet, 1-1/2' Rubber
33 - 2 Pin. Hair Cotter 3/32 x 2 SST
ItEM PARt NO. qtY. DESCRIPtION
