SHPE3000 SALTDOGG ® SPREADER
WARRANTY INFORMATION
This warranty replaces all previous warranties and no employee of this
company is authorized to extend additional warranties, or agreements, or
implications not explicitly covered herein.
Buyers Products Company warrants all parts of the product to be free from
defects in material and workmanship for a period of one (1) year. Parts must be
properly installed and used under normal conditions. Normal wear is excluded.
Any part, which has been altered, including modifications, misuse, accident, or
lack of maintenance will not be considered under this warranty.
The sole responsibility of Buyers Products Company under this warranty is
limited to repairing or replacing any part(s), which are returned, prepaid,
30 days after such defect is discovered, and returned part(s) are found to be
defective by Buyers Products Company.
Authorization from Buyers Products Company must be obtained before
returning any part. The following information must accompany defective parts
returned to Buyers Products Company: RMA #, spreader model, serial number,
date installed, and distributor from whom purchased.
Buyers Products Company shall not be liable for damage arising out of
failure of any unit to operate properly, or failure, or delay in work, or for any
consequential damages. No charges for transportation or labor performed on
any part will be allowed under this warranty.

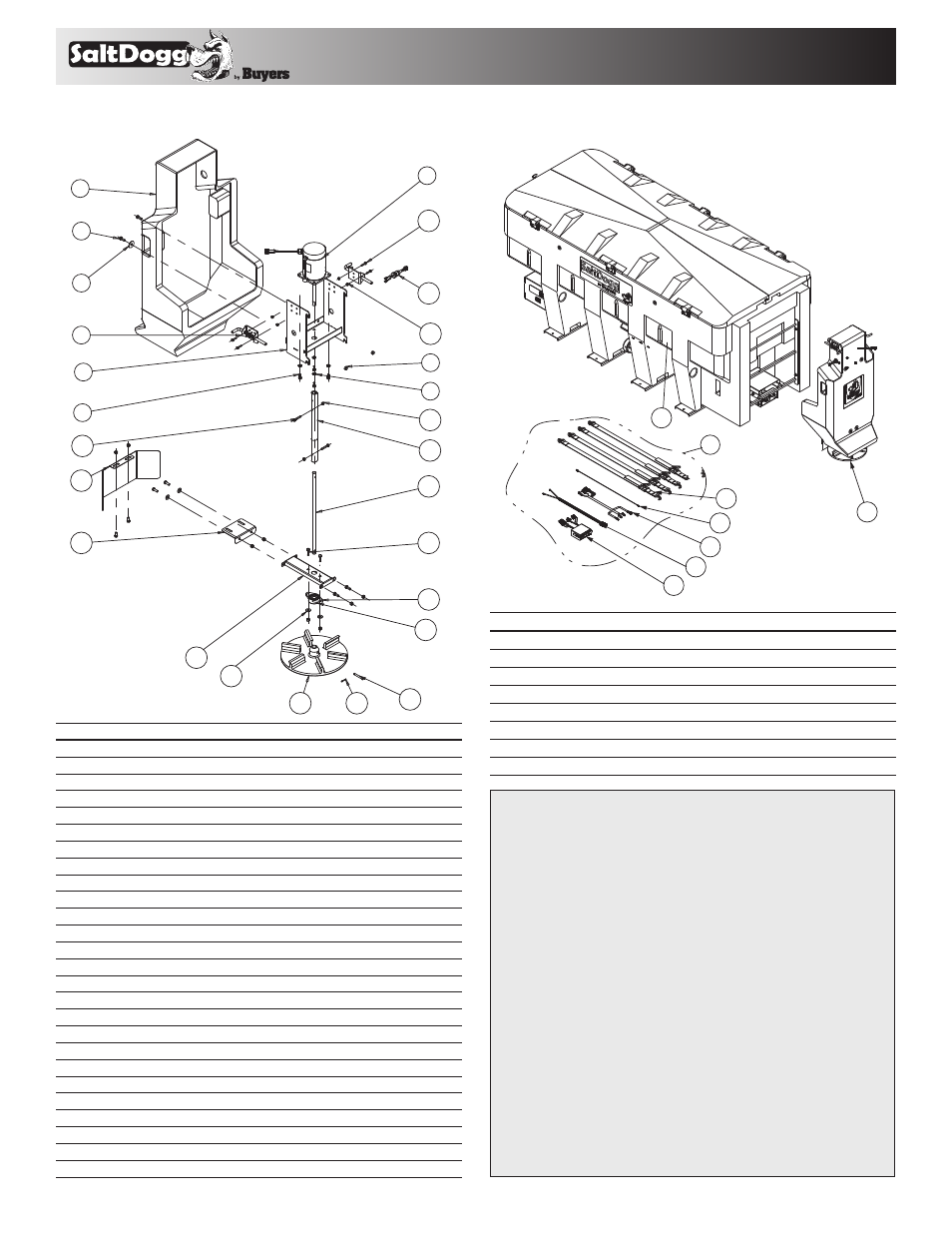

Repair Parts- Chute
Bill of Materials
ITEM PART NO. QTY. DESCRIPTION
1 3014078 1 MOTOR 12 VDC, .5 HP SPINNER
2 3017448 1 MOTOR FRAME, CHUTE
3 3017356 4 WASHER, EXTERNAL TOOTH LOCK 3/8 SS
4 FCS038016075SS 6 SCREW, HHC-3/8-16 X 3/4 SST
5 3015953 1 CHUTE, POLY ADJUSTABLE
6 3007115 2 WASHER, FLAT 3/8 X 1.5 X.048 SST
7 FNE038016044SS 10 NUT, NYLOCK 3/8-16 X 7/16 SST
8 FCS038016100SS
6 SCREW, HHC 3/8-16 X 1 304 SST
9 3009988 2 LATCH, SPRING
10 FCS025020100SS 4 SCREW, CAP HEX HD 1/4-20 X 1 SST
11 FNE025020031SS 4 NUT, NYLON INSERT 1/4-20 SST
12 3006753 1 WIRE HARNESS, CHUTE
13 3017974 1 COUPLER SHAFT ADJUSTABLE
14 3018106 1 SHAFT CHUTE ADJUSTABLE
15 FCS031018175SS 2 SCREW, HHC 5/16-18 X 1 3/4 SS
16 FNE031018034SS 2 NUT, NYLOCK 5/16-18 SS
17 3018286 1 BRACKET, SPINNER BEARING
18 2F12SCR 1 BEARING, 2-HOLE FLANGED .75 ID
19 FCS038016125SS 2 SCREW, HHC-3/8-16 X 1.25 SST
20 FWF038100007SS 4 WASHER, FLAT 3/8 USS SST
21 3017443 1 BRACKET, SHIELD CHUTE
22 3017444 1 SHIELD, CHUTE
23 455 1 GREASE FITTING 1/4-28 TAPERED
24 3012393 1 SPINNER, 14" POLY CW
25 3007113 1 PIN, CLEVIS, 5/16 X 2-1/2, .141 HOLE ZN
26 FPC013000100 1 COTTER PIN, 1/8 X 1, ZINC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Repair Parts-Spreader Assembly
ITEM PART NO. QTY. DESCRIPTION
1 3017357 1 HOPPER AUGER ASSEMBLY SHPE3000
2 3015954 1 CHUTE ASSEMBLY
3 3017939 1 HARDWARE KIT SHPE3000
4 3016934 1 CONTROLLER SPEED 12 VDC, 60 AMP
5 3016943 1 POWER CORD
6 3016944 1 WIRE HARNESS MAIN
7 0203700 1 WIRE ASSEMBLY, 36 LONG
8 1496505 1 HOLD DOWN KIT, SPREADER (4 STRAPS)
1
4
5
6
7
8
3
2
