9. NOTE: DETERMINE MOUNTING CONFIGURATION OF WINCH (R.H. or L.H. MOUNTED)
BEFORE ATTACHING FRONT AND REAR FRAME ASSEMBLY TO WINCH, TO ASSURE
PARTS ARE MOUNTED TO PROPER SIDE, REFER TO WINCH MOUNTING CONFIGURA-
TIONS, STEP 15 PAGE 13.

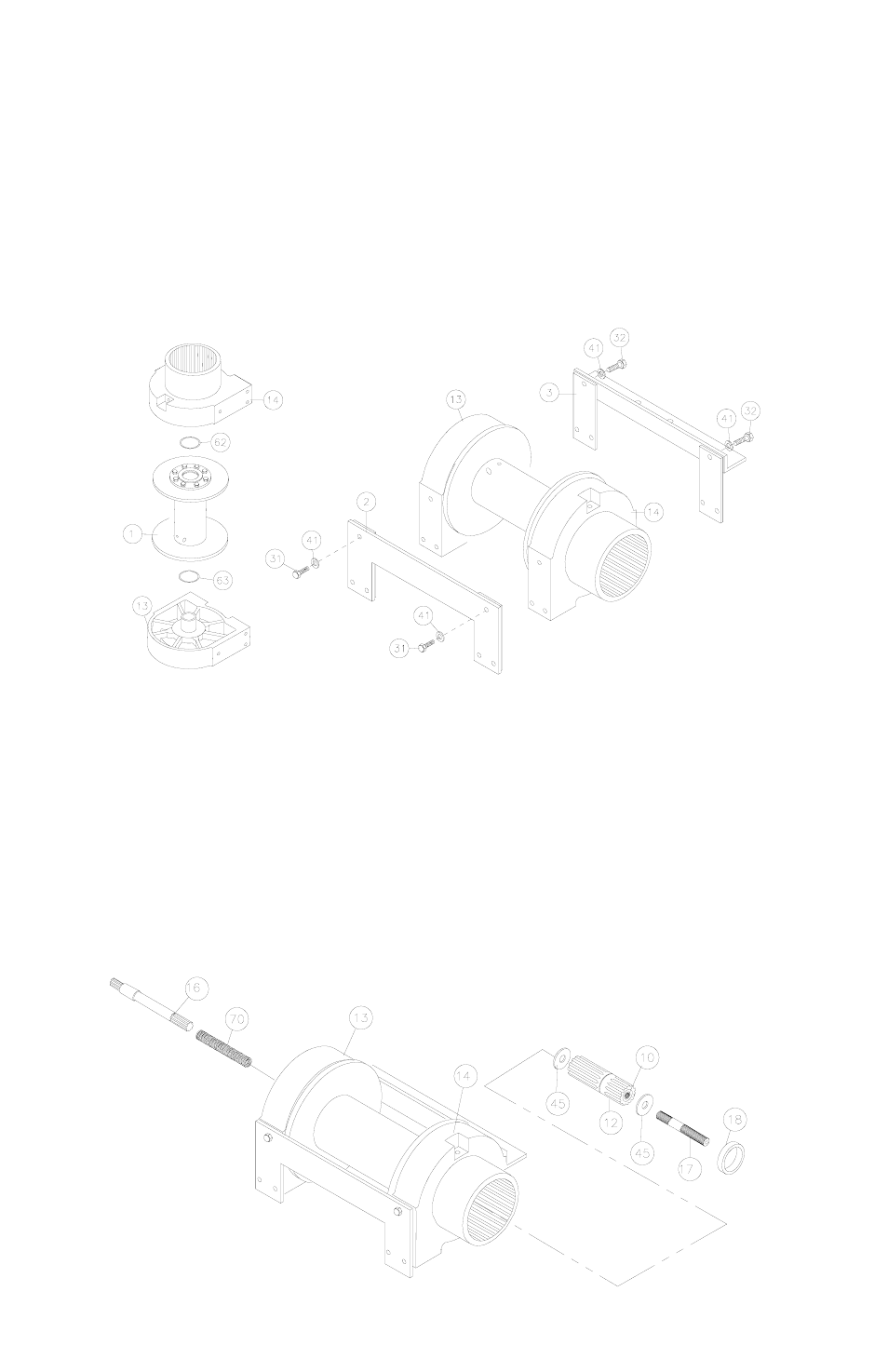

Seat well-oiled quad-rings (item #62 & #63) into groove of bushing in each end of drum
assembly (item #1), as shown. Carefully set drum assembly (item #1) down over motor
end bearing (item #13). Lift gear-housing end bearing (item #14) and set into place on
drum assembly. Install front and rear frame assembly (items #2 & #3) using capscrews
and lockwashers shown below. Tighten (4) capscrews securely, check rotation of cable
drum.
10. Liberally apply grease to shoulder of input shaft (item #16). Place spring (item #70) over
longer splined end of shaft. Use grease to hold spring in place against shoulder of shaft.
Place spring and shaft through motor end bearing (item #13) and drum until shaft extends
through bushing (item #23) in end bearing (item #14). Place clutch washer (item #45)
over splined end of shaft and against spring. Place end of output coupling assembly (item
#12), with longest spline inward, through end bearing bushing (item #23) and mesh
shaft coupling spline with splined end of shaft. Place short splined end of shifter shaft
(item #17) through washer (item #45) and into shaft coupling (item #10), meshing
splines of shifter shaft with splines in shaft coupling.
